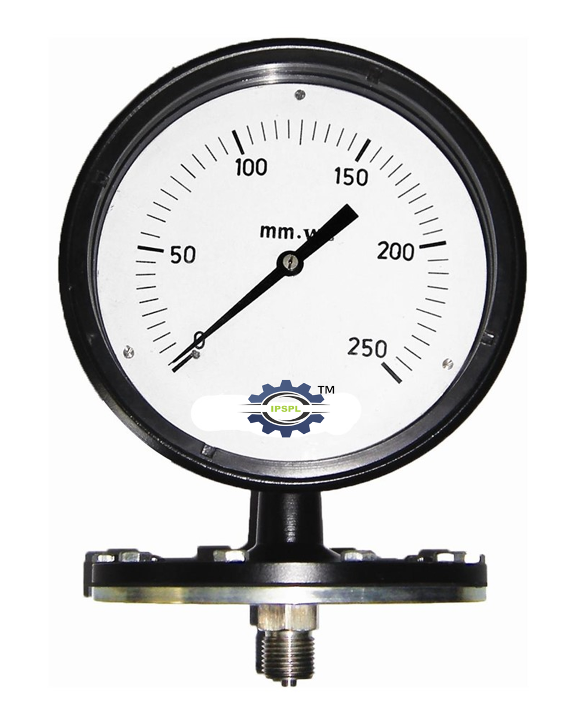

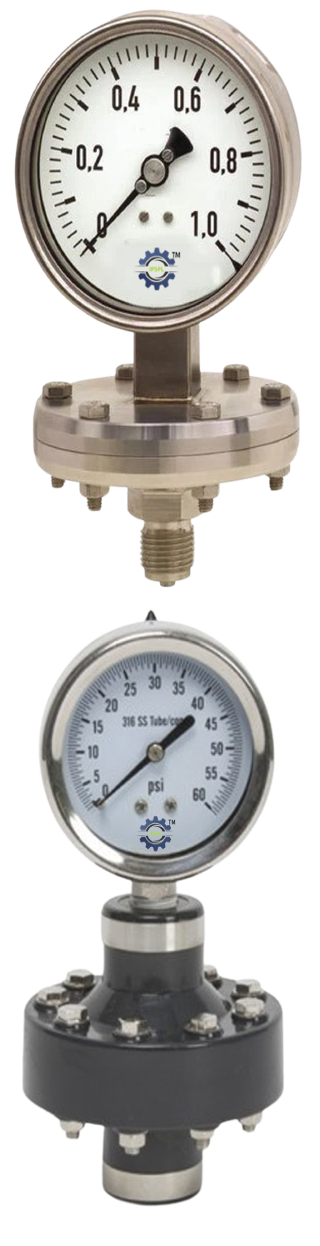

IPS-DG-01 - MILD STEEL LOW & HIGH DIAPHRAGM SEALED PRESSURE GAUGES
|
Pressure Ranges |
HP : -1 to 0 Kg/cm² & o to 25 Kg/cm² LP : -6000 mmWC to 0 ^ 0 to 6000 mmWC |
|
Top Chamber |
MS Steel (Painted) |
|
Bottom Chamber |
AISI 316 SS |
|
Diaphragm |
Spring Steel with PTFE protection for HP Ranges & AISI 316 SS for LP ranges |
|
Process Connection |
1/2" - BSP / NPT- (M) |
|
Pressure Gauge Case & Bezel |
MS Case (Black Painted) |
|
Dial Size |
100 mm or 150 mm |
Download
click here to download the datasheet

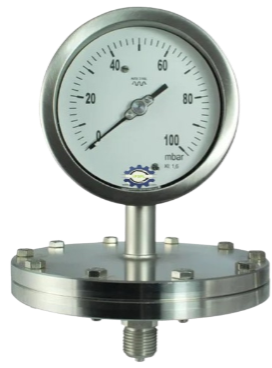

IPS-DG-02 - ALL STAINLESS STEEL LOW & HIGH DIAPHRAGM SEALED PRESSURE GAUGES
|
Pressure Ranges |
HP : -1 to 0 Kg/cm² & o to 25 Kg/cm² LP : -6000 mmWC to 0 ^ 0 to 6000 mmWC |
|
Top Chamber |
AISI 304 SS |
|
Bottom Chamber |
AISI 316 SS |
|
Diaphragm |
AISI 316L SS |
|
Process Connection |
1/2" - BSP / NPT- (M) |
|
Pressure Gauge Case & Bezel |
AISI 304 SS |
|
Dial Size |
100 mm or 150 mm |
Download
click here to download the datasheet

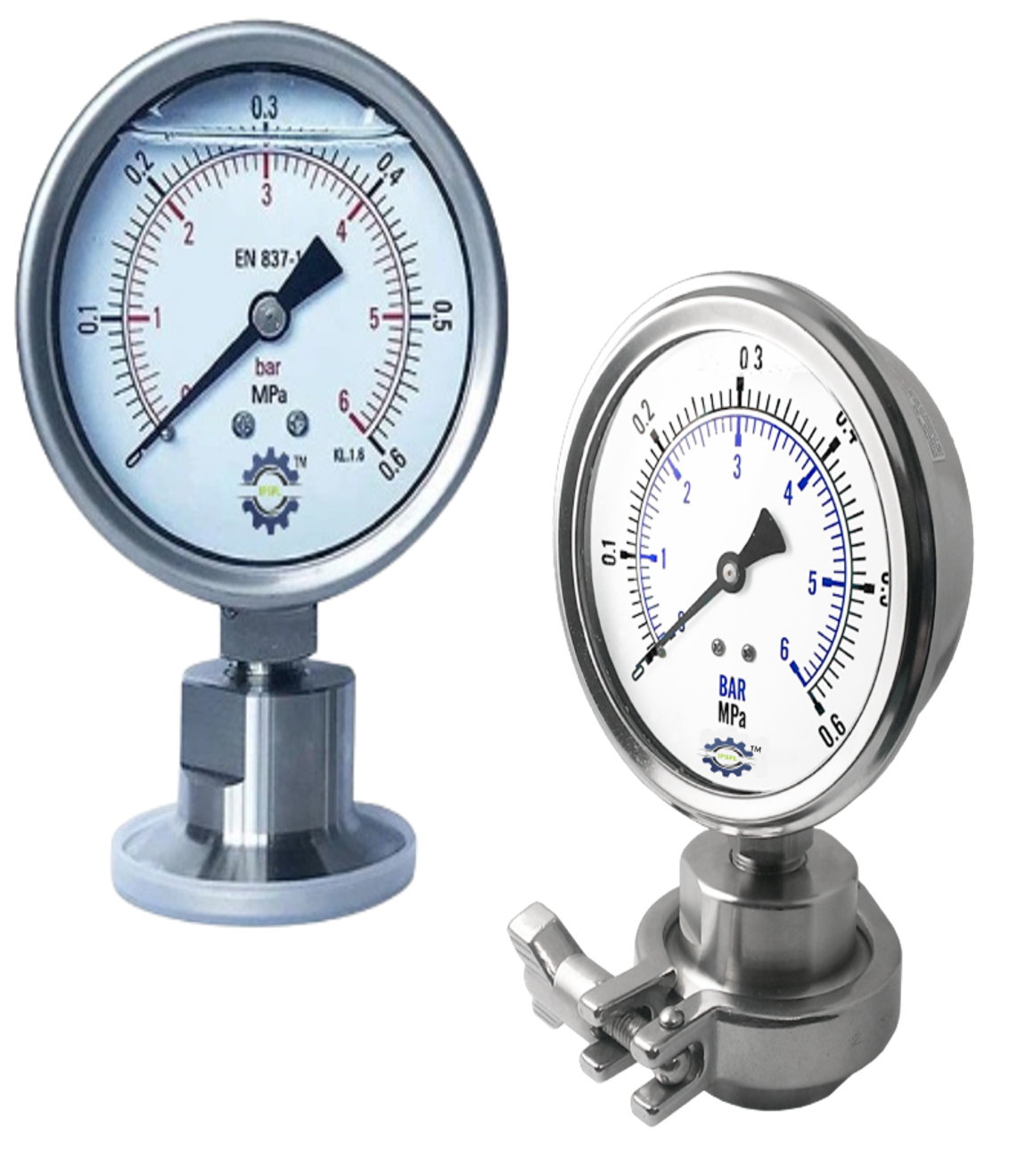

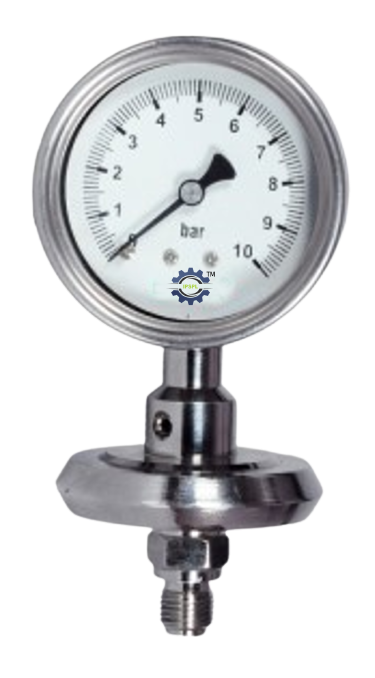

IPS-DG-03 - ALL STAINLESS STEEL SANITARY DIAPHRAGM TYPE PRESSURE GAUGE
|
Pressure Ranges |
1 - 0 to 0- 2.5 Bar (2"), 0-4 to 0-10(1"/1.5"), 0-25 to 0-40(1/2") |
|
Top Chamber |
SS316L -1" (DN25) ,1.5" (DN40), 2" (DN50) - Triclamp Type |
|
Instrument Connection |
1/4" / 1/2" - BSP / NPT (F) |
|
Diaphragm |
SS316L |
|
Sealing Gasket |
Silicon |
|
Filling Liquid |
Food Grade Oil |
|
Option |
Suitable Size Triclamp, Bottom Matting Part & Gasket |
|
Pressure Gauge Size |
50 mm & 63 mm |
|
Pressure Gauge Case & Bezel |
AISI 304 SS |
Download
click here to download the datasheet

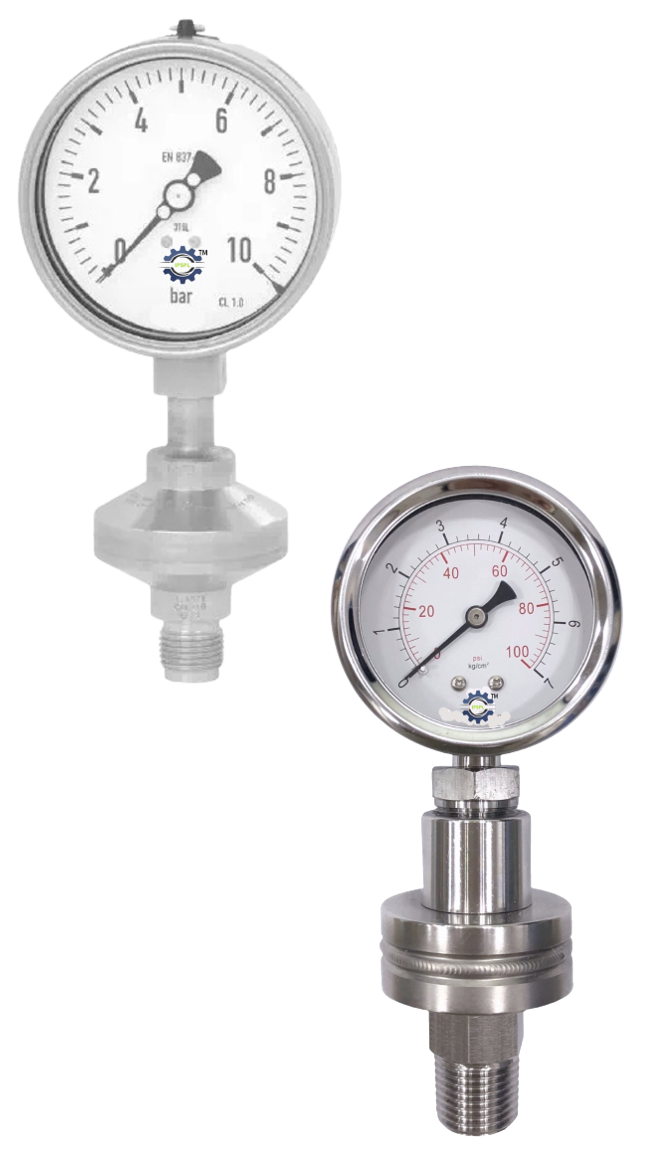

IPS-DG-04 - ALL STAINLESS STEEL DIRECT COUPLED DIAPHRAGM SEALED PRESSURE GAUGES
|
Pressure Ranges |
S06 = -1 to 0 kg/cm² & 0 to 70 kg/cm² (Standard) S07 = 100 kg/cm² to 400 kg/cm² |
|
Process Temperature |
- 40 °C to 200 °C or as per fill fluid |
|
Instrument Connection |
1/4” BSP (F) |
|
Process Connection |
1/4” BSP (M) |
|
Pressure Gauge Case & Bezel |
AISI 304 SS |
|
Dial Size |
100 mm or 150 mm |
|
Diaphragm |
AISI 316L SS |
|
Top Chamber |
AISI 304 SS |
|
Nuts / Bolts |
AISI 304 SS |
|
Sealing Gasket |
PTFE |
|
Filling Fluid |
Silicon Oil - DC 200 |
Download
click here to download the datasheet
IPS-DG-05 - ALL STAINLESS STEEL COMPACT DIRECT COUPLED DIAPHRAGM SEALED PRESSURE GAUGES
|
Pressure Ranges |
1 kg/cm² to 21 kg/cm² |
|
Process Temperature |
- 40 °C to 200 °C or as per fill fluid |
|
Instrument Connection |
½” BSP (F) |
|
Process Connection |
½” BSP (M) |
|
Pressure Gauge Case & Bezel |
AISI 304 SS |
|
Dial Size |
50 mm, 63 mm & 100 mm |
|
Diaphragm |
AISI 316L SS |
|
Top Chamber |
AISI 304 SS |
|
Nuts / Bolts |
AISI 304 SS |
|
Sealing Gasket |
PTFE |
|
Filling Fluid |
Silicon Oil - DC 200 |
Download
click here to download the datasheet

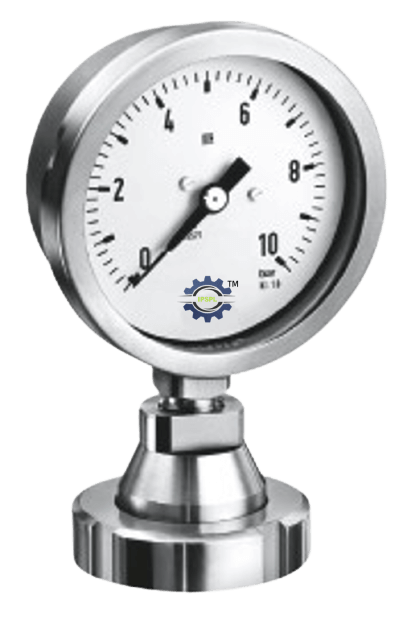

IPS-DG-06 - ALL STAINLESS STEEL FLUSH DIAPHRAGM SEALED PRESSURE GAUGES WITH NUT
|
Pressure Ranges |
Refer range table with Nominal Sizes |
|
Process Temperature |
10°C to 150°C or as per fill fluid |
|
Instrument Connection |
½” BSP (F) |
|
Process Connection |
As per DIN 11851, SMS, RJT, IDF |
|
Pressure Gauge Case & Bezel |
AISI 304 SS |
|
Dial Size |
50 mm, 63 mm, 100 mm & 150 mm |
|
Diaphragm |
AISI 316L SS |
|
Unit Nut |
AISI 316 SS |
|
Body |
AISI 316 SS |
|
Mounting |
Direct (Without capillary) |
|
Filling Fluid |
Glycerin |
Download
click here to download the datasheet
IPS-DG-07 - ALL STAINLESS STEEL HEAVY DUTY DIAPHRAGM SEALED PRESSURE GAUGES
|
Pressure Ranges |
S11 = -1 kg/cm² to 0 & 0 to 4 kg/cm² (Standard) S12 = 6 kg/cm² to 70 kg/cm² S13 = 100 kg/cm² to 400 kg/cm² S14 = 250 kg/cm² to 600 kg/cm² |
|
Process Temperature |
-40 °C to 200 °C or as per fil |
|
Instrument Connection |
½” BSP (F) ¼” BSP (F) for type S14 |
|
Process Connection |
½” BSP(M) ¼” NSP (M) for type S14 |
|
Pressure Gauge Case & Bezel |
AISI 304 SS |
|
Dial Size |
63 mm, 100 mm & 150 mm |
|
Diaphragm |
AISI 316L SS |
|
Mounting |
Direct (Without capillary) |
|
Filling Fluid |
Silicon Oil DC 200 |
Download
click here to download the datasheet

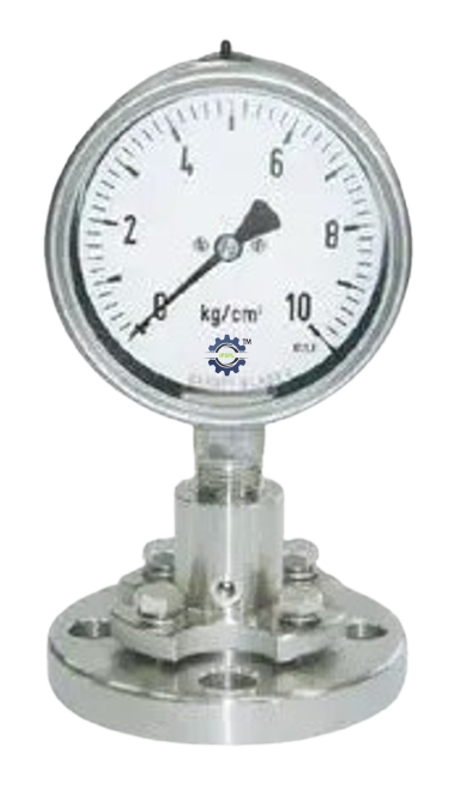

IPS-DG-08 - ALL STAINLESS STEEL I-SECTION DIAPHRAGM SEALED PRESSURE GAUGES
|
Pressure Ranges |
S21= -1 to 0 kg/cm² & 0 to 70 kg/cm²*(Standard) S22 = 100 kg/cm² to 400 kg/cm²* S23= -1 to 0 kg/cm² & 0 to 70 kg/cm²* |
|
Process Temperature |
Max. 150 °C for PTFE lined - 40 °C to 200 °C for without PTFE lined |
|
Instrument Connection |
½” BSP (F) |
|
Process Connection |
Flange (as per DIN/BS/ANSI/JIS) Finish 125 - 250 AARH |
|
Pressure Gauge Case & Bezel |
AISI 304 SS |
|
Dial Size |
63 mm, 100 mm & 150 mm |
|
Diaphragm |
AISI 316L SS |
|
Top Chamber |
AISI 304 SS |
|
Bottom Chamber |
AISI 316 SS Flange (as per DIN/BS/ANSI/JIS) |
|
Nut, Bolts & Slip Ring (Cup Type) |
Steel (Plated) |
|
Filling Fluid |
Silicon Oil - DC 200 |
|
Sealing Gasket |
PTFE |
|
Mounting |
Direct (Without Capillary) |
Download
click here to download the datasheet

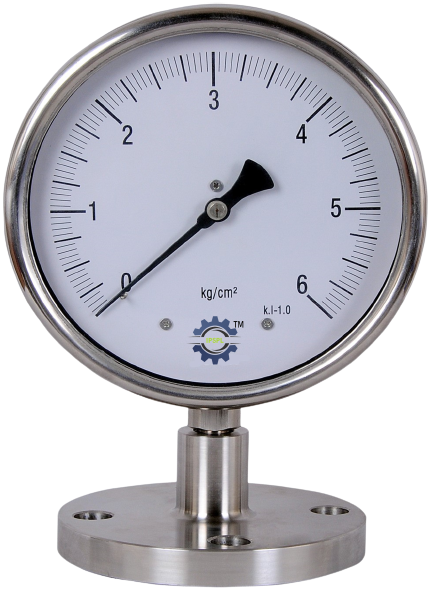

IPS-DG-09 - ALL STAINLESS STEEL DIRECT FLANGED FLUSHED DIAPHRAGM SEALED PRESSURE GAUGE
|
Pressure Ranges |
-1 kg/cm² 0 & 0 to 250 kg/cm²* |
|
Process Temperature |
-40°C to 200°C or as per fill fluid |
|
Instrument Connection |
½” BSP (F) |
|
Process Connection |
Flange( As per DIN/BS/ANSI/JIS), 40 NB(1½”) & above |
|
Pressure Gauge Case & Bezel |
AISI 304 SS |
|
Dial Size |
63 mm, 100 mm & 150 mm |
|
Diaphragm |
AISI 316L SS |
|
Flange Finish |
125-250 AARH |
|
Flange |
AISI 316 SS |
|
Filling Fluid |
Silicon Oil - DC 200 |
|
Sealing Gasket |
PTFE |
Download
click here to download the datasheet

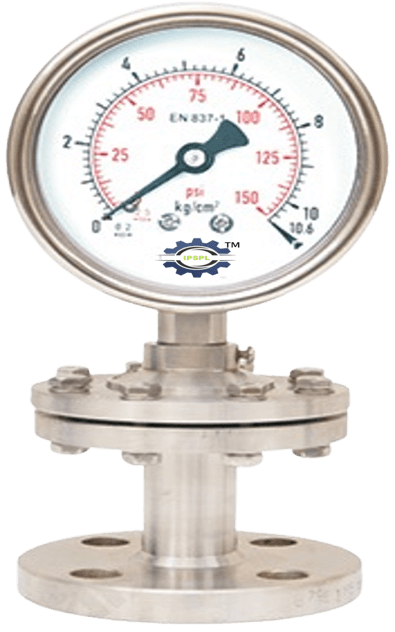

IPS-DG-10 - ALL STAINLESS STEEL DIRECT FLANGED INSERT TYPE DIAPHRAGM SEALED PRESSURE GAUGE
|
Pressure Ranges |
S26 = -1 to 0 kg/cm² & 0 to 250 kg/cm² (Non PTFE Lined)*(Standard) S27 = -1 to 0 kg/cm² & 0 to 40 kg/cm² (PTFE Lined)* |
|
Process Temperature |
Max. 150 °C for PTFE lined - 40 °C to 200 °C for without PTFE lined |
|
Instrument Connection |
½” BSP (F) |
|
Process Connection |
Flange( As per DIN/BS/ANSI/JIS), 40 NB(11/2”) & above |
|
Pressure Gauge Case & Bezel |
AISI 304 SS |
|
Dial Size |
63 mm, 100 mm & 150 mm |
|
Diaphragm |
AISI 316L SS |
|
Flange Finish |
125-250 AARH |
|
Top Chamber |
AISI 304 SS |
|
Filling Fluid |
Silicon Oil - DC 200 |
|
Flange |
AISI 316 SS |
Download
click here to download the datasheet

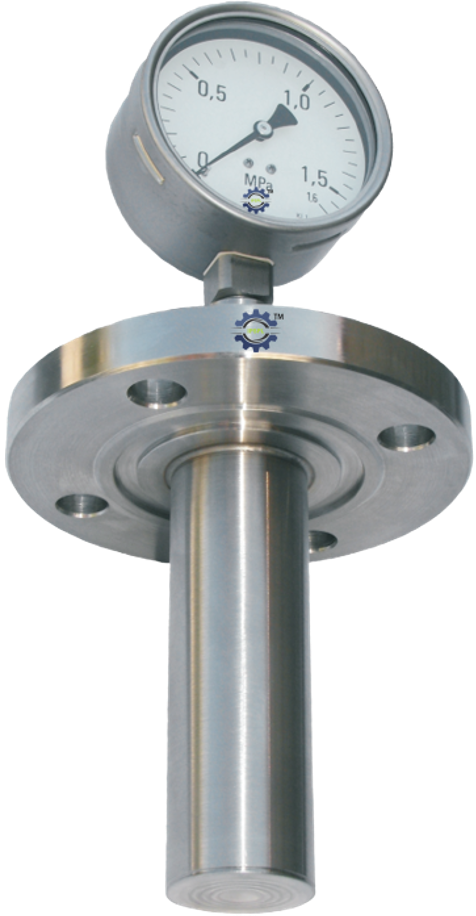

IPS-DG-11 - ALL STAINLESS STEEL EXTENDED TYPE DIAPHRAGM SEALED PRESSURE GAUGE
|
Pressure Ranges |
1 kg/cm² to 250 kg/cm²* |
|
Process Temperature |
-40°C to 200°C or as per fill fluid |
|
Instrument Connection |
½” BSP (F) |
|
Process Connection |
Flange (Refer table) |
|
Pressure Gauge Case & Bezel |
AISI 304 SS |
|
Dial Size |
63 mm, 100 mm & 150 mm |
|
Diaphragm |
AISI 316L SS |
|
Flange Finish |
125-250 AARH |
|
Flange |
AISI 316 SS |
|
Filling Fluid |
Silicon Oil - DC 200 |
|
Extension |
50 mm (other extension on request) |
Download
click here to download the datasheet

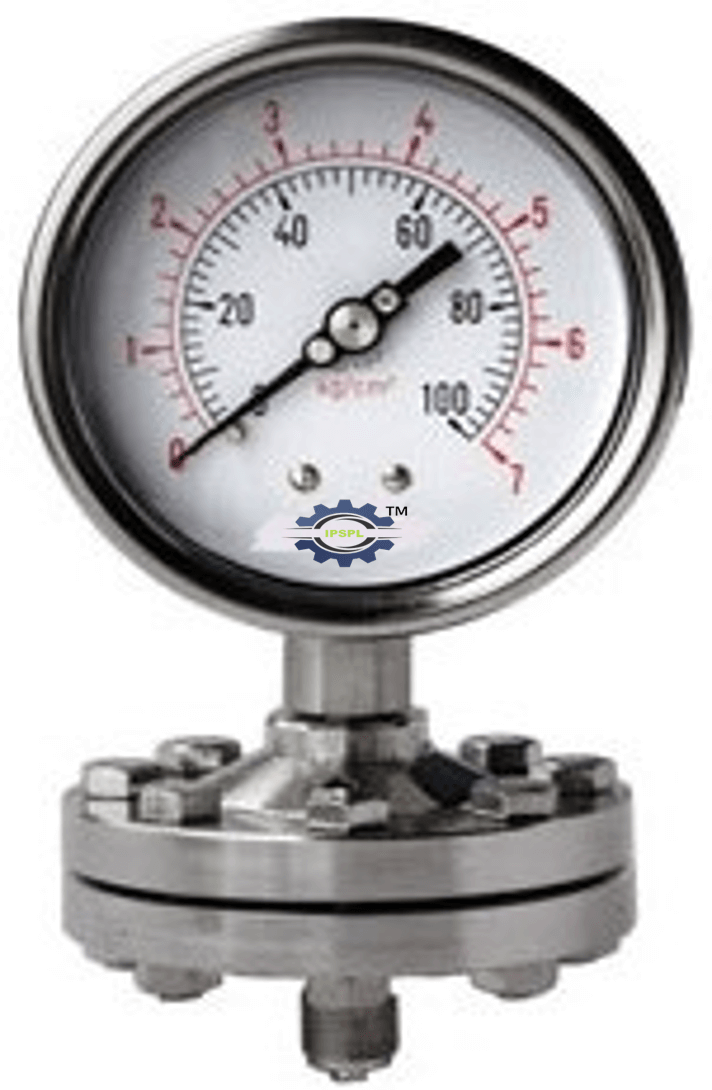

IPS-DG-12 - SLIP RING COUPLED TYPE DIAPHRAGM SEALED PRESSURE GAUGE
|
Pressure Ranges |
-1 to 0 kg/cm² & 0 to 70 kg/cm² (Standard) |
|
Process Temperature |
-40°C to 200°C or as per fill fluid |
|
Instrument Connection |
½” BSP (F) |
|
Process Connection |
½” BSP (M) |
|
Pressure Gauge Case & Bezel |
AISI 304 SS |
|
Dial Size |
63 mm, 100 mm & 150 mm |
|
Diaphragm |
AISI 316L SS |
|
Mounting |
Direct (Without Capillary) |
|
Top Chamber |
AISI 304 SS |
|
Bottom Chamber |
AISI 316 SS |
|
Nuts & Bolts |
Steel (Plated) |
|
Filling Fluid |
Silicon Oil - DC 200 |
|
Sealing Gasket |
PTFE |
|
Tension Flange (Cup type) |
Steel (Plated) |
Download
click here to download the datasheet
