Applications

Features

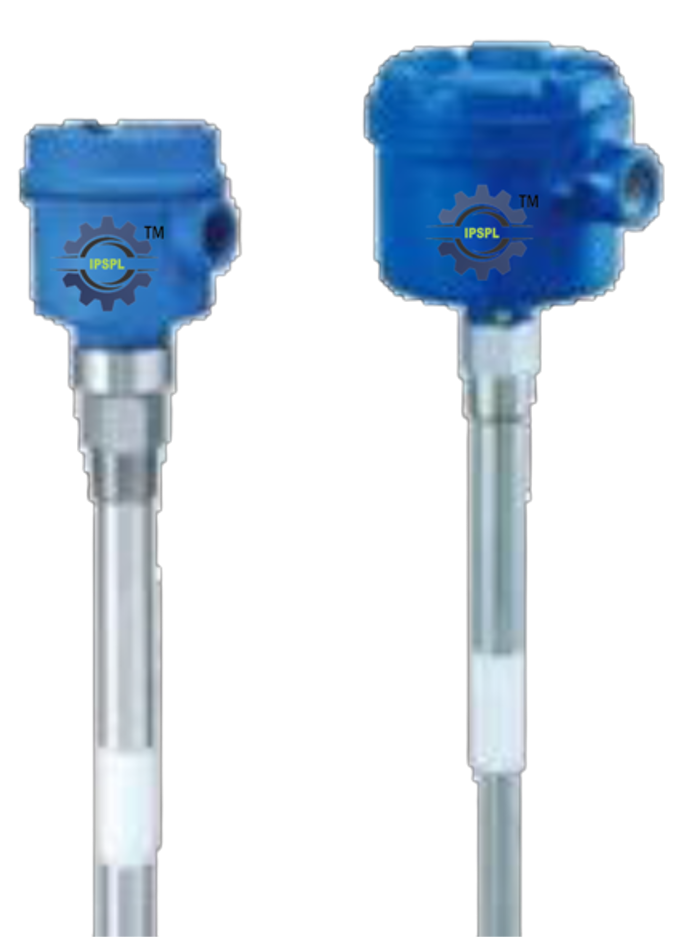

Free flowing homogeneous liquids like oil, raw water WFl/DM water etc.

Compact size.

Rigid rod/flexible rope versions.

Suitable for top mounting.

Wide range industrial DC power supply (14 to 60 VDC).

Process temperature up-to max. 200°C.

Loop powered device 2 wire 4-20mA / 1-5V / 2-10V / RS-485.

Process pressure up-to max. 15 bar.

No potentiometers-hassle free calibration.

Suitable for corrosive liquids.

Various customized process connections like Threaded / Flanged / Hygienic etc.

Exd -Version available -suitable for Gas Group IIC, T6 as per IS/IEC 60079-1-2014 & IS/IEC 60529:2001

Remote Process Indicator Controller available on request.

Applications

Features

It is a pressure sensor for hydrostatic level measurement.

Compact size

4-core, shielded cable with vent hose which is mechanically strong enough for deep submersible liquid level measurement.

Drinking water, dam water, bore well, well etc.

Wide range industrial DC power supply (12 to 36 VDC).

Suitable for top mounting.

Loop powered device 4-20mA/RS-485.

Process temperature max. 80°C

No calibration required.

Process pressure max. 200 mH2O.

Customized process connections like Threaded/Flanged/Hygienic etc.

Suitable for sea water/corrosive liquids.

Accuracy +/- 0.5% of FS or +/- 0.25% of FS.

Remote Process Indicator Controller available on request.

Applications

Features

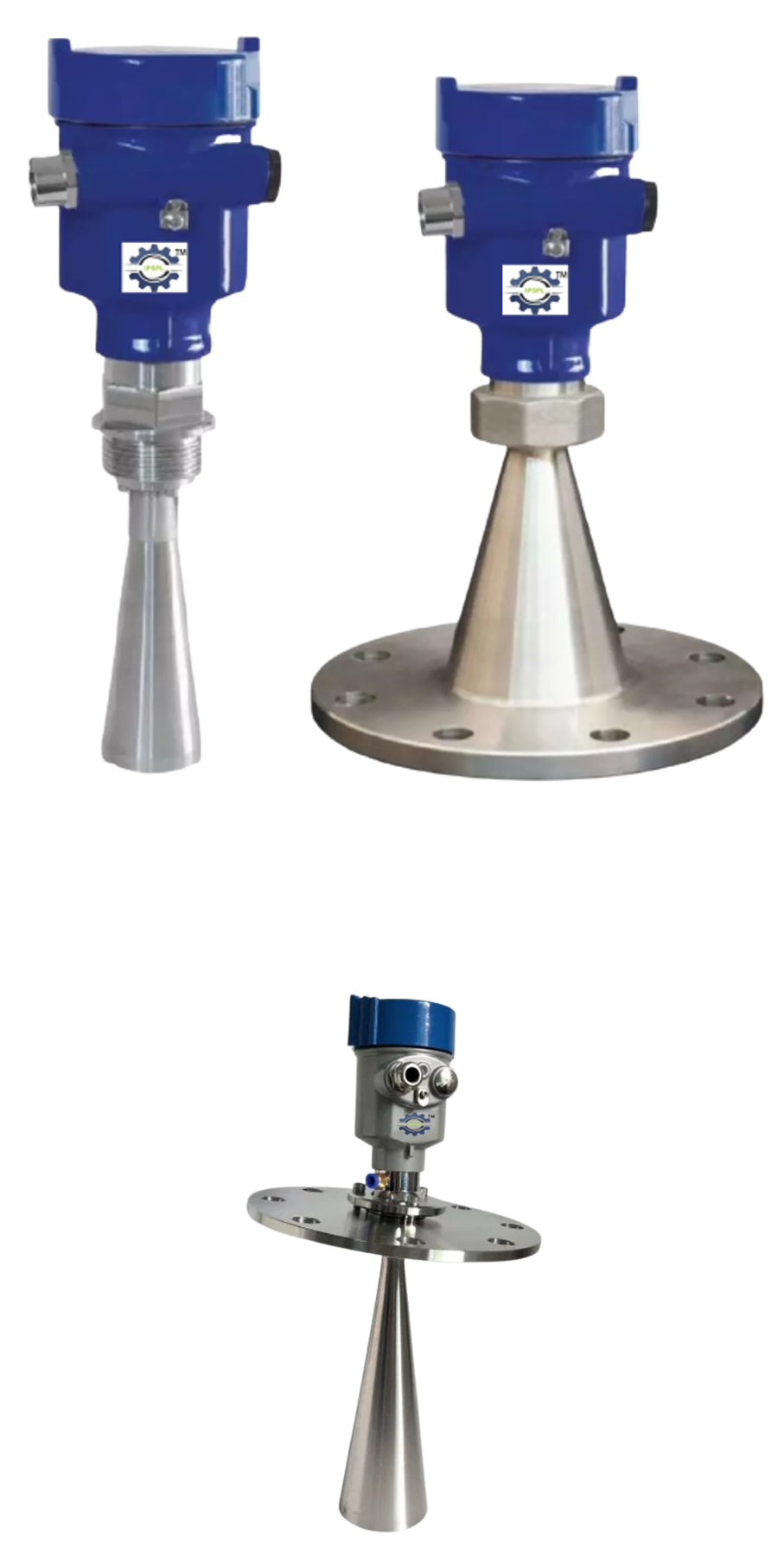

Continuous , non-contact level measurement applicable for liquids and solids in large storage tanks

Min resolution 1mm

Various antennas MOC as per process requirement

Intelligent signal processing technology

Maximum measuring range up to 70M

Simple configuration parameters, without waiting for emptying containers

Process Temperature-40 to 200°C

LCD display & Easy configuration

(Special Temperature Range available on request)

Die Cast Aluminum enclosure

Process Pressure max-1 to 16 bar

Two wire 4-20mA/HART output

Applications

Features

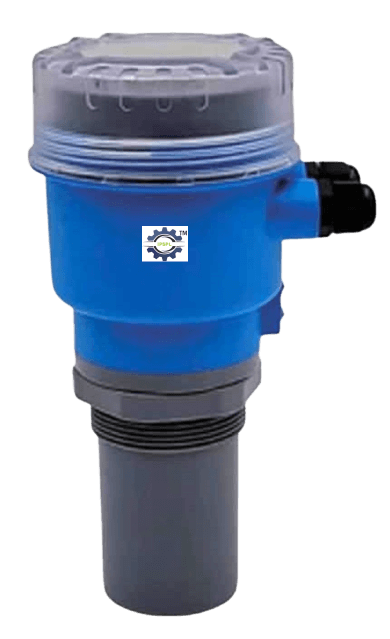

Continuous, non-contact level measurement in fluids, pastes, and coarse bulk materials

Min resolution 1mm

Flow measurement in open

channels

Intelligent signal processing technology.

Max-range 30m in liquids

Simple configuration parameters, without waiting for emptying containers

Process Temperature-40 to 80°C

Rot-proof plastic crust protect grade IP67

Process Pressure max 1bar

LCD display & Easy configuration
