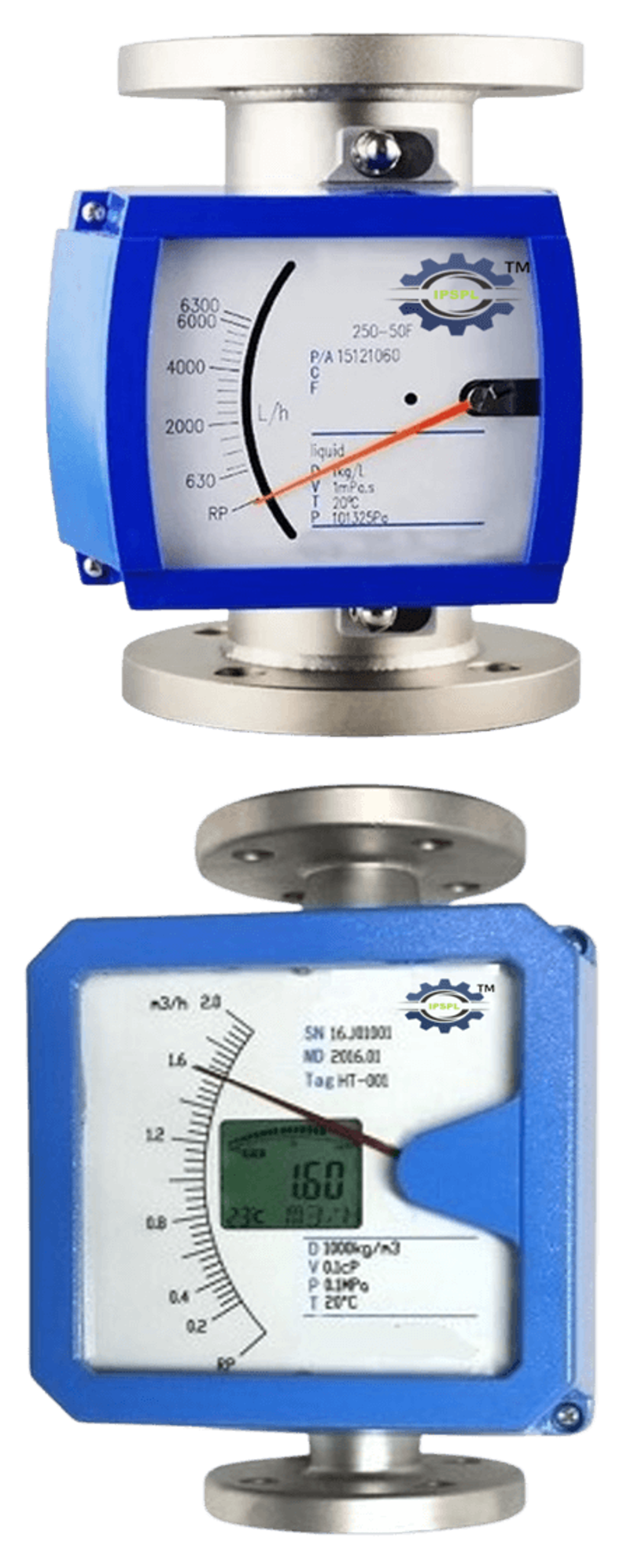

Features

Applications

High pressure and temperature application

Catalysts, tensides, foam inhibitors, emulsifiers, acids, bases, chloride substances, sulphuric substances

Linear flow reading and output signals

Inertisation of vessels and tanks

All stainless-steel metal construction, strong and durable.

Sample flow monitoring for analysis

Short stroke, compact structure.

Emulsifiers and demulsifiers

Minimum pressure drop design.

Gas seal monitoring for turbo compressors

Magnetic coupling mechanism ensures that the signal transmitted is smoother & more stable.

Coolant and lubricant

Thermal insulation or tracing steam jacket is available.

Air supply, condensate, and cooling water supply

Used for the gas and liquid flow measurement in all process industries.

Dosing of protective gas

The measuring flow tube can use different metals suitable for different fluids.

Process Monitoring and Control with additional fittings

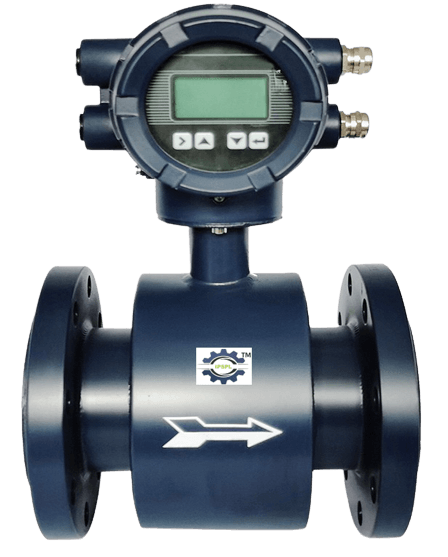

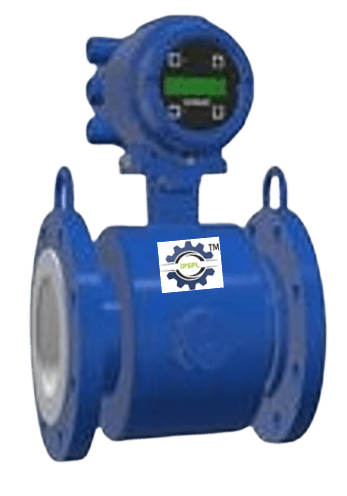

Features

Applications

Total / accumulated total / flow rate

Distribution Network

Auto empty-full pipe check

Waste water measurement, Sluge measurement etc.

Ultrafast response time

Industrial Utility Management : Measuring water consumed by each plant. Water audit.

4-20mA and pulse output

Dosing of additives

High and low alarm (2-relay output)

Corrosive, abrasive liquids / Slurries

Modbus (RS485)

Blending, dosing, batching

Can handle slurries and heavy particulates

Process chemicals Measurement of acidic, alkaline chemicals, slurries with & without dissolved solids

Good accuracy (0.5 to 1%)

Mining slurries

Can respond well to fast changing flows

Paper pulp waste

Insensitivity to viscosity, specific gravity, temperature and pressure (within certain limitations)

Measurement of imbibition water, raw juice etc. Measurement of Spent wash, Fermented wash molasses etc.

Will work with laminar, turbulent, and transitional flows

Water monitoring in industrial plants

Virtually no pressure drop

Untreated as well as treated effluent measurement

No moving parts

Food & Beverages : Special end connection like sms union, triclover clamp, fully SS body, PTFE or PFA liner available.

Lining protectors available for harsh, chemically corrosive, and abrasive fluids

Boiler Feed Water Measurement.

Can respond well to fast changing flows

Monitoring and control of a variety of industrial effluents

Features

Applications

Available in Line Size Ranges: 4mm to 200mm

Process Industries

Power Supply: Battery / 24VDC Power Supply

Housing Complex

Direct measurement of volume and flow rate

Any suitable liquid for SS Metal

Long meter life and reliability

Mineral Oils

Measurement of low viscosity liquids

Crude Oils

Measurement of non-conductive liquids is possible(especially hydrocarbons)

Alkaline fluids

Direct measurement of volume and flow rate

Acids

No Zero drift

Water

Low pressure loss

Solvents

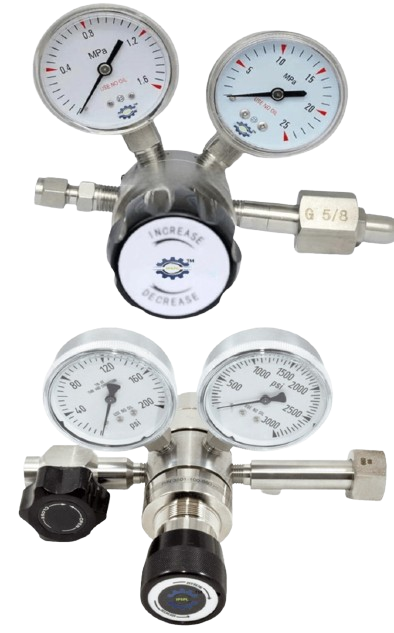

Material of Construction

316 SS

Inlet Pressure Rating

250 Kg/cm2 max

Outlet Pressure Rating

6 Kg/cm2 max

Flow Rate

l) 0.1 to 10 LPM – for instrument application.

II) 10 to 100 LPM – for others.

Service

Gas / Gas Mixture

Inlet Connection

5/8” BSP M RH / LH

Outlet Connection

1/4" OD Tube

Inlet Pressure Gauge

50 mm Stainless Steel, 1/4" NPT M,0-280 Kg/Cm2

Outlet Pressure Gauge

50 mm Stainless Steel, 1/4” NPT M,0-7 Kg/cm2
