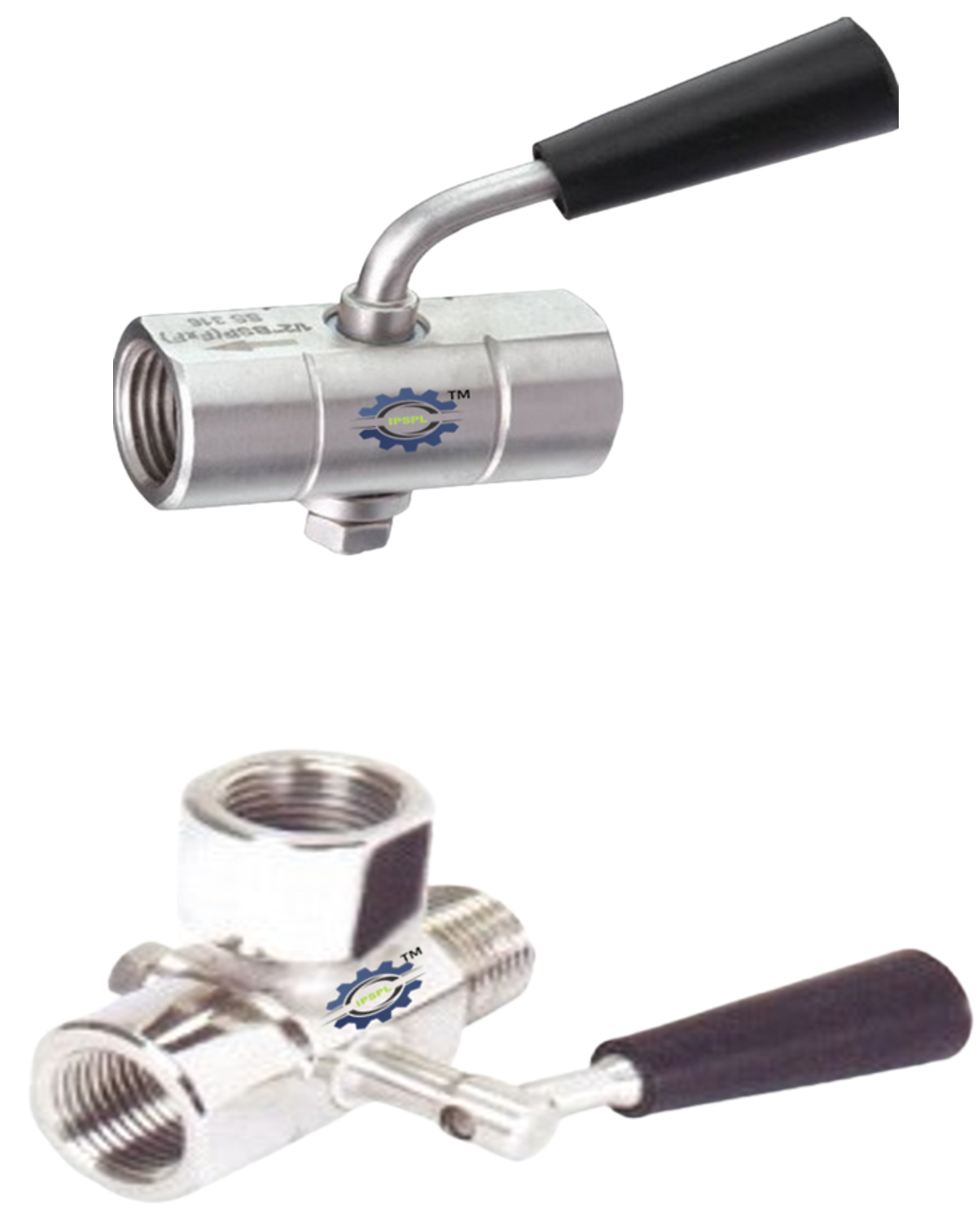

IPS-GC-01 - GAUGE COCK - ALL STAINLESS STEEL
|
Type |
2 Way / 3 Way |
|
Material |
AISI316SS /AISI304SS |
|
Instrument connection |
1/2" NPT (F) , (1/2" NPT (F) x 2 Nos for 3 Way) |
|
Process connection |
1/2" NPT (M) |
|
Handle |
AISI 304 SS with Backelite cover / Metal Handle |
|
Gaskets / Seals |
PTFE |
|
Maximum working pressure |
100 bar |
|
Maximum working temperature |
180°C |
Download
click here to download the datasheet
IPS-SI-02 - SIPHON - ALL STAINLESS STEEL
|
Type |
Pig Tail & Coil, U Type syphons |
|
Material |
SS316, SS304, CS |
|
Instrument connection |
1/4" / 3/8" /1/2", BSP / NPT (F) |
|
Pipe Size & Schedule |
1/4" /3/8" /1/2", 40/ 80 / 160 |
|
Connection Type |
Threaded / Weld In / Flange end / Sanitary Connection |
|
Process connection |
1/4" /3/8" /1/2", BSP / NPT (M) |
|
Maximum working pressure |
As per PT chart |
|
Maximum working temperature |
As per PT chart |
|
Options |
Epoxy Coating / IBR Certification /Tag Plate / special connections |
Download
click here to download the datasheet
IPS-PD-03 - STAINLESS STEEL PULSATION DAMPENER / SNUBBER ADJUSTABLE NEEDLE TYPE
|
Type |
Flow Adjustable Screw |
|
Material |
SS304 / SS316 /SS316L / BRASS / Monel |
|
Instrument connection |
1/4"/3/8"/ 1/2", BSP / NPT (F) |
|
Process connection |
1/4"/3/8"/ 1/2", BSP / NPT (M) |
|
Gaskets / Seals |
Viton / PTFE |
|
Maximum working pressure |
400 bar |
|
Maximum working temperature |
180°C |
Download
click here to download the datasheet

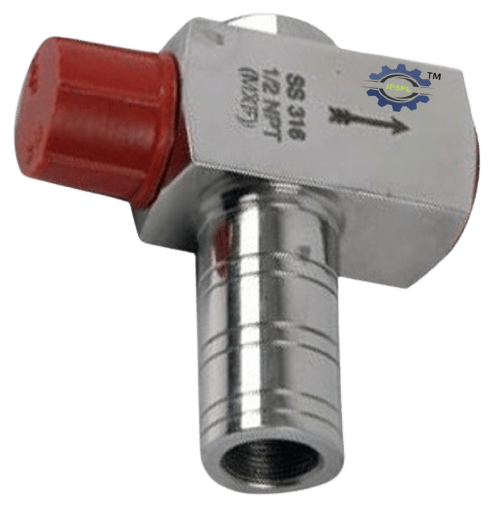

IPS-OP-04 - STAINLESS STEEL OVERLOAD PROTECTOR GUAGE SAVER
|
Type |
Bellow (Range up to 2.5 bar) / Piston (Range 0 to 4 to 0 to 600 bar) |
|
Material |
SS316 /SS316L / Monel |
|
Instrument connection |
1/4"/3/8"/ 1/2", BSP / NPT / M20 (F) |
|
Process connection |
1/4"/3/8"/ 1/2", BSP / NPT / M20 (M) |
|
Gaskets / Seals |
Viton / PTFE |
|
Maximum working pressure |
600 bar |
|
Maximum working temperature |
180°C |
|
Note |
As per pressure range, type will be select |
Download
click here to download the datasheet
IPS-CT-05 - COOLING TOWER STAINLESS STEEL
|
Type |
Fin Type/ Perforated Type / Capillary Type |
|
Material |
SS316 /SS316L / Monel |
|
Instrument connection |
1/4"/3/8"/ 1/2", BSP / NPT / M20 (F) |
|
Process connection |
1/4"/3/8"/ 1/2", BSP / NPT / M20 (M) |
|
Maximum working pressure |
1000 bar |
|
Maximum working temperature |
300°C |
|
Note |
Fin Type is more suitable for pressure transmitter |
Download
click here to download the datasheet
IPS-FR-06 - FLUSHING RING STAINLESS STEEL
|
Type |
To suit all standard flange RF OD |
|
Material Flange facing |
Raised Face / RTJ |
|
Flushing Port |
1/4" / ½" NPT with plug - 2 Nos. |
|
Maximum working pressure |
As per Standard Flange Rating |
|
Maximum working temperature |
300°C |
|
Options |
Nipple / Needle Valve / Gasket |
|
Note |
Material equivalent to flange |
