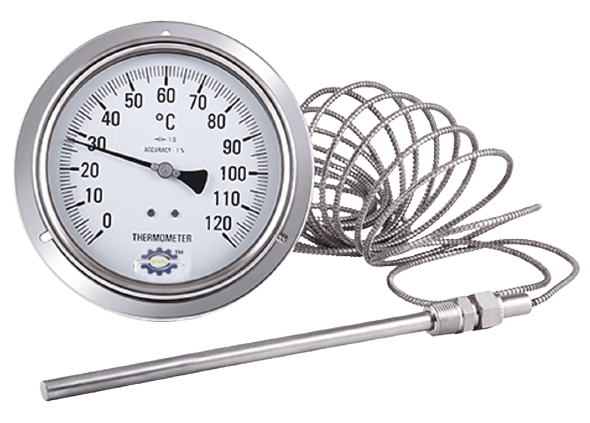

IPS-TG-01 - ALL STAINLESS STEEL GAS FILLED TEMPERATURE GAUGES
|
Dial Size |
DN100 / DN125 / DN150 / DN250 (4" / 4.5" / 6" / 10") |
|
Temp. Range |
-100 to 650°C |
|
Accuracy |
± CL 1 |
|
Standard |
EN13190 |
|
Mounting |
Bottom/Center Back/Every angle Clamp with External Zero Adjustment |
|
Process Connection |
1/4"/3/8"/1/2"-BSP / NPT Option with Anti Vibration spring |
|
Ingress Protection |
IP65, Options Hermetically Sealed Enclosure |
|
Execution |
Dry / Fillable |
|
Sensing Element |
Bourdon Tube with Temperature Compensation |
|
Case & Bezel |
SS304/316, - Stem / Probe TIG welded with Case |
Download
click here to download the datasheet
IPS-TG-02 - ALL STAINLESS STEEL BIMETAL TEMPERATURE GAUGES
|
Dial Size |
DN40 / DN50 / DN63 / DN80 /DN100 / DN125 / DN150 / DN250 - (1.5" / 2" / 2.5" / 3" / 4" / 4.5" / 6" / 10") |
|
Temp. Range |
-100 to 600°C |
|
Accuracy |
± CL 1 |
|
Standard |
EN13190 |
|
Mounting |
Bottom / Center Back / Every angle Clamp with External Zero Adjustment |
|
Process Connection |
1/4" / 3/8" /1/2"-BSP / NPT, Special Connections |
|
Ingress Protection |
IP65, Hermetically Sealed Encloser |
|
Execution |
Dry / Fillable |
|
Sensing Element |
Bimetallic Helix |
|
Case & Bezel |
SS304/316, - Stem / Probe TIG welded with Case |
Download
click here to download the datasheet

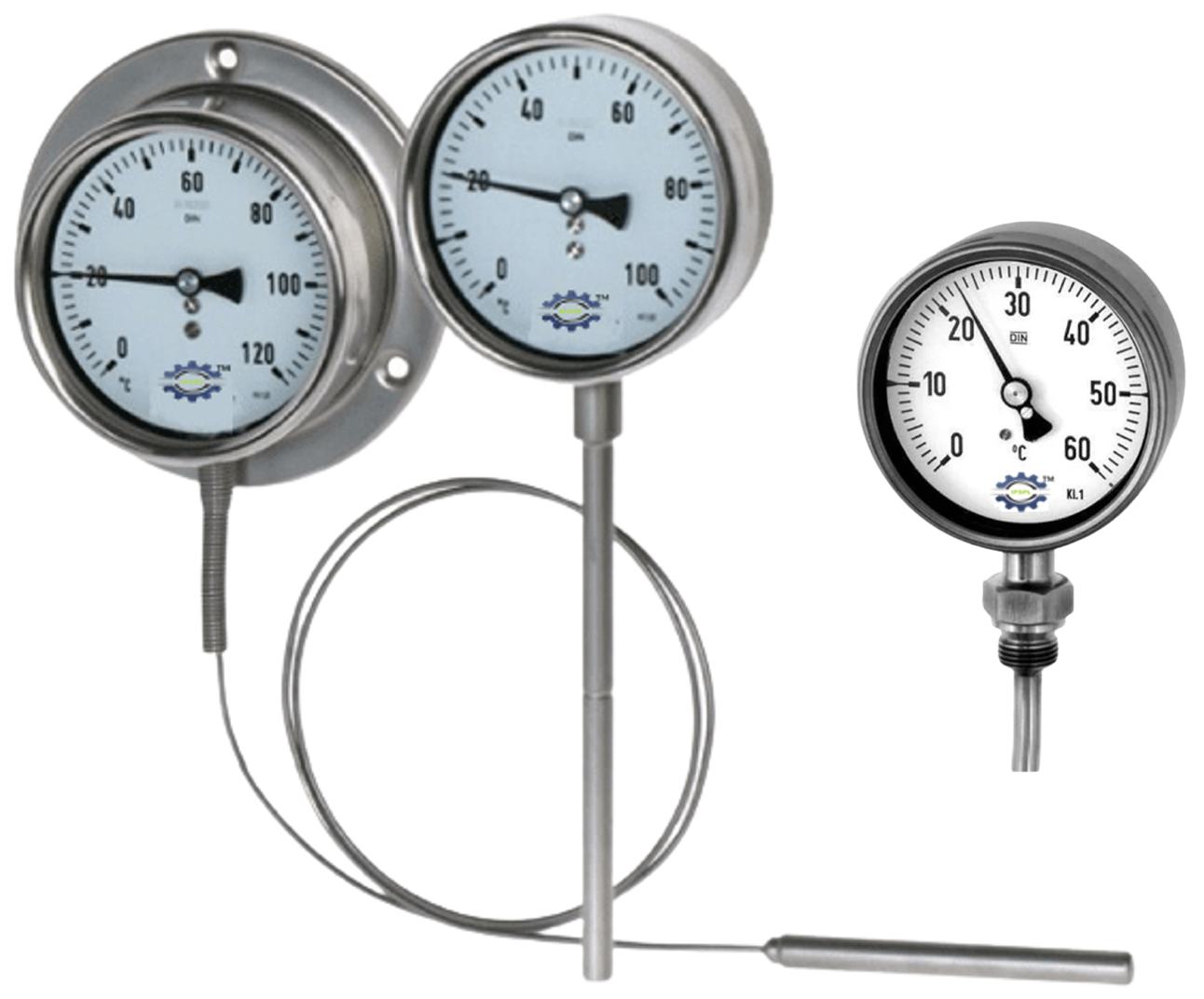

IPS-TG-03 - ALL STAINLESS STEEL GAS FILLED TEMPERATURE GAUGES WITH EXTERNAL ZERO ADJUSTMENT (DIN CASE)
|
Dial Size |
DN100 / DN150 (4" / 6") |
|
Temp. Range |
-100 to 650°C |
|
Accuracy |
± CL 1 |
|
Standard |
EN13190 |
|
Mounting |
Bottom/Center Back/Every angle Clamp with External Zero Adjustment |
|
Process Connection |
1/4"/3/8"/1/2"-BSP / NPT Option with Anti Vibration spring |
|
Ingress Protection |
IP65, Options Hermetically Sealed Enclosure |
|
Execution |
Dry / Fillable |
|
Sensing Element |
Bourdon Tube with Temperature Compensation |
|
Case & Bezel |
SS304/316 - Stem / Probe TIG welded with Case |
Download
click here to download the datasheet
IPS-TG-04 - ALL STAINLESS STEEL GAS FILLED TEMPERATURE GAUGES WITH EXTERNAL ZERO ADJUSTMENT
|
Dial Size |
DN100 / DN150 (4" / 6") |
|
Temp. Range |
-100 to 650°C |
|
Accuracy |
± CL 1 |
|
Standard |
EN13190 |
|
Mounting |
Bottom/Center Back/Every angle Clamp with External Zero Adjustment |
|
Process Connection |
1/4"/3/8"/1/2"-BSP / NPT Option with Anti Vibration spring |
|
Ingress Protection |
IP65, Options Hermetically Sealed Enclosure |
|
Sensing Element |
Bourdon Tube with Temperature Compensation |
|
Case & Bezel |
SS304/316 - Stem / Probe TIG welded with Case |
Download
click here to download the datasheet

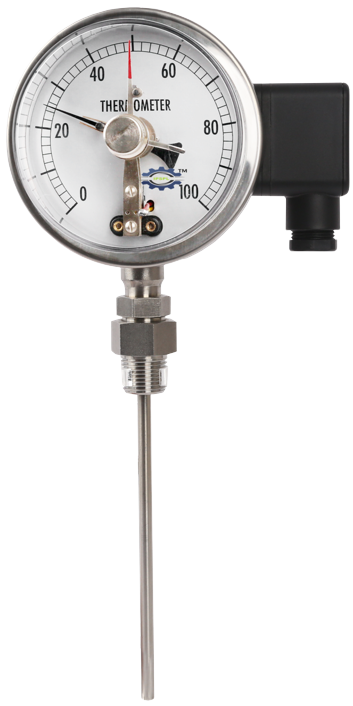

IPS-TG-05 - ALL STAINLESS STEEL TEMPERATURE GAUGE WITH ELECTRIC CONTACT (HIGH VERSION CASE)
|
Dial Size |
DN100 / DN150, Standard Window / Dom Glass |
|
Temp. Range |
-100 to 650°C |
|
Accuracy |
± CL 1 |
|
Standard |
EN13190 |
|
Mounting |
Bottom/Center Back/Every angle Clamp with External Zero Adjustment |
|
Process Connection |
1/4"/3/8"/1/2"- BSP / NPT Option with Anti Vibration spring |
|
Ingress Protection |
IP65, Hermetically Sealed Enclosure |
|
Execution |
Dry / Fillable |
|
Electric Contact |
Magnetic / Inductive Contacts, NO,NC,SPST,DPDT,NONC, |
|
Sensing Element |
Bourdon Tube with Temperature Compensation |
|
Case & Bezel |
SS304/316, - Stem / Probe TIG welded with Case / |
Download
click here to download the datasheet
IPS-TG-06 - ALL STAINLESS STEEL TEMPERATURE GAUGE ELECTRIC CONTACT (DOOM WINDOW)
|
Dial Size |
DN100 / DN150, Standard Window / Dom Glass |
|
Temp. Range |
-100 to 650°C |
|
Accuracy |
± CL 1 |
|
Standard |
EN13190 |
|
Mounting |
Bottom/Center Back/Every angle Clamp with External Zero Adjustment |
|
Process Connection |
1/4"/3/8"/1/2"- BSP / NPT Option with Anti Vibration spring |
|
Ingress Protection |
IP65, Hermetically Sealed Enclosure |
|
Execution |
Dry / Fillable |
|
Electric Contact |
Magnetic / Inductive Contacts, NO,NC,SPST,DPDT,NONC, |
|
Sensing Element |
Bourdon Tube with Temperature Compensation |
|
Case & Bezel |
SS304/316, - Stem / Probe TIG welded with Case / |
Download
click here to download the datasheet
IPS-TG-07 - ALL STAINLESS STEEL GAS FILLED TEMPERATURE GAUGES (DIN CASE)
|
Dial Size |
DN100 / DN125 / DN150 / DN250 (4" / 4.5" / 6" / 10") |
|
Temp. Range |
-100 to 650°C |
|
Accuracy |
± CL 1 |
|
Standard |
EN13190 |
|
Mounting |
Bottom/Center Back/Every angle Clamp with External Zero Adjustment |
|
Process Connection |
1/4"/3/8"/1/2"- BSP / NPT Option with Anti Vibration spring |
|
Ingress Protection |
IP65, Options Hermetically Sealed Enclosure |
|
Execution |
Dry / Fillable |
|
Sensing Element |
Bourdon Tube with Temperature Compensation |
|
Case & Bezel |
SS304/316, - Stem / Probe TIG welded with Case |
Download
click here to download the datasheet
IPS-TG-08 - ALL STAINLESS STEEL BIMETAL TEMPERATURE GAUGES (DIN CASE)
|
Dial Size |
DN63 / DN80 /DN100 / DN125 / DN150 / DN250 - (2.5" / 3" / 4" / 4.5" / 6" / 10") |
|
Temp. Range |
-100 to 600°C |
|
Accuracy |
± CL 1 |
|
Standard |
EN13190 |
|
Mounting |
Bottom / Center Back / Every angle Clamp with External Zero Adjustment |
|
Process Connection |
1/4" / 3/8" /1/2"-BSP / NPT & Special Connections |
|
Ingress Protection |
IP65, Hermetically Sealed Encloser |
|
Execution |
Dry / Fillable |
|
Sensing Element |
Bimetal Helix |
|
Case & Bezel |
SS304/316 - Stem / Probe TIG welded with Case |
