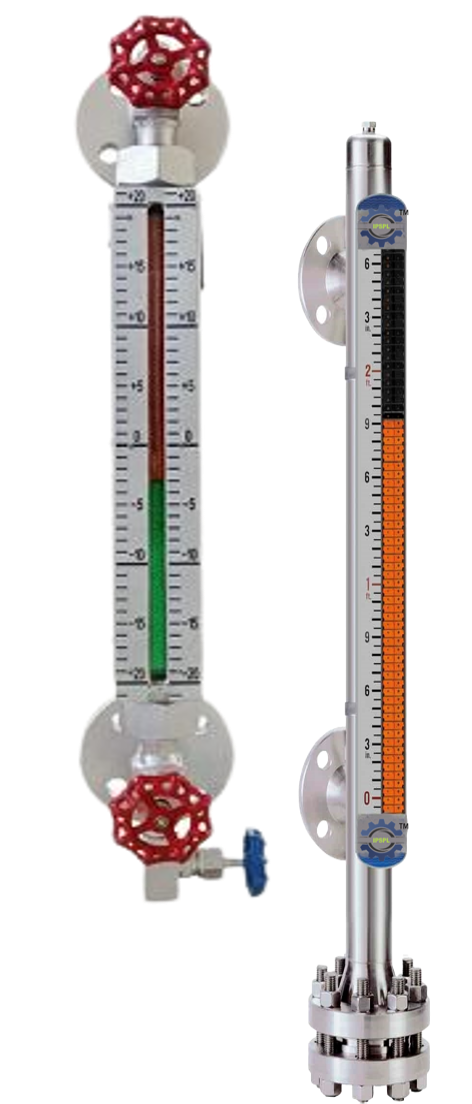

IPS-LG-01 - MAGNETIC LEVEL GAUGE BI-COLOUR
|
Mounting |
Rear / Side / Top Mount |
|
Specific Gravity |
0.75 |
|
Operating Temp |
-20 ... 120°c / -20 …300°c |
|
Operating Pressure |
10bar / 25 bar / 50 Bar / 80 Bar /100 Bar |
|
Process Connection |
1/2" ….. 1" NPT / Standard Flanges / Weld in |
|
Indicator |
Rolling Flappers - Blue & White / Red & White |
|
Wetted Parts Protection |
SS316 / SS316L / with NACE |
|
Distance Center to Center |
500 mm …. 6000 mm |
|
Scale |
Aluminum / SS304 /SS316 |
|
Least Count |
As per requirement |
|
Options |
Switches -1SPDT, Switch Points -1 / 2 / 3 / 4 Nos / Transmitter /Valve |
Download
click here to download the datasheet

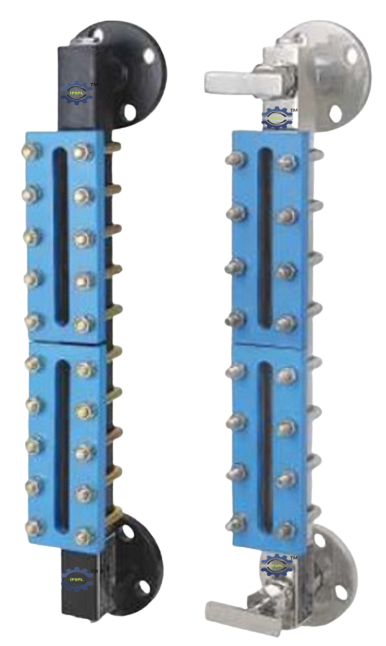

IPS-LG-02 - REFLEX - GLASS LEVEL GAUGE
|
Mounting |
Left Side / Right Side / Rear Side / Top Side |
|
Operating Temp |
-20 ... 120°C / UPTO 240°C / UPTO 400°C |
|
Operating Pressure |
20bar / 35 bar / 65 Bar / 80 Bar /100Bar / 200 bar |
|
Process Connection |
1/2" ….. 1" NPT / Standard Flanges / Weld in |
|
Indicator |
Gauge Glass - Borosilicate (Klinger - Special Requirement) |
|
Wetted Parts |
SS304 / SS316 / CS105 |
|
Distance Center to Center |
500 mm …. 6000 mm |
|
Scale |
Aluminum / SS304 /SS316 |
|
Least Count |
As per requirement |
|
Options |
Needle / ball Valves / FLANGES with Vent or Drain Port, Auto shut of valve / Illumination with diffuse |
Download
click here to download the datasheet

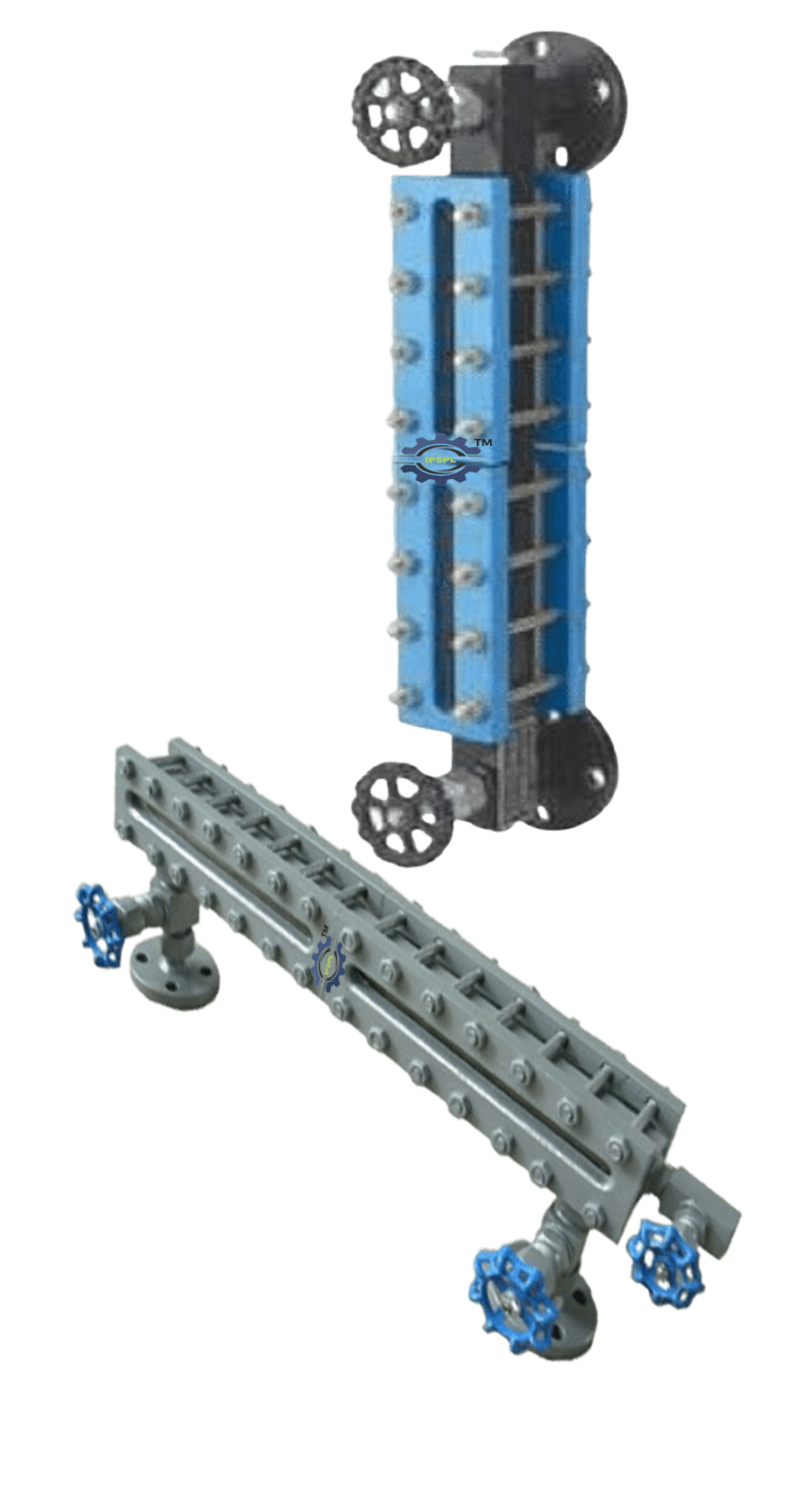

IPS-LG-03 - TRANSPARENT - GLASS LEVEL GAUGE
|
Mounting |
Left Side / Right Side / Rear Side / Top Side |
|
Operating Temp |
-20 ... 120°C / 240°C / 300°C |
|
Operating Pressure |
20bar / 35 bar / 65 Bar / 80 Bar / 100 Bar / 200 Bar |
|
Process Connection |
1/2" ….. 1" NPT / Standard Flanges / Weld in |
|
Indicator |
Gauge Glass - Borosilicate (Klinger - Special Requirements) |
|
Wetted Parts |
SS304 / SS316 / CS105 |
|
Distance Center to Center |
500 mm …. 6000 mm |
|
Scale |
Aluminum / SS304 /SS316 |
|
Least Count |
As per requirement |
|
Options |
Anti frost protection, Illuminator with diffusor, Needle / ball Valves / Flanges with Vent or Drain Port /Auto shut of valve |
Download
click here to download the datasheet

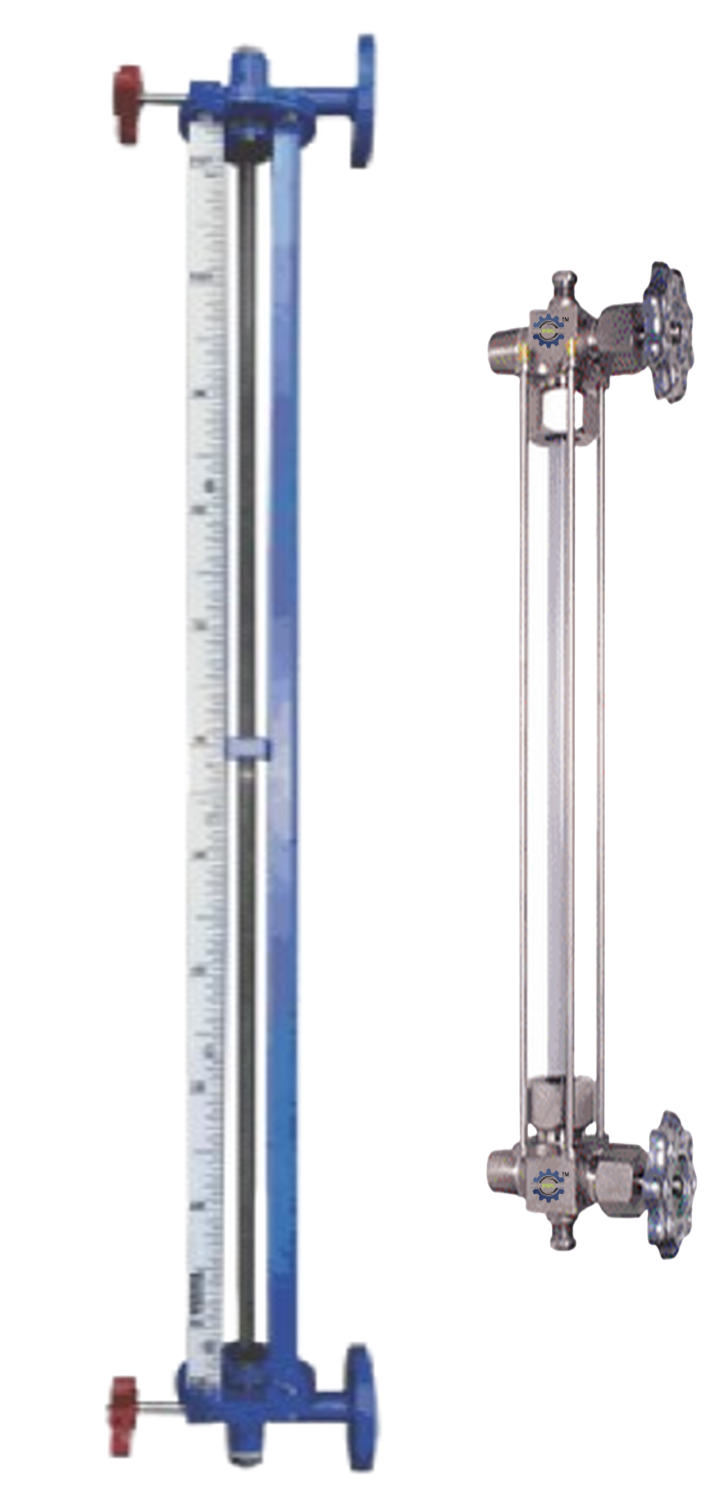

IPS-LG-04 - TUBULAR - GLASS LEVEL GAUGE
|
Mounting |
Left Side / Right Side / Rear Side / Top Side |
|
Operating Temp |
-10 ... 100°C |
|
Operating Pressure |
Up to 10 Bar |
|
Process Connection |
1/2" ….. 1" BSP/ NPT / Standard Flanges |
|
Indicator |
Borosilicate Glass Tube / Plexi Glass |
|
Wetted Parts |
SS304 / SS316 / CS105 |
|
Distance Center to Center |
500 mm …. 2000 mm |
|
Scale |
Aluminum / SS304 /SS316 |
|
Least Count |
As per requirement |
|
Options |
Drain / Vent with ball Valves |
Download
click here to download the datasheet
