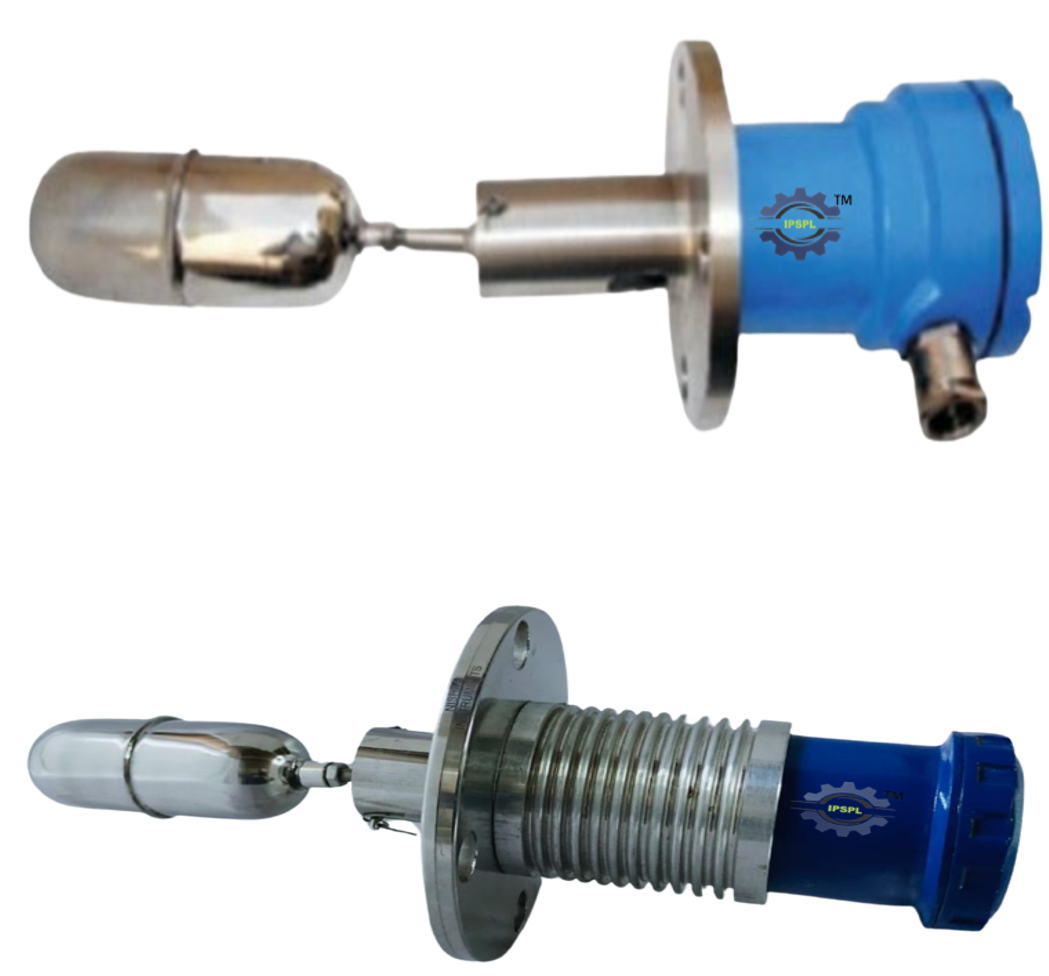

Mounting

Side Mount

Specific Gravity

0.75

Operating Temp

-10°C, 100°C.... 300°C (use cooling system with head)

Operating Pressure

12 Bar

Switch Points / No. of Switch

1No / 2 Nos / 3 Nos / 4 Nos

Process Connection

1" BSP / NPT / Standard Flanges / 2" BSP / SS 316

Wetted Parts

SS316

Ingress Protection

Weatherproof / Flame Proof / Ex-Proof

Switch Type

1SPST & 1SPDT

Switch Rating

5A / 230 VAC - Snap Action Micro Switch / 0.5 A 110 VAC Reed Switch

Insertion Length

150 mm to 300 mm

Enclosure Protection

Die Cast Aluminum / SS304, also with surface coating - Epoxy Painting

Wetted Parts Protection

Non Magnetic SS316 , Surface PTFE coating - PVDF / PTFE

Mounting

SIDE / TOP

Type

Side Mounted / Top Mounted

Specific Gravity

0.8

Operating Temp

-10 …. 180°C

Operating Pressure

4 bar … 10 Bar

Process Connection

1/4" ….. 1" BSP / NPT

Switch Type & Rating

1SPDT / 2 SPDT, 0.5A / 110 VAC-Reed switch

Float Material

SS 316 - Magnetic Float

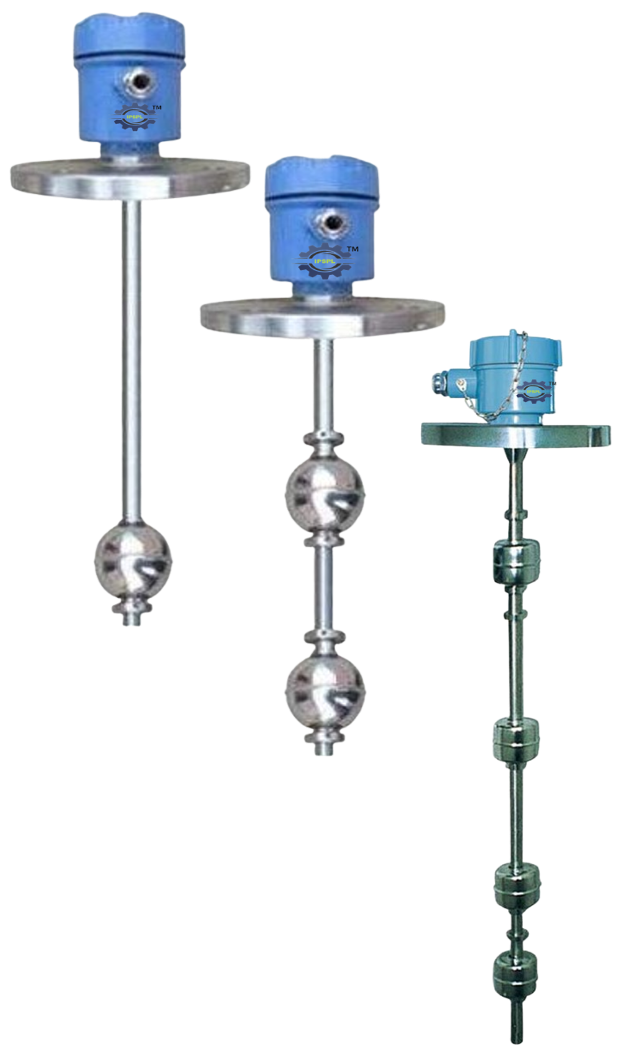

Mounting

Top Mount

Specific Gravity

0.75

Operating Temp

-10°C, 100°C.... 300°C (use cooling system with head)

Operating Pressure

12 Bar

Switch Points / No. of Switch

1No / 2 Nos / 3 Nos / 4 Nos

Process Connection

1" BSP / NPT / Standard Flanges / 2" BSP / SS 316

Wetted Parts

SS316

Ingress Protection

Weather Proof / Flame Proof / Ex-Proof

Switch Type

1SPST & 1SPDT

Switch Rating

5A / 230 VAC - Snap Action Micro Switch / 0.5 A 110 VAC Reed Switch

Insertion Length

150 to 3000 mm

Enclosure Protection

Die Cast Aluminum / SS304, also with surface coating - Epoxy Painting

Wetted Parts Protection

Non Magnetic SS316 , Surface PTFE coating - PVDF / PTFE

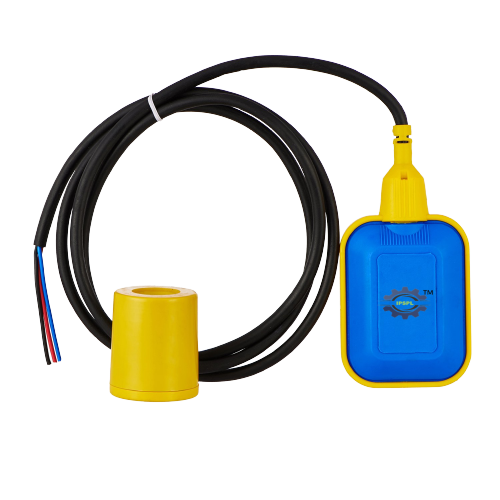

Mounting

TOP

Material of Float

POLYPROPYLENE

Process Conn. Material

SS316 / PP / CS105 / PVC

Specific Gravity

0.8

Operating Temp

-10 …. 60°C

Operating Pressure

Max 4 Bar

Enclosure

Die Cast Aluminum - Weather proof / Flame Proof

Process Connection

Standard Flanges

Ingress Protection

IP68

Switch Type & Rating

1SPDT, 5A / 250 VAC -Micro Switch

Cable Material & Set Points

PVC / 5 Points

Cable Length

300 mm ………upto 25 meter

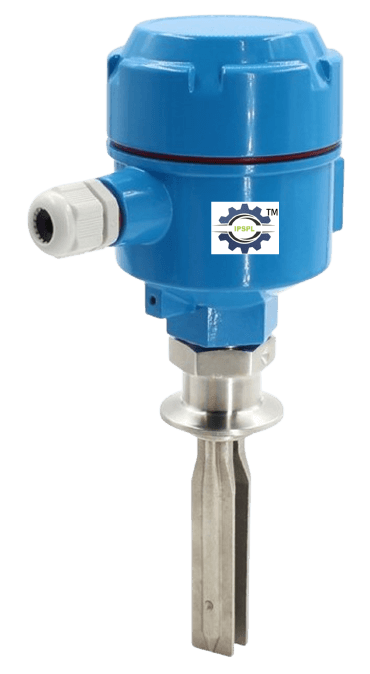

Applications

Features

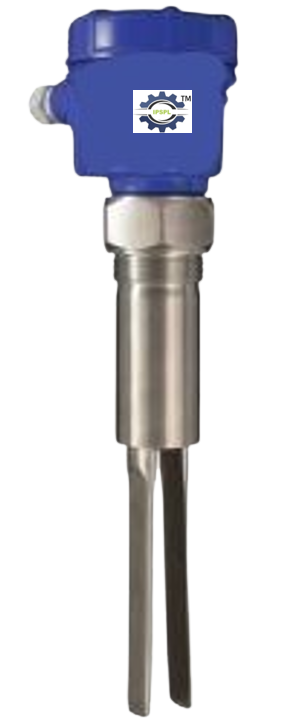

For free-flow liquids with viscosity up-to 10,000cP.

Compact size.

Suitable for side as well as top mounting.

Universal industrial power supply (15 to 80 VDC & 15 to 260 VAC).

Minimum and maximum fail-safe field selectable.

Low power consumption.

Flow/no-flow detection in pipe-lines.

No calibration required.

PTFE/PFA/ECTFE/HALAR coatings for corrosive liquids.

Customized process connections like Threaded/Flanged/Hygienic etc.

Process temperature max. 200°C.

Various o/p available like Relay DPDT/DC PNP/NPN/8/16mA/NAMUR etc.

Process pressure max. 15 bar.

Remote electronic version available on request.

Exd -Version available -suitable for Gas Group IIC, T6 as per IS/IEC 60079-1-2014 & IS/IEC 60529:2001

Applications

Features

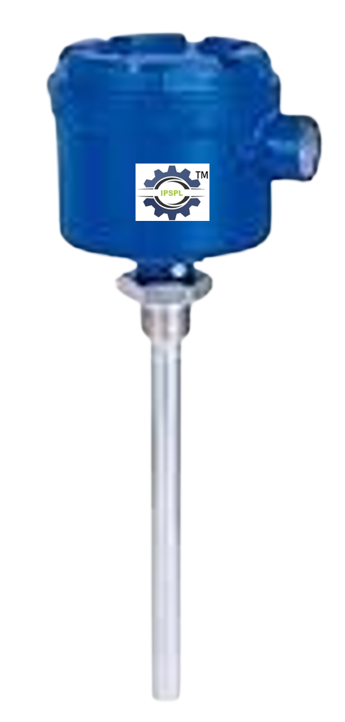

Suitable for all non-sticky liquids and solids.

Compact size.

Suitable for side as well as top mounting.

Universal industrial power supply (15 to 80 VDC & 15 to 260 VAC).

Single point/multipoint/pump control switching on single probe.

Low power consumption.

Minimum and maximum fail-safe field selectable.

Easy dip switch calibration.

Process temperature up-to 600°C (Ceramic Insulation)

Customized process connections like Threaded/Flanged/Hygienic etc.

Process pressure max. 15 bar.

Multiple switching output available.

PTFE coated for corrosive and conductive liquids.

Remote electronic version available on request.

Exd -Version available -suitable for Gas Group IIC, T6 as per IS/IEC 60079-1-2014 & IS/IEC 60529:2001

Applications

Features

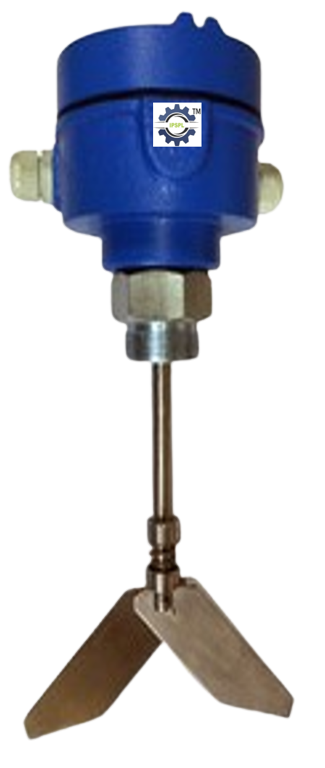

Suitable for free-flowing powders and granules.

Compact size.

Suitable for side as well as top mounting.

Industrial power supply 230 VAC/24VDC.

Process temperature max.150°C.

No calibration required.

Process pressure max. 3 bar.

Durable construction.

Various shape fins option available for different bulk density material.

Spring loaded blades.

Customized process connections.

Applications

Features

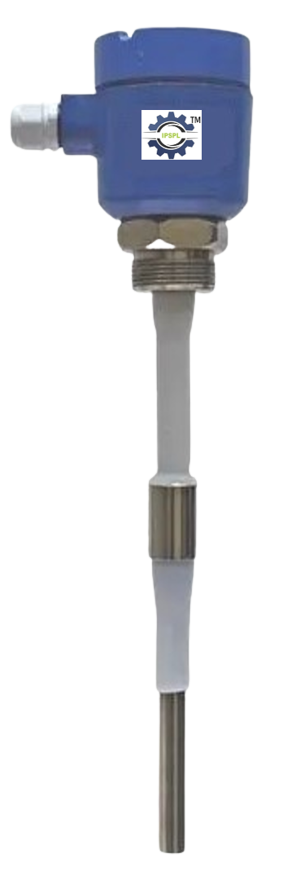

Free flowing powders and granules (size max. 10mm).

Compact size.

Suitable for side as well as top mounting.

Universal industrial power supply (15 to 80 VDC & 15 to 260 VAC).

Minimum and maximum fail-safe field selectable.

Low power consumption.

PTFE/PFA/ECTFE/HALAR coatings for corrosive solids.

No calibration required.

Process temperature max. 200°C/250°C on request.

Customized process connections like Threaded/Flanged/Hygienic etc. Thread starting from 1" size.

Process pressure max. 15 bar.

Settable switching delay as a standard feature.

Exd -Version available -suitable for Gas Group IIC, T6 as per IS/IEC 60079-1-2014 & IS/IEC 60529:2001

Remote electronic version available on request.

Applications

Features

Free flowing powders and granules (size max. 25mm).

Compact size.

Suitable for side as well as top mounting.

Universal industrial power supply (15 to 80 VDC & 15 to 260 VAC).

Minimum and maximum fail

safe field selectable.

Low power consumption.

Process temperature max. 200°C/250°C (on request).

No calibration required.

Process pressure max. 15 bar.

Customized process connections like Threaded/Flanged/Hygienic etc.

Exd -Version available -suitable for Gas Group IIC, T6 as per

IS/IEC 60079-1-2014 & IS/IEC 60529:2001

Settable switching delay as a standard feature.

Remote electronic version available on request.

Applications

Features

Suitable for all sticky/non-sticky bulk solids & liquids.

Compact size.

Suitable for side as well as top mounting.

Universal industrial power supply (15 to 80 VDC & 15 to 260 VAC).

Process temperature max. 600°c (ceramic insulation).

Low power consumption.

Process pressure max. 15 bar.

Easy calibration.

Minimum and maximum fail

safe field selectable.

Active shield compensation against material build-up.

Exd -Version available -suitable for Gas Group IIC, T6 as per IS/IEC 60079-1-2014 & IS/IEC 60529:2001

Static charge safe for fly-ash, acids, plastic & other applications.

Susceptible to static charge /electricity.

Customized process connections like Threaded/Flanged etc.

Remote electronic version available on request.

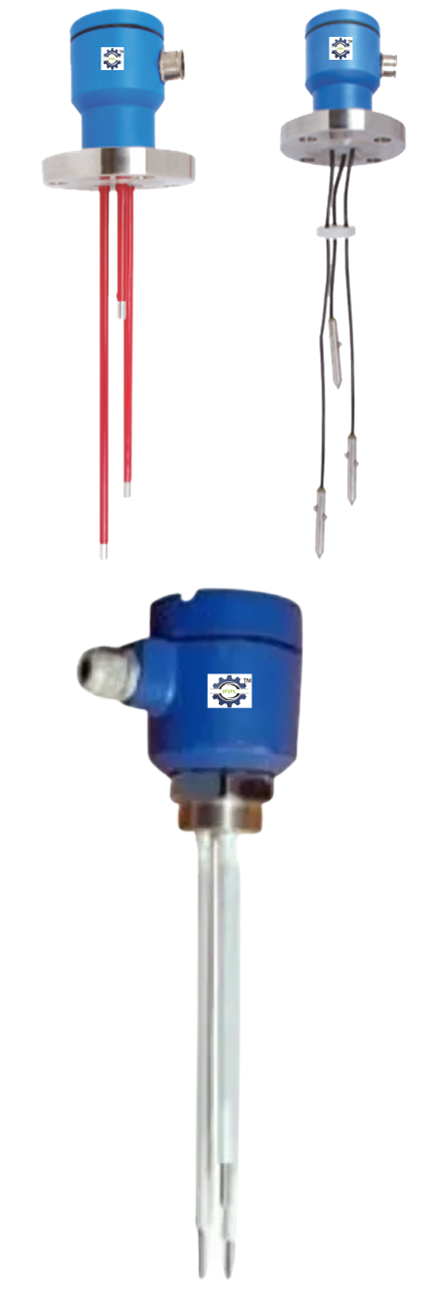

Applications

Features

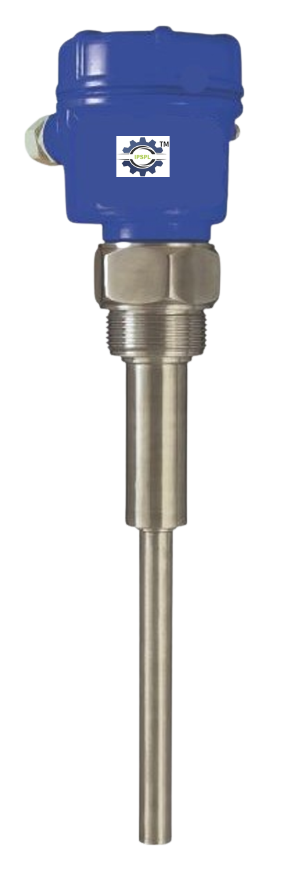

Suitable for conductive liquids like water.

Compact size.

Top mounting & side mounting options.

Integral version with universal power supply (15 to 60 VDC & 15 to 260 VAC).

Minimum and maximum fail-safe field selectable.

Split models with controller + probe with 80 to 260 VAC or 24 VDC.

Single point/multipoint/pump-control switching.

Low power consumption.

Process temperature max. 200°C.

No calibration required.

Process Pressure max. 10 bar.

Various customized process connections like Threaded/Flanged.

Exd -Version available -suitable for Gas Group IIC, T6 as per IS/IEC 60079-1-2014 & IS/IEC 60529:2001

Remote electronic version available on request.

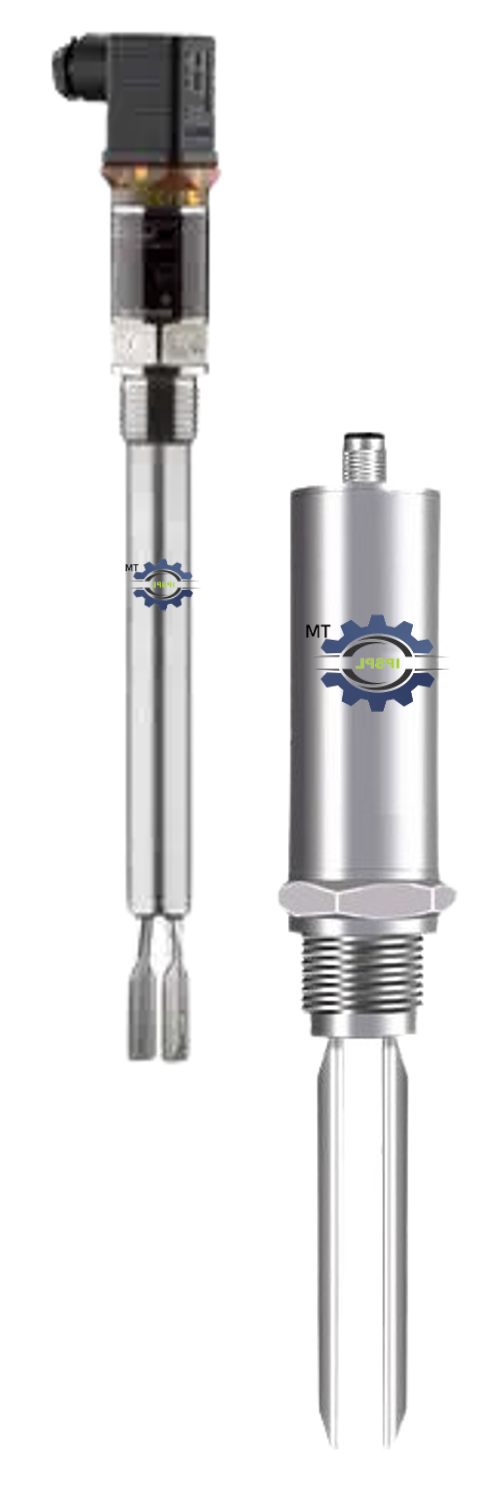

Applications

Features

All liquids from free-flowing to viscosity up-to 10,000cP.

Compact size.

Suitable for side as well as top mounting.

12 to 80 VDC for PNP/NPN o/p.

Minimum and maximum fail safe

field selectable.

Low power consumption.

Suitable for free flowing solid &

liquid applications.

No calibration required.

Process temperature max. 150°C.

Various customized process connections like Threaded/Flanged/TC etc starting from 1/2".

Process pressure max. 15 bar.

Various o/p available like DC PNP/ NPN/ Two wire DC 8/16, Two wire AC and NAMUR.

External test option using magnet test key.
