IPS-TW-01 - STAINLESS STEEL THERMOWELL THREADED CONNECTION FABRICATED / WELDED
|
Material of Construction |
SS304 / SS310 / SS316 / SS446 / INCONEL / MONEL/HASTELLOY-C |
|
Instrument Connection |
3/8" / 1/2" / 3/4" / 1" -BSP /NPT (F) |
|
Process Connection |
1/2"/3/4"/1"/ 1.5" / 2" -BSP / NPT (M) |
|
Bore Size |
7 / 9 / 10 / 12 / 16 mm in Seamless Pipe / Tube , 7x10, 7x12, 9x14, |
|
Head Type |
10x12,12x14, 12x16 mm / Pipe 1/8" , 1/4" 1/2" , 1" Sch.-40,80,160 |
|
Lag / Extension Length |
Head + Pipe Welded |
|
Immersion/Insertion Length (U) |
Hexagonal |
|
Options |
45mm / 50mm / special requirement |
|
100 to 2000 mm / Customer Requirement |
|
|
PTFE Coating on well surface |
Download
click here to download the datasheet

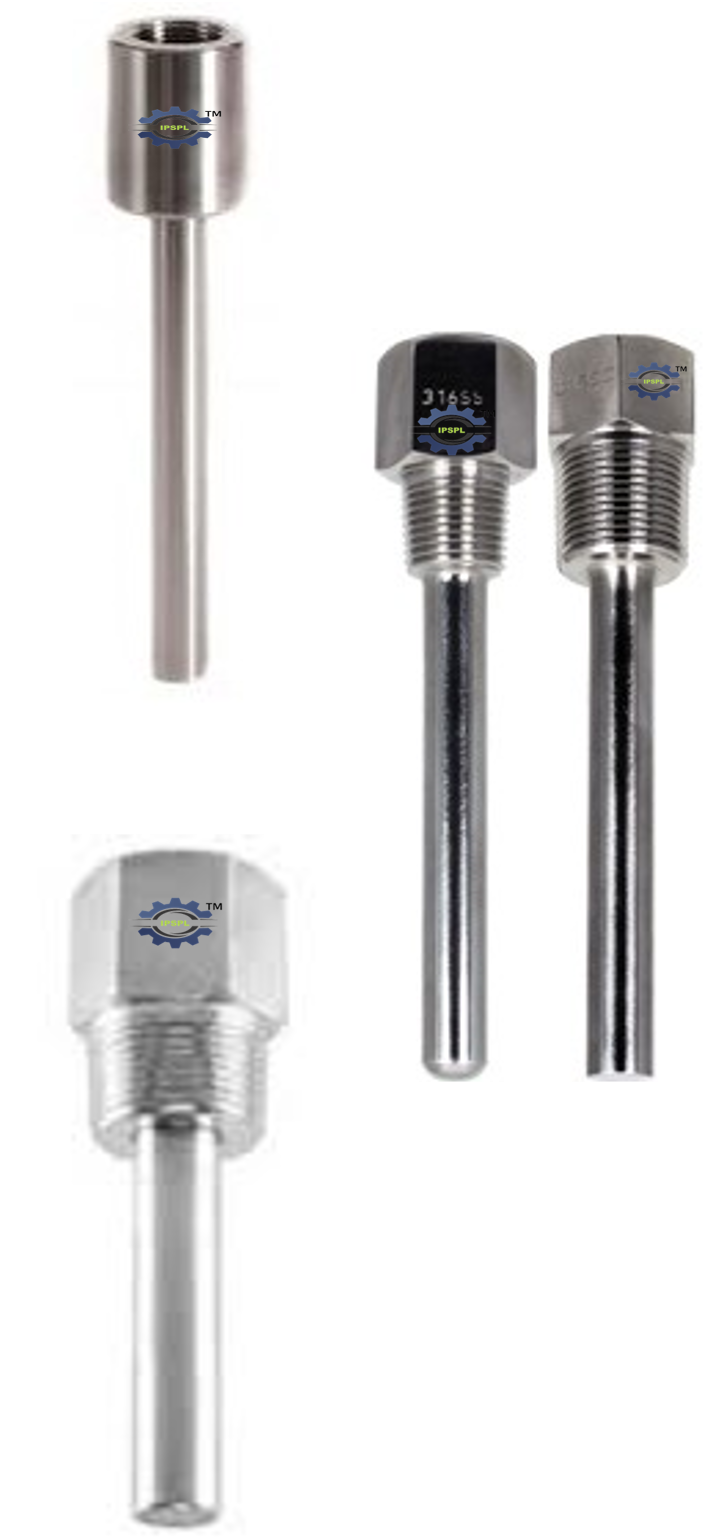

IPS-TW-02 - STAINLESS STEEL THERMOWELL THREADED CONNECTION BARSTOCK
|
Material of Construction |
SS304 / SS310/ SS316 /SS446/INCONEL /MONEL/HASTELLOY-C |
|
Instrument Connection |
1/2" / 3/4" / 1" -BSP /NPT (F) |
|
Process Connection |
1/2" / 3/4" / 1" / 1.5" / 2" -BSP / NPT (M) |
|
Bore Size |
6.6 / 7 / 8.5 / 9.6 / 11 / 13 mm in Bar stock |
|
Head Type |
Hexagonal / Round |
|
Lag / Extension Length |
45mm / 50mm / special requirement |
|
Impression / Insertion Length |
Head Round Type Upto 1000 mm / Head Hex Type : Upto 300 mm |
|
Options |
Wake Frequency Calculation, Shank surface |
|
PTFE coating / Lining / Sleeve for Special materials |
Download
click here to download the datasheet

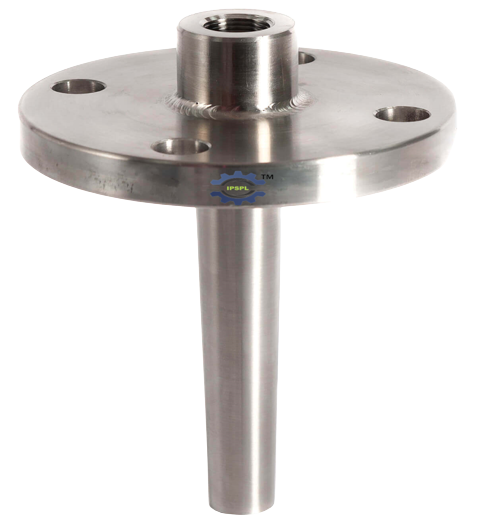

IPS-TW-03 - STAINLESS STEEL THERMOWELL WITH FLANGE FABRICATED TYPE
|
Material of Construction |
SS304 / SS310 / SS316 / SS446 / INCONEL / MONEL/HASTELLOY-C |
|
Instrument Connection |
1/2" / 3/4" / 1" -BSP /NPT (F) |
|
Process Connection |
Standard Flanges |
|
Bore Size |
7 / 9 / 10 / 12 / 16 mm in Seamless Pipe / Tube , 7x10, 7x12, 9x14, |
|
10x12,12x14, 12x16 mm , Pipe 1/8" , 1/4" 1/2" , 1" Sch.- 40, 80, 160 |
|
|
Head + Flange + Pipe - Welded |
|
|
Head Type |
Round |
|
Lag / Extension Length |
45 mm / 50 mm / special requirement |
|
Immersion / Insertion Length |
100 mm to 3000 mm / Customer requirement |
|
Options |
Shank surface PTFE coating / Lining / Sleeve for Special materials |
Download
click here to download the datasheet

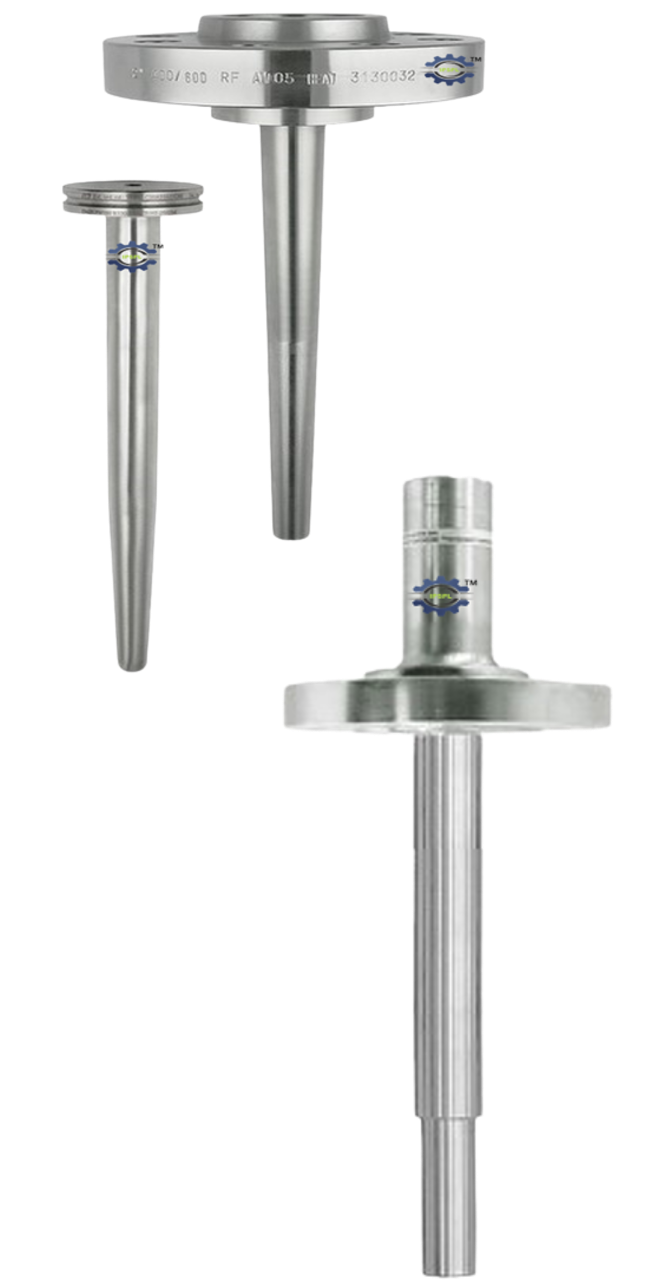

IPS-TW-04 - STAINELESS STEEL THERMOWELL WITH FLANGE BAR STOCK TYPE
|
Material of Construction |
SS304 / SS310 / SS316 / SS446 / INCONEL / MONEL/HASTELLOY-C |
|
Instrument Connection |
1/2" / 3/4" / 1" -BSP /NPT (F) |
|
Process Connection |
Standard Flanges |
|
Bore Size |
6.6 / 7 / 8.5 / 9.6 / 11 / 13 mm in Bar stock |
|
Head Type |
Round |
|
Extension Length |
45mm / 50mm / special requirement |
|
Insertion Length |
100 mm to 1000 mm |
|
Other Options |
Wake Frequency Calculation, Shank surface PTFE coating / Lining / |
|
Sleeve for Special materials |
Download
click here to download the datasheet

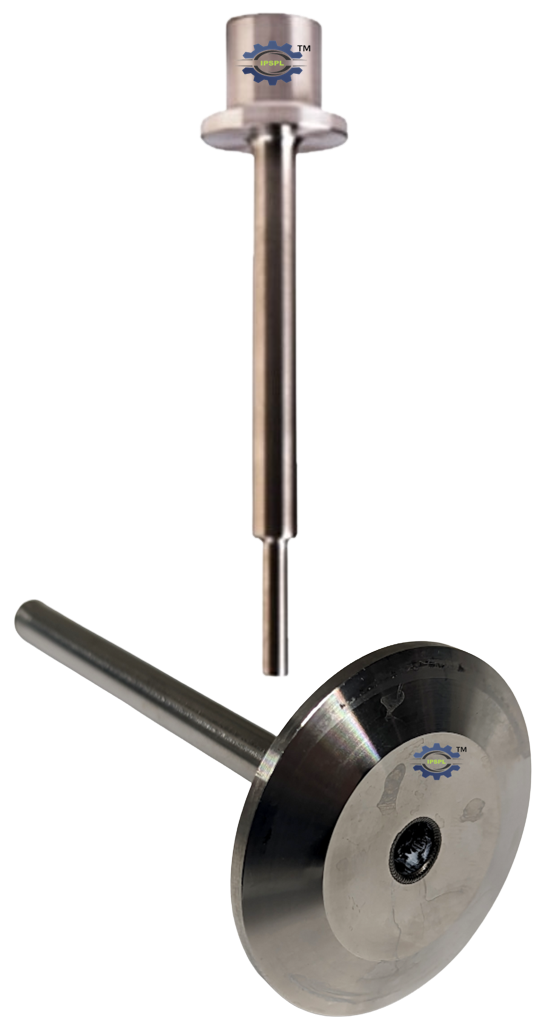

IPS-TW-05 - STAINLESS STEEL THERMOWELL - VAN STONE BAR STOCK TYPE
|
Material of Construction |
SS304 / SS310 / SS316 / SS446 / INCONEL / MONEL / HASTELLOY-C |
|
Instrument Connection |
1/2" / 3/4" / 1" -BSP / NPT (F) |
|
Process Connection |
Suitable to Standard Flanges |
|
Bore Size |
6.6 / 7 / 8.5 / 9.6 / 11 / 13 mm in Bar stock |
|
Head Type |
Round / Flange |
|
Extension Length |
45mm / 50mm / special requirement |
|
Insertion Length |
100 mm to 1000 mm |
|
Other Options |
Wake Frequency Calculation, Shank surface PTFE coating / Lining / |
|
Sleeve for Special materials |
Download
click here to download the datasheet

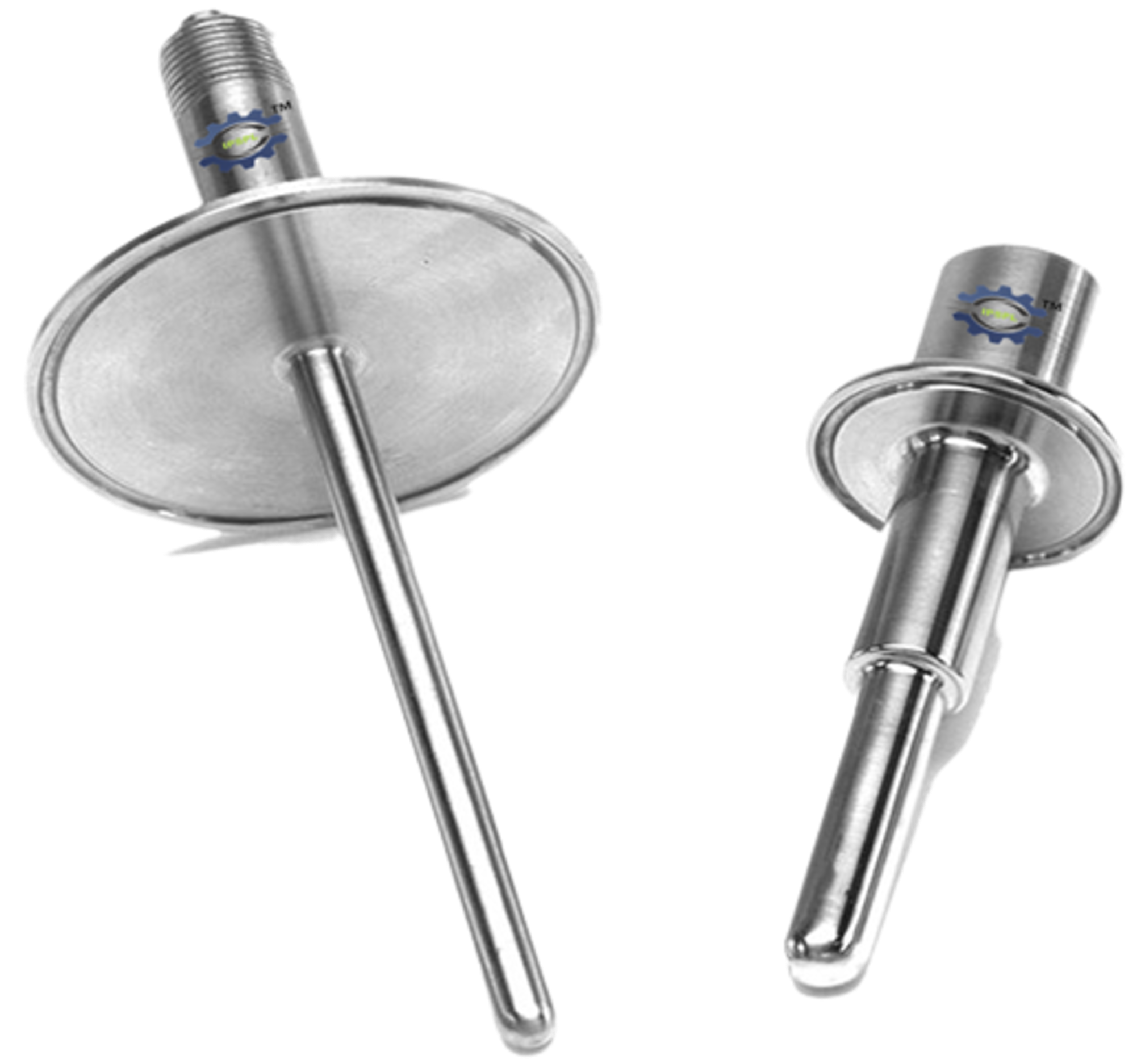

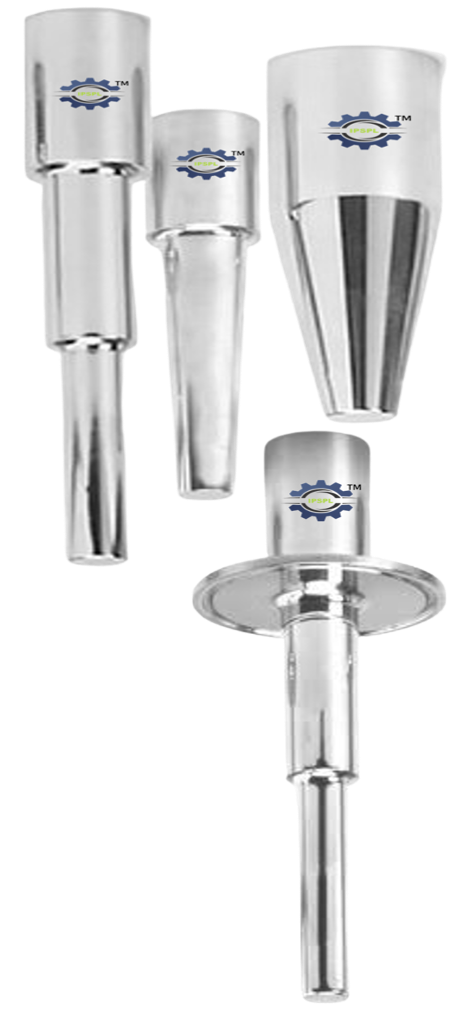

IPS-TW-06 - STAINLESS STEEL THERMOWELL - BAR STOCK SANITARY TYPE
|
Material of Construction |
SS304 / SS310 / SS316 / SS446 / INCONEL / MONEL/HASTELLOY-C |
|
Instrument Connection |
1/2" / 3/4" / 1" -BSP /NPT (F) |
|
Process Connection |
Suitable to Standard Flanges |
|
Bore Size |
6.6 / 7 / 8.5 / 9.6 / 11 / 13 mm in Bar stock |
|
Head Type |
Round / Flange |
|
Extension Length |
45mm / 50mm / special requirement |
|
Insertion Length |
100 mm to 1000 mm |
|
Other Options |
Wake Frequency Calculation, Shank surface PTFE coating / Lining / |
|
Sleeve for Special materials |
Download
click here to download the datasheet

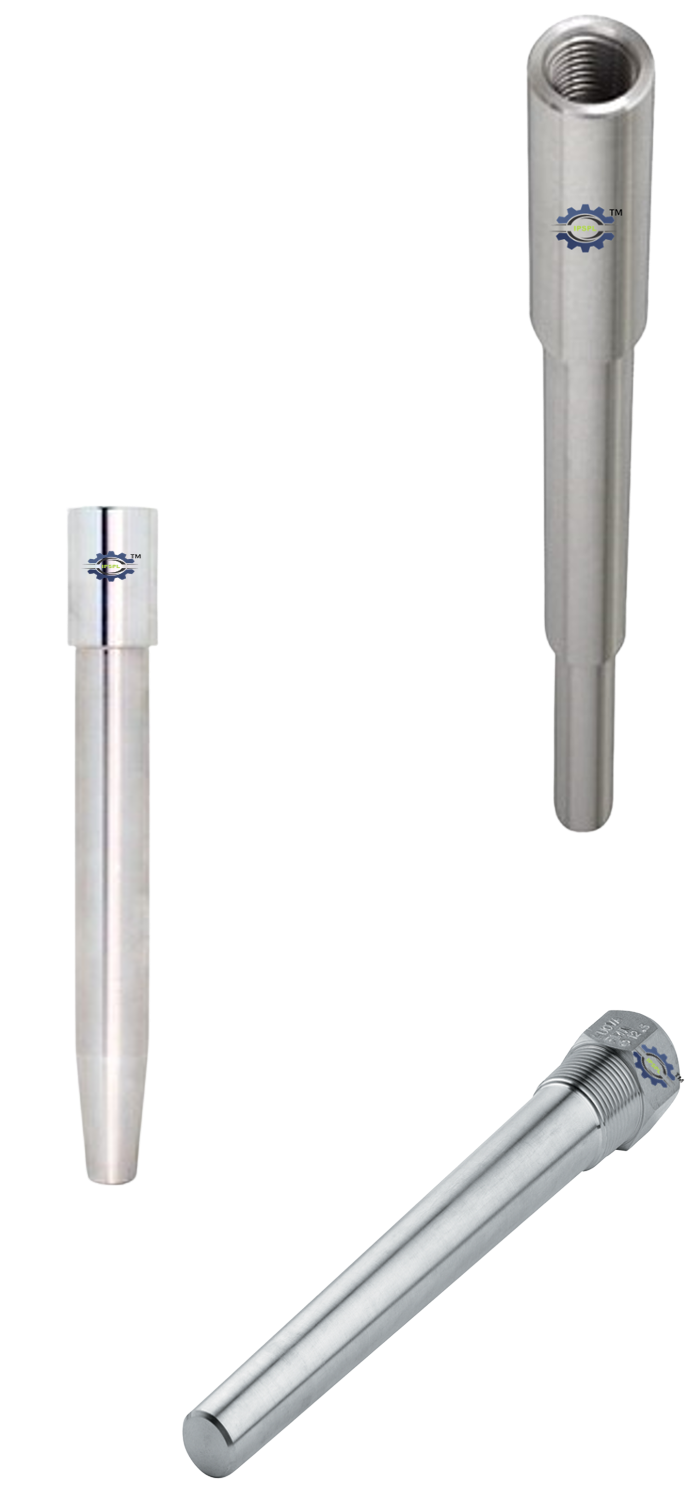

IPS-TW-07 - STAINLESS STEEL THERMOWELL - BAR STOCK (WELD IN / SOCKET WELD) TYPE
|
Material of Construction |
SS304 / SS310 / SS316 / SS446 / INCONEL / MONEL / HASTELLOY-C |
|
Instrument Connection |
1/2" / 3/4" / 1" -BSP / NPT (F) |
|
Process Connection |
Suitable to Standard Flanges |
|
Bore Size |
6.6 / 7 / 8.5 / 9.6 / 11 / 13 mm in Bar stock |
|
Head Type |
Round / Flange |
|
Extension Length |
45mm / 50mm / special requirement |
|
Insertion Length |
100 mm to 1000 mm |
|
Other Options |
Wake Frequency Calculation, Shank surface PTFE coating / Lining / |
|
Sleeve for Special materials |
