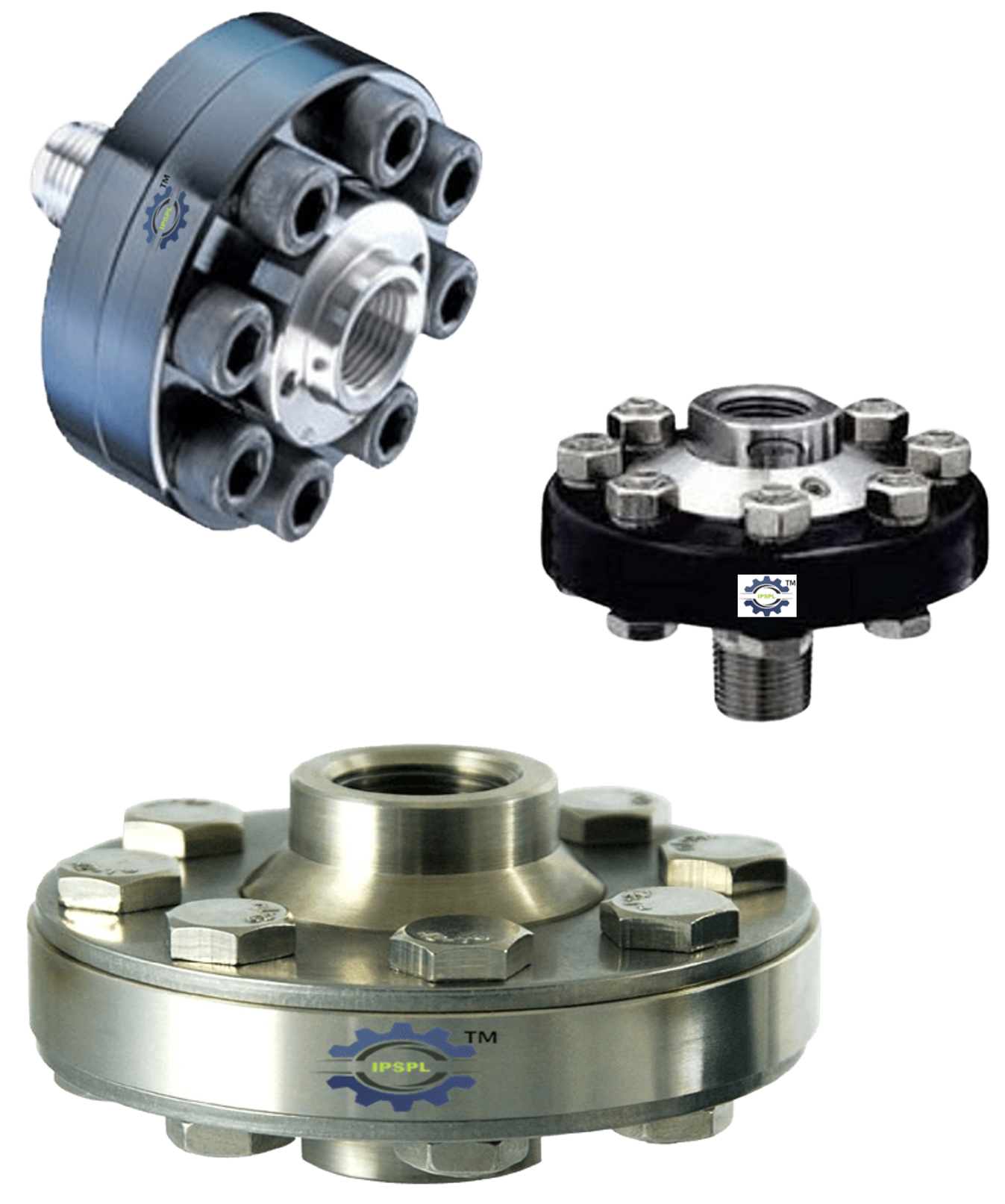

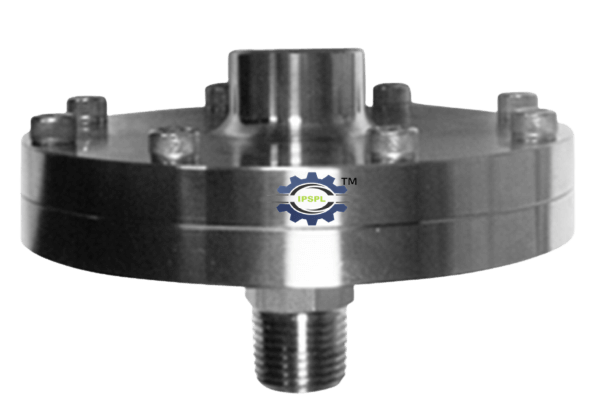

IPS-DS-01 - THREADED DIAPHRAGM SEAL DIRECT COUPLED TYPE
|
Pressure Ranges |
0-250<0-400 bar(OD110) |
|
Top Chamber |
SS304 |
|
Bottom Chamber |
SS316L / Monel / Inconel / PVC |
|
Diaphragm |
SS316L / Monel400 / Inconel600 / Hastelloy - C 276 / Tantalum / PTFE |
|
Instrument Connection |
1/4", 3/8", 1/2" -BSP / NPT (F) |
|
Process Connection |
1/4", 3/8", 1/2" - BSP / NPT- (M/F) |
|
Filling Liquid |
Silicon Oil / Glycerin / Food Grade Oil / Syltherm |
|
Option |
Capillary, Capillary with Armor tube |
|
Top & Bottom Chamber |
Made from solid Bar / Forged Bar |
Download
click here to download the datasheet

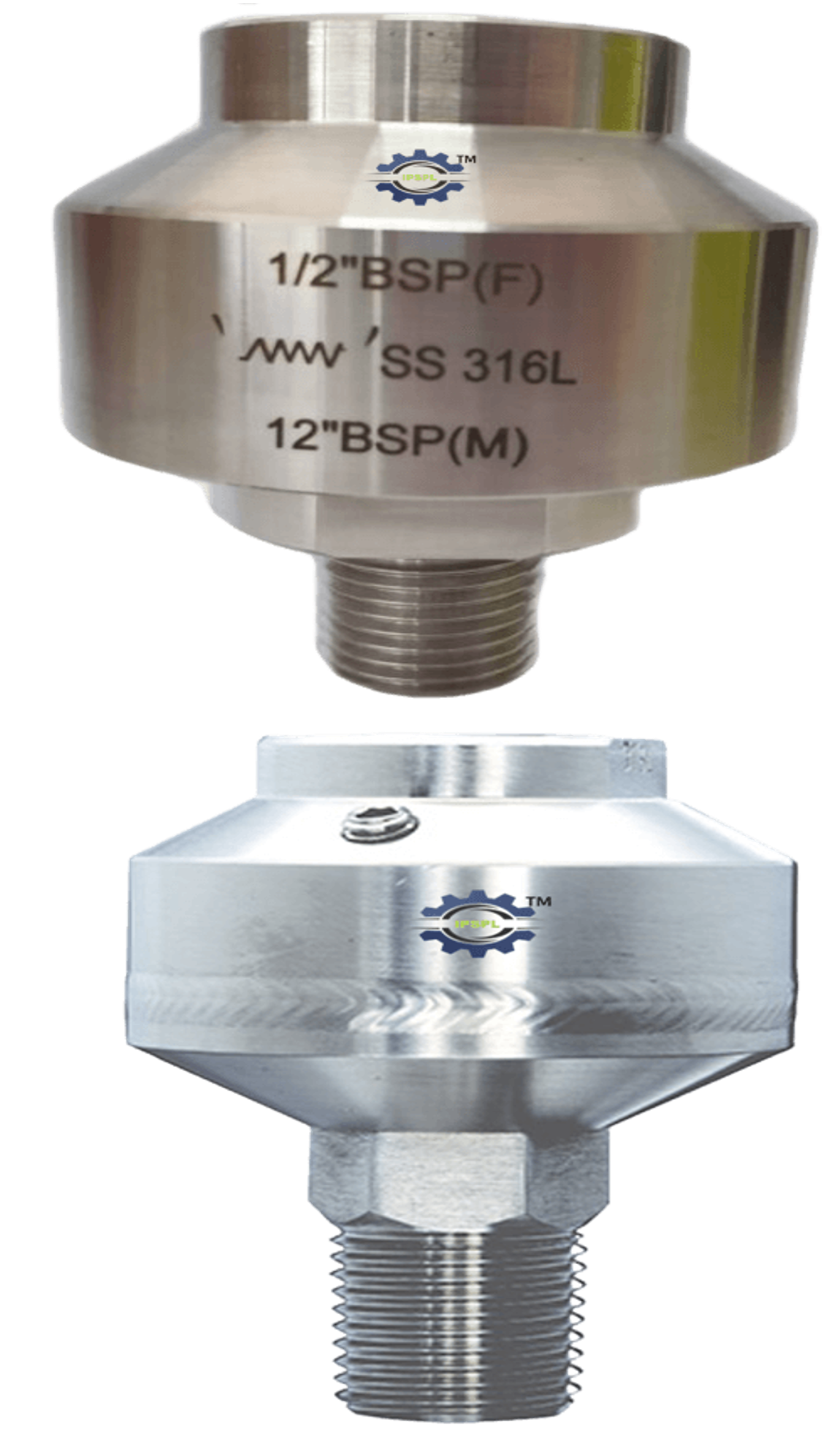

IPS-DS-02 - STAINLESS STEEL DIAPHRAGM SEAL FULL WELDED DIRECT COUPLED TYPE COMPACT DESIGN
|
Pressure Ranges |
-1 - 0, 0-1 to 0- 25 Bar |
|
Top Chamber |
SS304 |
|
Bottom Chamber |
SS316 |
|
Diaphragm |
SS316L |
|
Instrument Connection |
1/4" BSP / NPT (F) |
|
Process Connection |
1/4"- BSP / NPT- (M) |
|
Sealing Liquid |
Silicon Oil / Glycerin / Food Grade Oil / Syltherm |
|
Top & Bottom Chamber |
Welded Construction |
Download
click here to download the datasheet

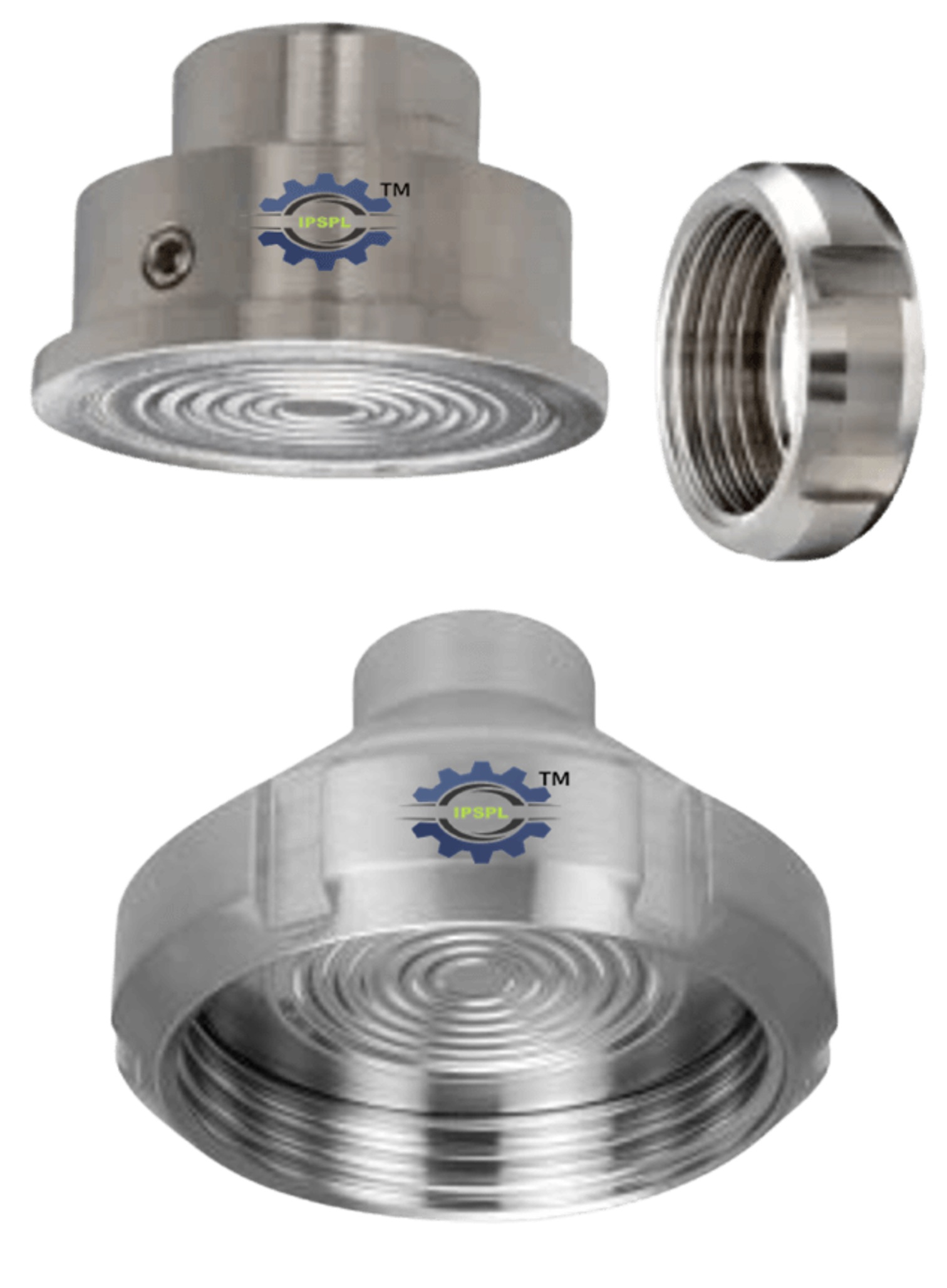

IPS-DS-03 - STAINLESS STEEL SANITARY DIAPHRAGM SEAL FLUSH DIAPHRAGM (FEMALE)
|
Pressure Ranges |
1 - 0 to 0- 2.5 Bar (2"), 0-4 to 0-10(1"/1.5"), 0-25 to 0-40(1/2") |
|
Top Chamber |
SMS / DIN SS316L -1" (DN25) ,1.5" (DN40), 2" (DN50)- Female Type |
|
Union Nut |
SMS / DIN - SS304 1" (DN25) ,1.5" (DN40), 2" (DN50) |
|
Instrument Connection |
1/4" / 1/2" - BSP / NPT (F) |
|
Diaphragm |
SS316L |
|
Sealing Gasket |
SILICON / VITON |
|
Seal Filling Liquid |
Food Grade Oil / Silicon Oil / Glycerin |
|
Optional |
Bottom Part / Gasket |
Download
click here to download the datasheet

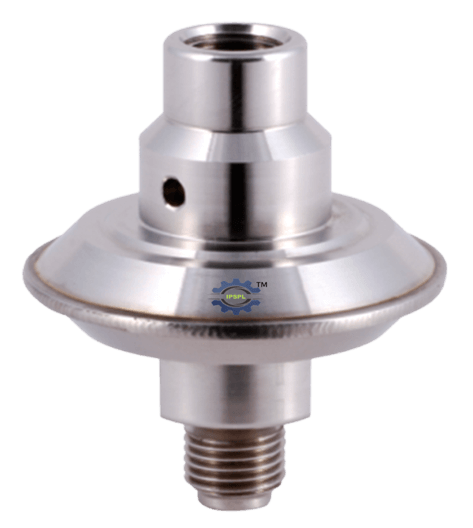

IPS-DS-04 - STAINLESS STEEL DIAPHRAGM SEAL FULL WELDED HEAVY DUTY MINI SEAL
|
Pressure Ranges |
-1 - 0, 0-1 to 0- 70 Bar (OD62.2 & OD 55) / 100 < 250 Bar (OD46.5) / 250 <600 bar (OD34.5) / 600<1000 bar (OD 28 ) |
|
Top Chamber |
SS304 |
|
Bottom Chamber |
SS316L / Monel / Inconel / Hastelloy- C |
|
Diaphragm |
SS316L / Monel / Inconel / Hastelloy - C / Tantalum |
|
Instrument Connection |
1/4"/ 3/8"/ 1/2" -BSP / NPT (F) |
|
Process Connection |
1/4",3/8",1/2" - BSP / NPT- ( M /F) / Special Connections |
|
Filling Liquid |
Silicon Oil / Glycerin / Food Grade Oil / Syltherm |
|
Top & Bottom Chamber |
Welded Construction |
Download
click here to download the datasheet

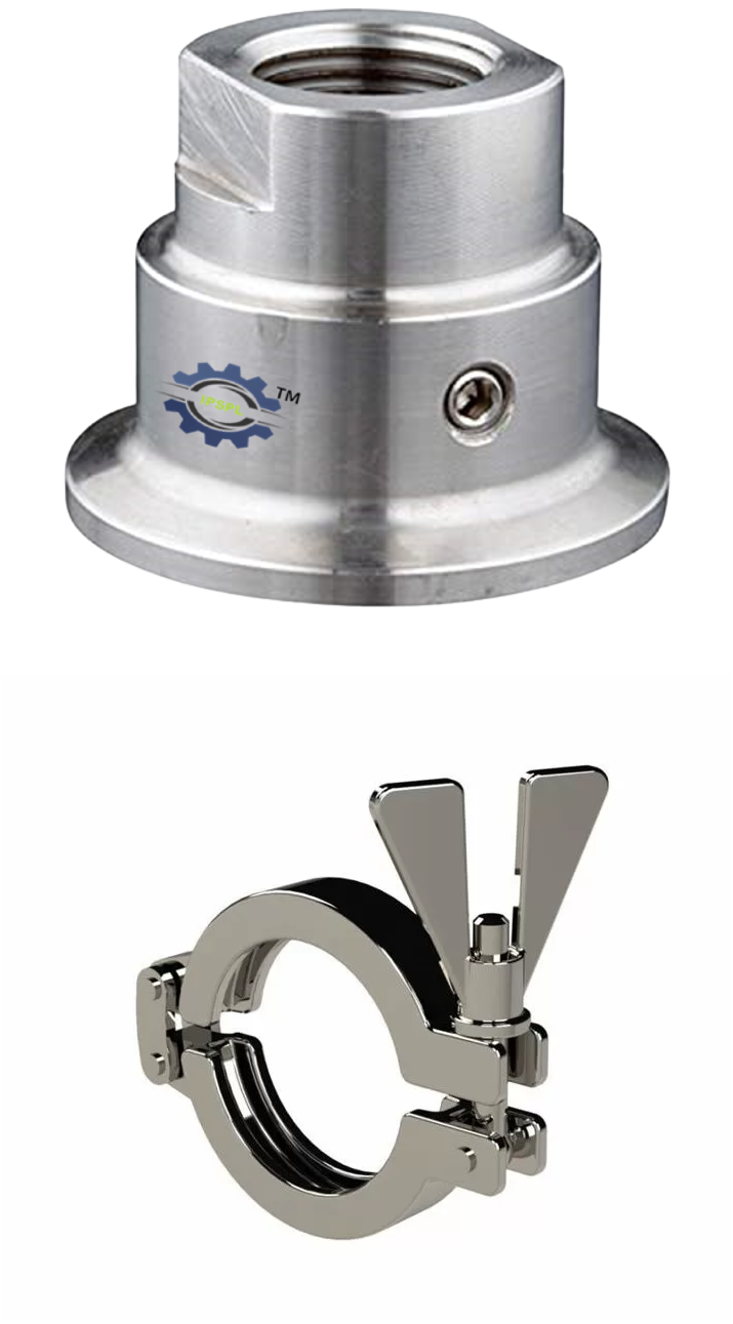

IPS-DS-05 - STAINLESS STEEL SANITARY DIAPHRAGM SEAL CLAMP TYPE
|
Pressure Ranges |
1 - 0 to 0- 2.5 Bar (2"), 0-4 to 0-10(1"/1.5"), 0-25 to 0-40(1/2") |
|
Top Chamber |
SS316L -1" (DN25) ,1.5" (DN40), 2" (DN50) - Triclamp Type |
|
Instrument Connection |
1/4" / 1/2" - BSP / NPT (F) |
|
Diaphragm |
SS316L |
|
Sealing Gasket |
Silicon |
|
Filling Liquid |
Food Grade Oil |
|
Option |
Suitable Size Triclamp, Bottom Matting Part & Gasket |
Download
click here to download the datasheet

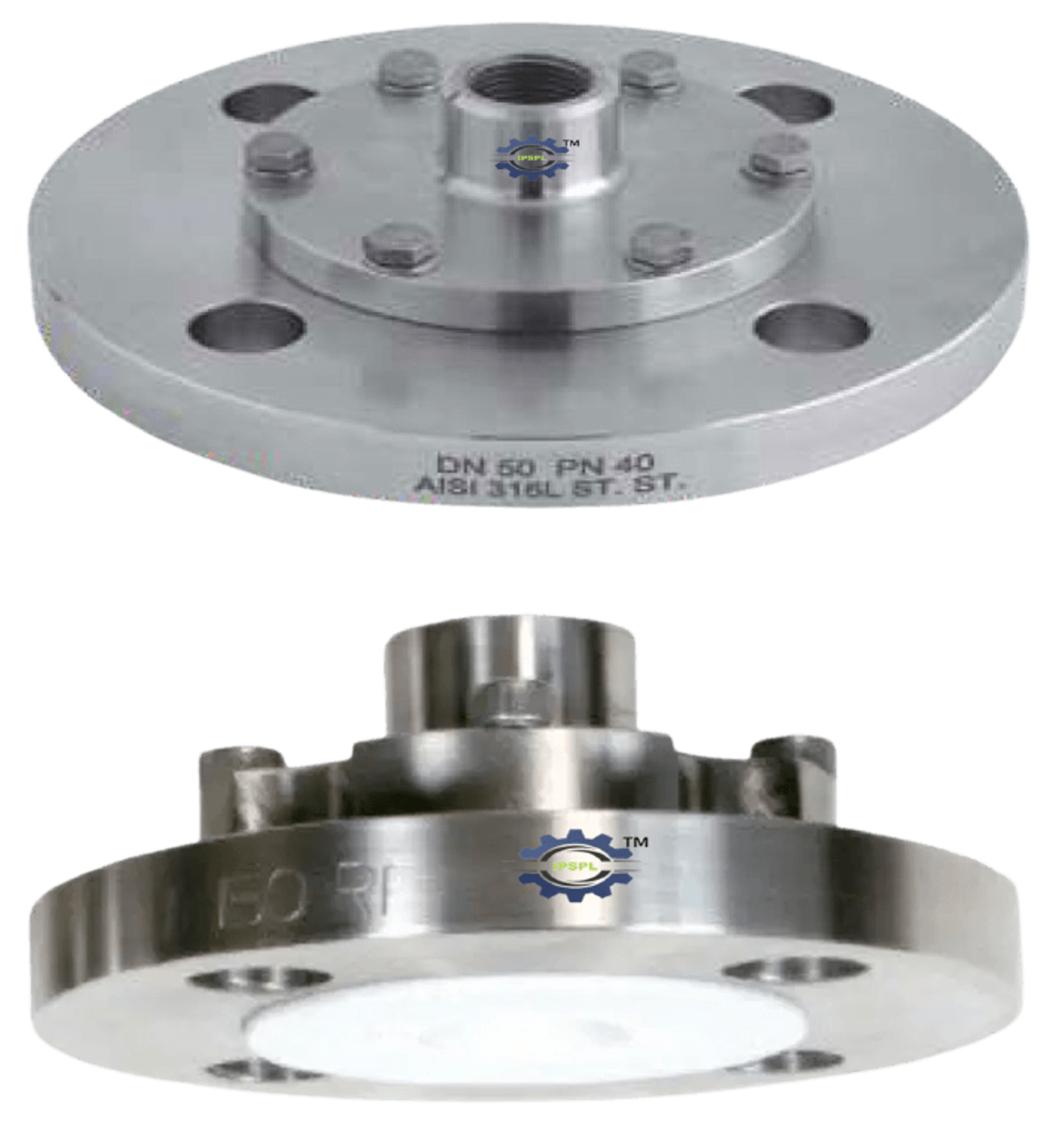

IPS-DS-06 - STAINLESS STEEL FLANGED DIAPHRAGM SEAL - FLANGE "I" SECTION TYPE
|
Range |
-1 - 0 to 0-21 bar / -1 - 0 to 0- 70 Bar / 0-100 to 0-400 bar |
|
Top Chamber |
SS316 / SS304 |
|
Instrument Connection |
1/2" - BSP / NPT (F) Standard |
|
Process Connection |
I-Section with Flange, size & class as per standard |
|
Bottom Chamber |
(pipe+flange+bottom ring) : SS316L/MONEL/PVC |
|
Diaphragm |
SS316L / Monel / Inconel / Hastelloy -C / PTFE / Tantalum |
|
Sealing Gasket |
PTFE / METAL GASKET |
|
Special Requirements |
1) PTFE Lining / PTFE Coating |
|
2) Capillary, Capillary with Armor tube |
|
|
3) Fitting Liquid - Silicon Oil/ Glycerin /Food Grade Oil / Syltherm |
Download
click here to download the datasheet
IPS-DS-07 - STAINELESS STEEL FLANGED DIAPHRAGM SEAL DIRECT FLANGED FLUSHED TYPE
|
Pressure Ranges |
-1 - 0 to 0-250 bar |
|
Flange Size Class |
As per standard |
|
Flange Material |
SS316/SS304/Monel / HAS - C276 / Inconel |
|
Instrument Connection |
1/4" / 1/2" - BSP / NPT (F) |
|
Diaphragm |
SS316L / Monel / Inconel / Hastelloy -C 276 / PTFE / Tantalum / Titanium |
|
Special Requirements |
1) PTFE Coating on diaphragm |
|
2) Capillary with Armor tube |
|
|
3) Filling Liquid - Silicon Oil / Glycerin / Syltherm |
Download
click here to download the datasheet
IPS-DS-08 - STAINLESS STEEL FLANGED DIAPHRAGM SEAL DIRECT FLANGED INSERT TYPE
|
Pressure Ranges |
-1 - 0 to 0-250 bar |
|
Flange Size Class |
As per standard |
|
Flange Material |
SS316/SS304 / Monel / HAS - C276 / Inconel |
|
Instrument Connection |
1/4" / 1/2" - BSP / NPT (F) |
|
Diaphragm |
SS316L / Monel / Inconel / Hastelloy - C / PTFE / Tantalum |
|
Special Requirements |
1) PTFE Film on diaphragm |
|
2) Capillary with Armour tube |
|
|
3) Sealing Liquid - Silicon Oil / Glycerin / Syltherm |
|
|
4) PTFE lining on flanges |
Download
click here to download the datasheet

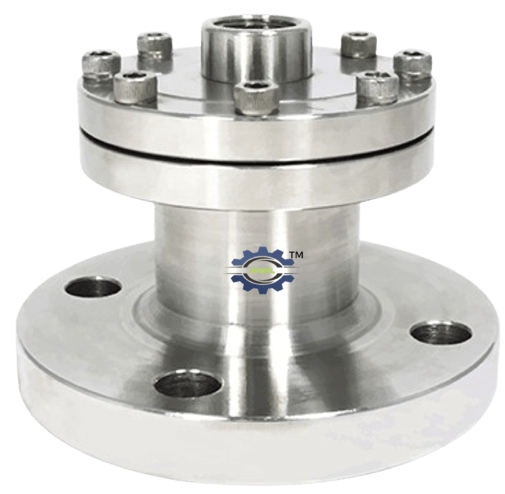

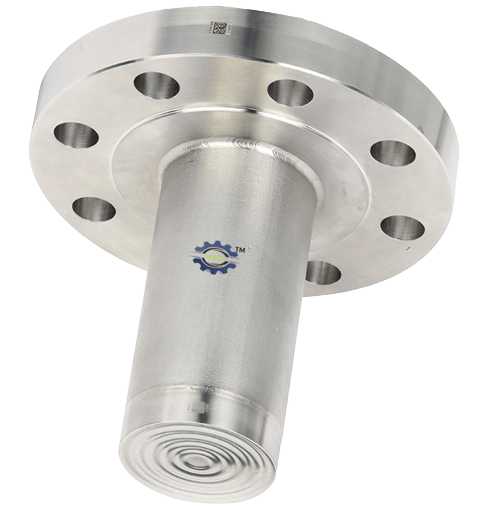

IPS-DS-09 - STAINLESS STEEL FLANGED DIAPHRAGM SEAL EXTENDED NECK TYPE
|
Pressure Ranges |
-1 - 0 to 0-250 bar |
|
Instrument Connection |
1/2" - BSP / NPT (F) - Standard |
|
Process Connection |
Extension Bar with Mounting Flange, Flange Size and Class as per Standard |
|
SS316/SS304/MONEL/INCONEL / CS |
|
|
Flange & Ext. Material |
SS316L / Monel / Inconel / Hastelloy - C / Tantalum |
|
Diaphragm |
As per requirement, |
|
Extension Neck Length |
150 mm Standard |
|
Special Requirements |
1) PTFE Coating |
|
2) Capillary, Capillary with Armor tube |
|
|
3) Fitting Liquid - Silicon Oil/ Glycerin /Food Grade Oil / Syltherm |
Download
click here to download the datasheet
IPS-DS-10 - THREADED DIAPHRAGM SEAL SLIP RING COUPLED TYPE
|
Pressure Ranges |
-1 - 0, 0-1 to 0- 250 Bar - Steel Metal Ring |
|
Top Chamber |
SS316 / SS304 |
|
Bottom Chamber |
SS316L / Monel / Inconel / PVC |
|
Diaphragm |
SS316L / Monel400 / Inconel600 / Hastelloy -C 276 / Tantalum / PTFE |
|
Instrument Connection |
1/4", 3/8", 1/2" -BSP / NPT (F) |
|
Process Connection |
1/4", 3/8", 1/2" - BSP /NPT- (M /F) |
|
Filling Liquid |
Silicon Oil / Glycerin / Food Grade Oil / Syltherm |
|
Option |
Capillary with Armor tube |
|
Top & Bottom Chamber |
Made from solid Bar with Steel Ring / SS / Metal Ring |
Download
