Category vise Product

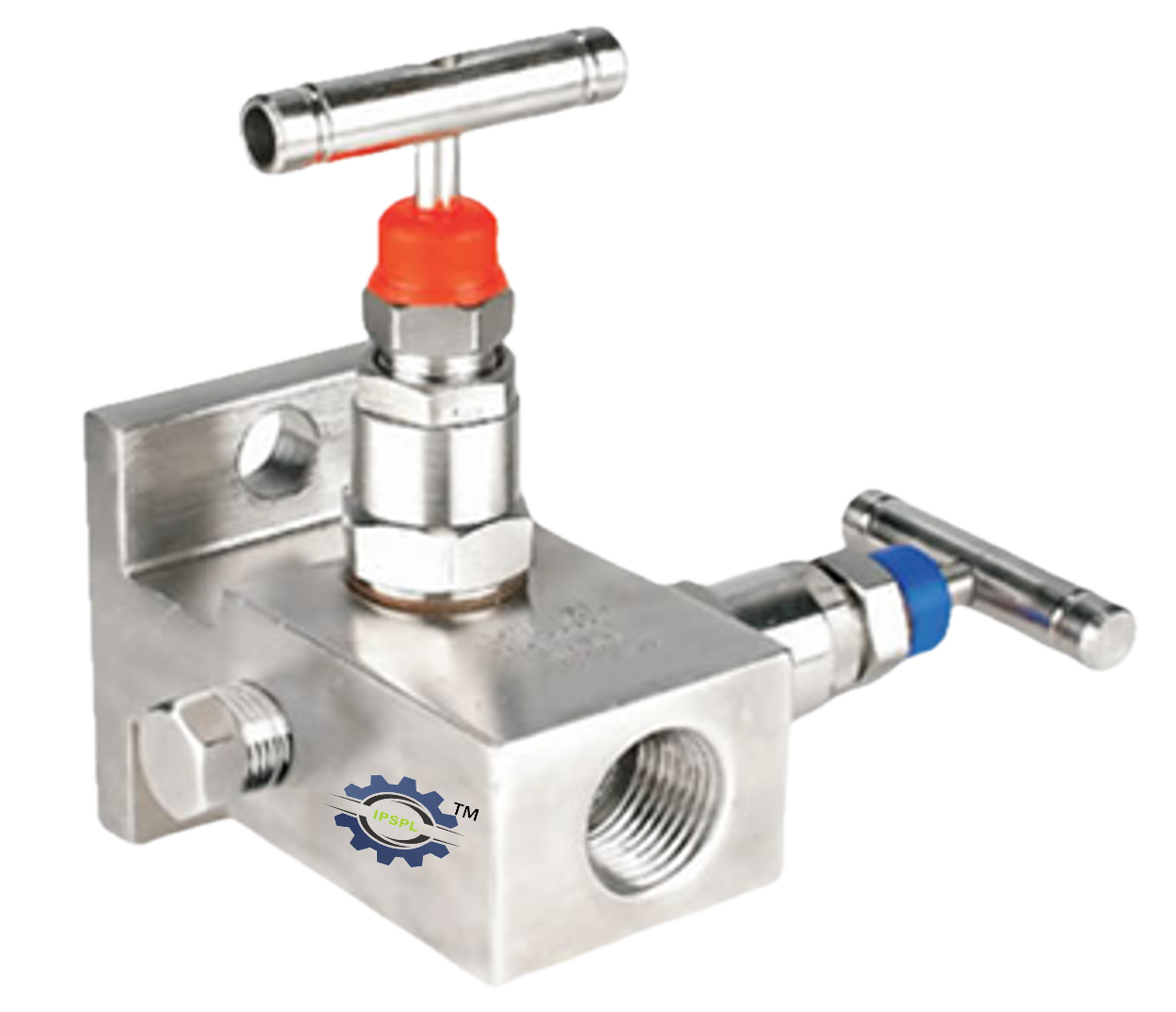

IPS-MV-PF2-01 -STAINLESS STEEL MANIFOLD VALVE - TWO WAY (PIPE TO FLANGE MOUNTING)
|
Models |
Manifold : 2 valves : 1 isolation valve , 1 vent valve Drain Port Plugged |
|
Needle Types |
Hard Seated / Soft Seated |
|
Mounting |
Pipe to pipe , Direct Type |
|
Process & Instr. Connection Size |
1/4“ / 1/2" - BSP / NPT |
|
Process x Instr. Connection Form |
Female x Female |
|
Pressure Rating |
6000 psi |
|
Stem Packing |
PTFE / Grafoil |
|
Material Construction |
SS304 / SS310 / SS316 / INCONEL / MONEL / HASTELLOY-C |
|
Options |
NACE MR0175/MR0103 / Oxygen Service |
Download
click here to download the datasheet

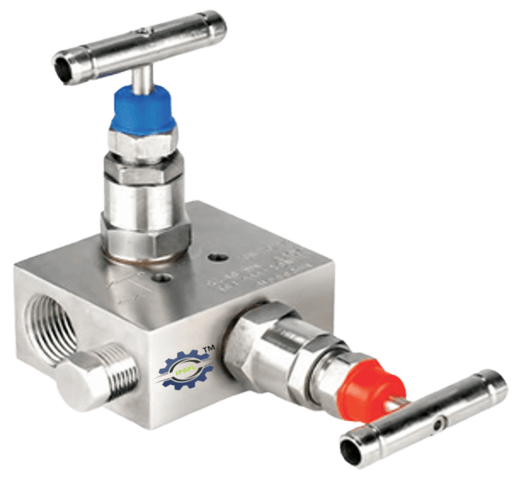

IPS-MV-PP2-01 - STAINLESS STEEL MANIFOLD VALVE - TWO WAY (PIPE TO PIPE MOUNTING)
|
Models |
Manifold : 2 valves : 1 isolation valve , 1 vent valve Drain Port Plugged |
|
Needle Types |
Hard Seated / Soft Seated |
|
Mounting |
Pipe to pipe , Direct Type |
|
Process & Instr. Connection Size |
1/4“ / 1/2" - BSP / NPT |
|
Process x Instr. Connection Form |
Female x Female |
|
Pressure Rating |
6000 psi |
|
Stem Packing |
PTFE / Grafoil |
|
Material Construction |
SS304 / SS310 / SS316 / INCONEL / MONEL / HASTELLOY-C |
|
Options |
NACE MR0175/MR0103 / Oxygen Service |
Download
click here to download the datasheet

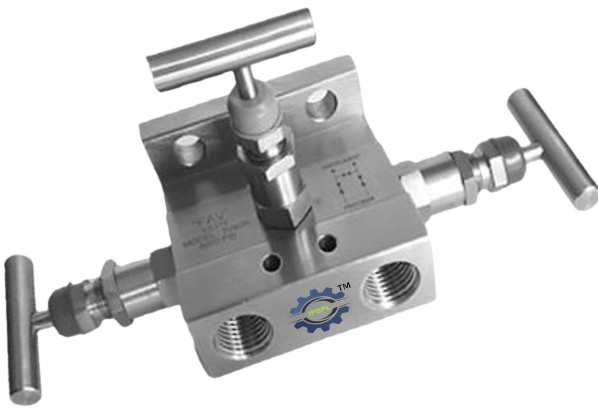

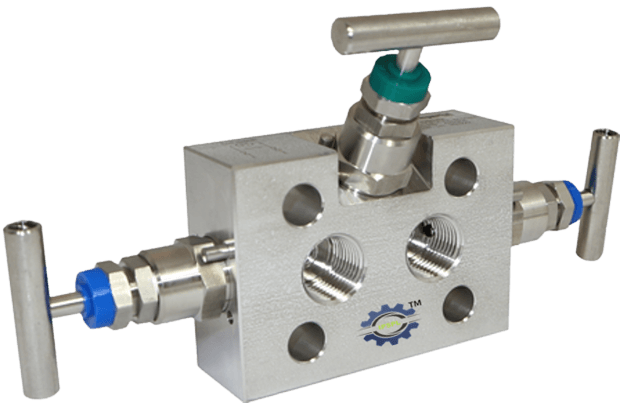

IPS-MV-PF3-03 - STAINLESS STEEL MANIFOLD VALVE - THREE WAY (PIPE TO FLANGE & FLANGE TO FLANGE MOUNTING)
|
Models |
Manifold : 3 valves : 2 isolation valve, 1 Equalizer Valve |
|
Needle Types |
Hard Seated / Soft Seated |
|
Mounting |
Pipe to pipe, Direct Type |
|
Process & Instr. Connection Size |
1/4“ / 1/2" -BSP / NPT |
|
Process x Instr. Connection Form |
F x F , M x F, M x M |
|
Pressure Rating |
6000 psi |
|
Stem Packing |
PTFE / Grafoil |
|
Material Construction |
SS304 / SS310 / SS316 / INCONEL / MONEL / HASTELLOY - C |
|
Options |
NACE MR0175/MR0103 / Oxygen Service |
Download
click here to download the datasheet
IPS-MV-PP3-03 - STAINLESS STEEL MANIFOLD VALVE - THREE WAY (PIPE TO PIPE MOUNTING)
|
Models |
Manifold : 3 valves : 2 isolation valve, 1 Equalizer Valve |
|
Needle Types |
Hard Seated / Soft Seated |
|
Mounting |
Pipe to pipe, Direct Type |
|
Process & Instr. Connection Size |
1/4“ / 1/2" -BSP / NPT |
|
Process x Instr. Connection Form |
F x F , M x F, M x M |
|
Pressure Rating |
6000 psi |
|
Stem Packing |
PTFE / Grafoil |
|
Material Construction |
SS304 / SS310 / SS316 / INCONEL / MONEL / HASTELLOY - C |
|
Options |
NACE MR0175/MR0103 / Oxygen Service |
Download
click here to download the datasheet
IPS-MV-PF4-04 - STAINLESS STEEL MANIFOLD VALVE - FOUR WAY
|
Models |
Manifold : 2 - Isolation valves, 2 Vent Valves |
|
Needle Types |
Hard Seated / Soft Seated |
|
Mounting |
Pipe to pipe, Direct Type |
|
Process & Instr. Connection Size |
Threaded -1/2" -BSP / NPT |
|
Process x Instr. Connection Form |
Flange - Co-planner (DIN 19213) |
|
Pressure Rating |
6000 psi |
|
Stem Packing |
PTFE / Grafoil |
|
Material Construction |
SS304 / SS310 / SS316 / INCONEL / MONEL / HASTELLOY - C |
|
Options |
NACE MR0175/MR0103 / Oxygen Service |
Download
click here to download the datasheet

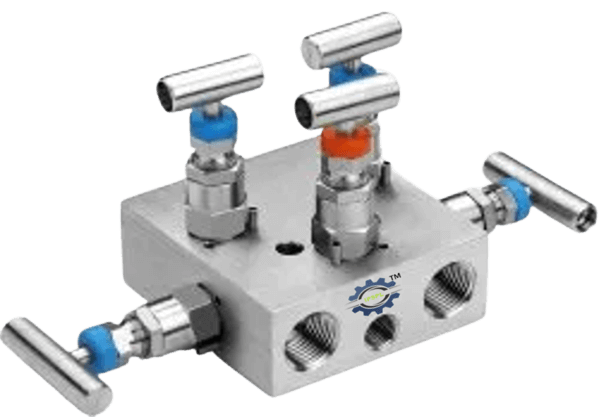

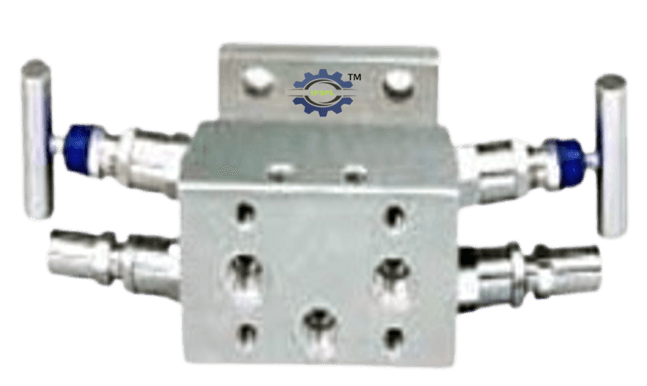

IPS-MV-PF5-05 - STAINLESS STEEL MANIFOLD VALVE - FIVE WAY (PIPE TO FLANGE MOUNTING)
|
Models |
Manifold : 5 valves : 2 isolation, 1 Equaliseur, 2 Vent, 2 Drain Port Plugged |
|
Needle Types |
Hard Seated / Soft Seated |
|
Mounting |
Pipe to pipe, Direct Type |
|
Process & Instr. Connection Size |
1/4"/ 1/2" -BSP / NPT |
|
Process x Instr. Connection Form |
F x F , M x F, M x M |
|
Pressure Rating |
6000 psi |
|
Stem Packing |
PTFE / Grafoil |
|
Material Construction |
SS304 / SS310 / SS316 / INCONEL / MONEL / HASTELLOY - C |
|
Options |
NACE MR0175/MR0103 / Oxygen Service |
Download
click here to download the datasheet

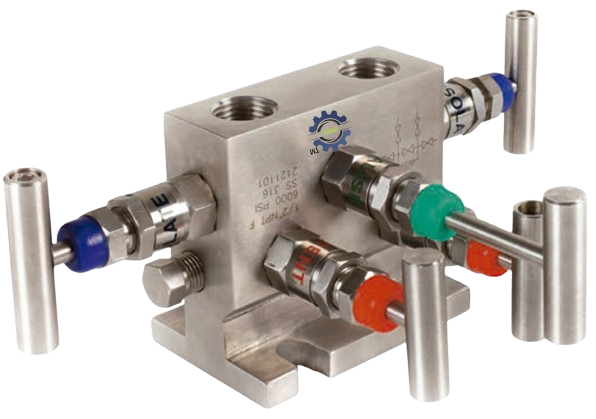

IPS-MV-PP5-05 - STAINLESS STEEL MANIFOLD VALVE - FIVE WAY (PIPE TO PIPE MOUNTING)
|
Models |
Manifold : 5 valves : 2 isolation, 1 Equaliseur, 2 Vent, 2 Drain Port Plugged |
|
Needle Types |
Hard Seated / Soft Seated |
|
Mounting |
Pipe to pipe, Direct Type |
|
Process & Instr. Connection Size |
1/4",/1/2" -BSP / NPT |
|
Process x Instr. Connection Form |
F x F , M x F, M x M |
|
Pressure Rating |
6000 psi |
|
Stem Packing |
PTFE / Grafoil |
|
Material Construction |
SS304 / SS310 / SS316 / INCONEL / MONEL / HASTELLOY - C |
|
Options |
NACE MR0175/MR0103 / Oxygen Service |
Download
click here to download the datasheet

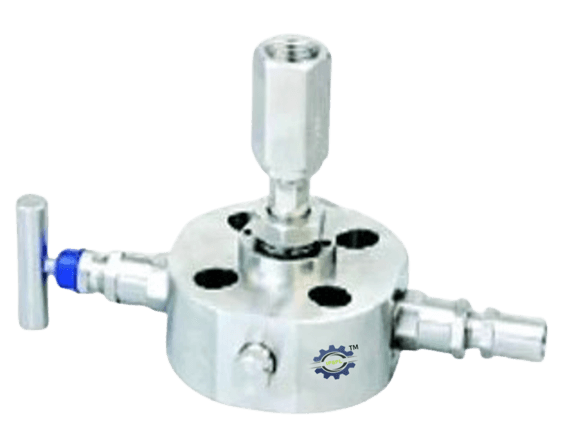

IPS-MF-SBB-01 - STAINLESS STEEL MONOFLANGE SINGLE BLOCK & BLEED VALVE
|
Model |
Monoflange Double Block & Bleed Valve |
|
Flange Size |
1/2" NB TO 2" NB |
|
Standard of Construction |
ANSI B16.5 |
|
Outlet Standard |
1/2" NPT (F) |
|
Vent Standard |
1/4" NPT (F) |
|
Other Connections |
Threaded, Tude End, Socket Weld |
|
Flange Pressure Rating |
150#, 300#, 600#, 900#, 1500#, 2500# |
|
Packing & Seat Material |
PTFE Graphoil, PEEK |
|
Body Type |
Bar Stock, Forged |
|
Handle |
T Handle |
|
Material |
SS 316, SS 304, SS 316 TI, Duplex, Inconel, Super Duplex, Hastelloy, Monel, Alloy 20, SMO 254, 904L, Titanium & All other Alloys |
Download
click here to download the datasheet
IPS-MF-DBB-03 - STAINLESS STEEL MONOFLANGE SINGLE BLOCK & BLEED VALVE WITH SYPHONE
|
Model |
Monoflange Double Block & Bleed Valve |
|
Flange Size |
1/2" NB TO 2" NB |
|
Standard of Construction |
ANSI B16.5 |
|
Outlet Standard |
1/2" NPT (F) |
|
Vent Standard |
1/4" NPT (F) |
|
Other Connections |
Threaded, Tude End, Socket Weld |
|
Flange Pressure Rating |
150#, 300#, 600#, 900#, 1500#, 2500# |
|
Packing & Seat Material |
PTFE Graphoil, PEEK |
|
Body Type |
Bar Stock, Forged |
|
Handle |
T Handle |
|
Material |
SS 316, SS 304, SS 316 TI, Duplex, Inconel, Super Duplex, Hastelloy, Monel, Alloy 20, SMO 254, 904L, Titanium & All other Alloys |
Download
click here to download the datasheet

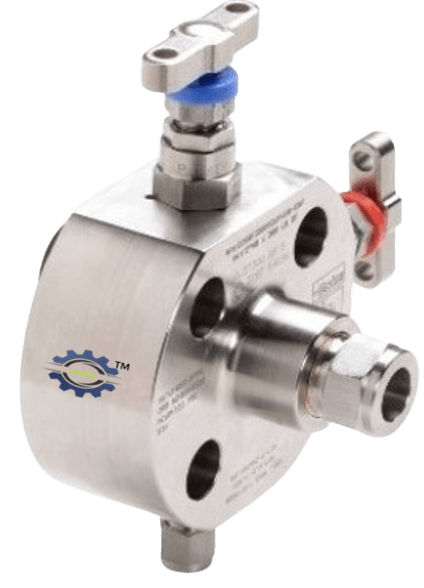

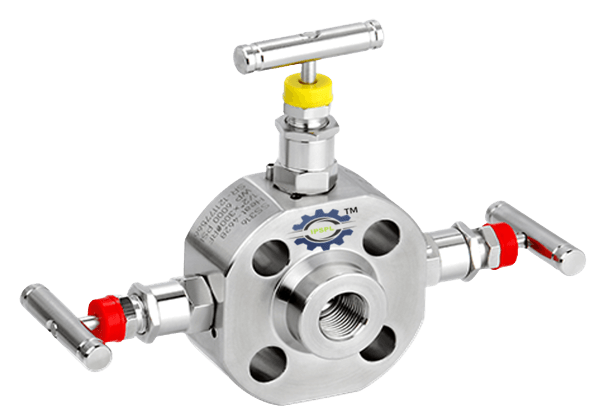

IPS-MF-DBB-01 - STAINLESS STEEL MONOFLANGE DOUBLE BLOCK & BLEED VALVE
|
Model |
Monoflange Double Block & Bleed Valve |
|
Flange Size |
1/2" NB TO 2" NB |
|
Standard of Construction |
ANSI B16.5 |
|
Outlet Standard |
1/2" NPT (F) |
|
Vent Standard |
1/4" NPT (F) |
|
Other Connections |
Threaded, Tude End, Socket Weld |
|
Flange Pressure Rating |
150#, 300#, 600#, 900#, 1500#, 2500# |
|
Packing & Seat Material |
PTFE Graphoil, PEEK |
|
Body Type |
Bar Stock, Forged |
|
Handle |
T Handle |
|
Material |
SS 316, SS 304, SS 316 TI, Duplex, Inconel, Super Duplex, Hastelloy, Monel, Alloy 20, SMO 254, 904L, Titanium & All other Alloys |
Download
click here to download the datasheet

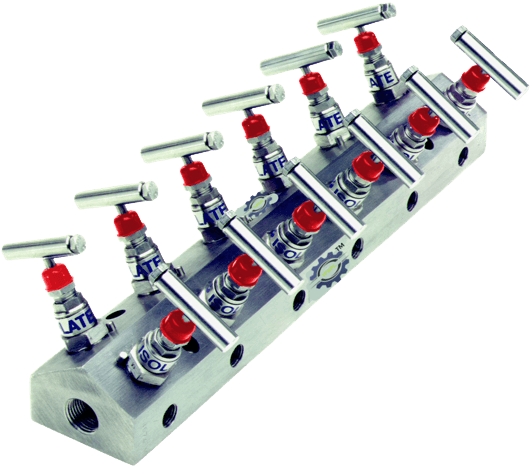

IPS-DM-01 - STAINLESS STEEL DISTRIBUTION MANIFOLD VALVE
|
Model |
Distribution Manifold |
|
Body Size |
1" NB TO 4" NB |
|
Length |
8" or Larger |
|
Number of Outlet Ports |
2 ways to 20 ways |
|
Valve Type |
Ball Valve & Needle Valve |
|
Valve Connection |
Female Thread, Male Thread & Tube End |
|
Connection Size |
Upto 1/2" |
|
Inlet & Outlet Connection |
Ball Valve, Needle Valve & Flanged |
|
Working Pressure |
Upto 10,000 psi |
|
Threads |
NPT, BSPP, BSPT, G & M20x 1.5 |
|
Material |
AISI 316 SS |
Download
click here to download the datasheet
IPS-MB-01 - MILD STEEL OR STANLESS STEEL MOUNTING BRACKETS
|
Model |
Mounting Bracket for Instruments |
|
Material |
AISI 316 SS, AISI 304 SS, CS etc |
Download
click here to download the datasheet
