Category vise Product

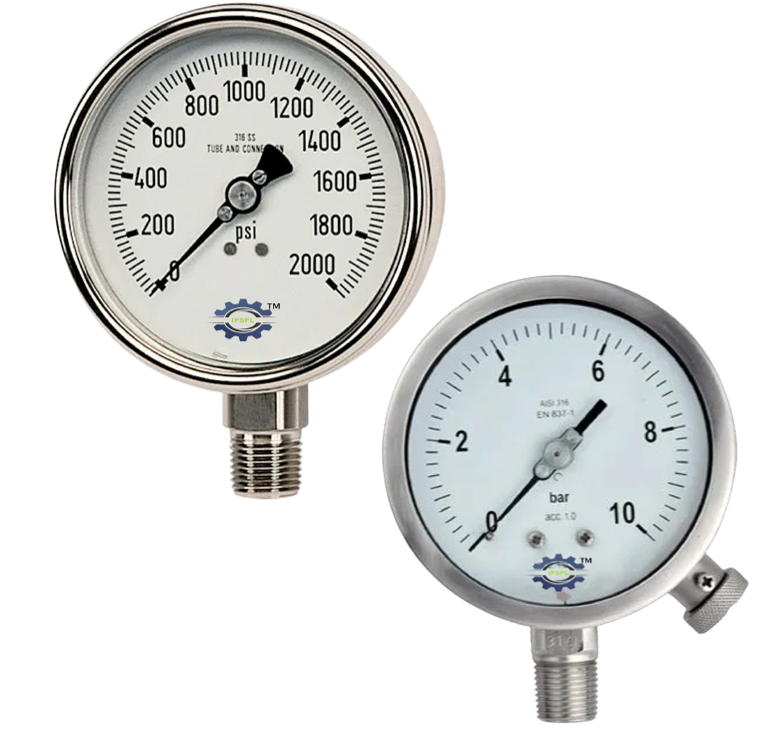

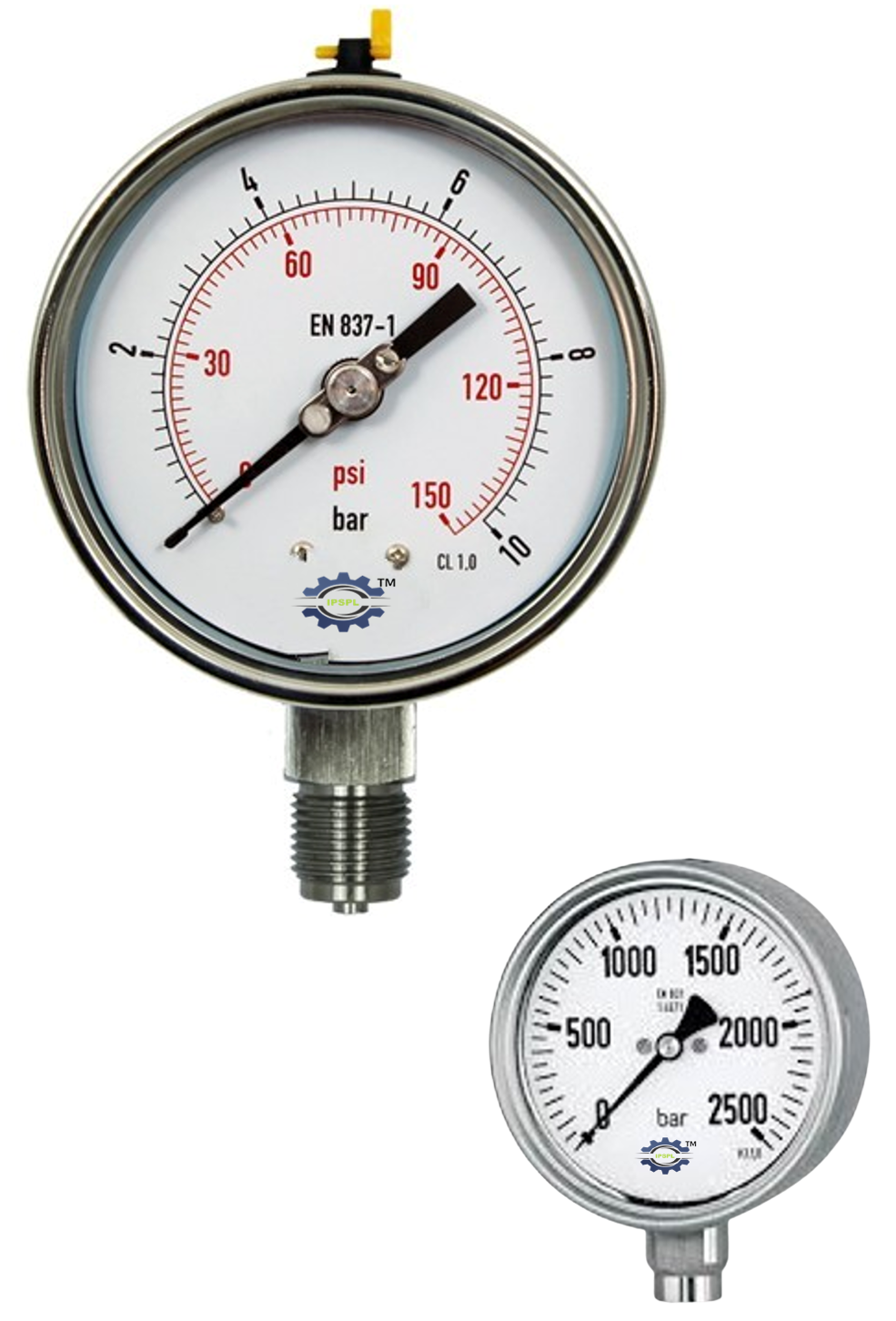

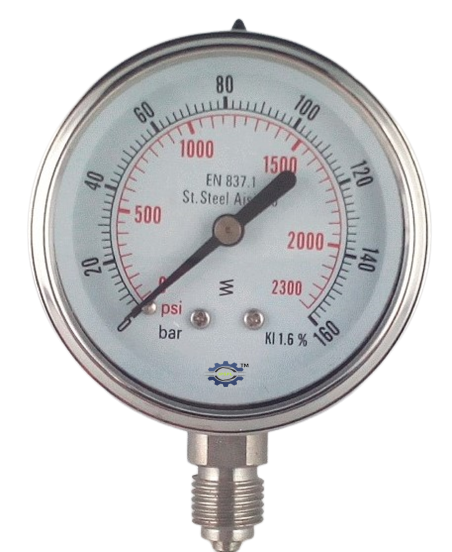

IPS-PG-01 - ALL STAINLESS STEEL PRECISION PRESSURE GAUGE
|
Dial Size |
DN63 / DN100 / DN150 / DN250 (2.5" / 4" / 6" / 10" ) |
|
Range |
-1 to 0 , 0-1 to 0-2500 Bar |
|
Accuracy |
±1% / CL 1 P.S. |
|
Mounting |
Bottom / Lower Back / Center Back |
|
Process Connection |
1/4" / 1/2"-BSP / NPT Standard |
|
Ingress Protection |
IP68 |
|
Execution |
Fillable / Dry / Filled |
|
Bourdon Tube & Socket |
SS316L / MONEL -TIG WELDED |
|
Case & Bezel |
SS304 / SS316 |
|
Optional |
External Zero Adjustment / 0.5 % Acc / Case / Bezel Electro Plating / DIN Style Case |
Download
click here to download the datasheet
IPS-PG-02 - ALL STAINLESS STEEL PRECISION PRESSURE GAUGE (SMALL SIZE)
|
Dial Size |
DN50 / DN63 / D80 (2" / 2.5" / 3.1") |
|
Range |
-1 to 0 , 0-1 to 0-1000 Bar |
|
Accuracy |
±1.6% / CL 1 P.S. |
|
Mounting |
Bottom / Center Back |
|
Process Connection |
1/4" / 3/8"-BSP / NPT Standard |
|
Ingress Protection |
IP67 |
|
Execution |
Fillable / Dry / Filled |
|
Bourdon Tube & Socket |
SS316L / MONEL -TIG WELDED |
|
Case & Bezel |
SS304 / SS316 |
|
Optional |
1% Acc / Case / Bezel Electro Plating / DIN Style Case |
Download
click here to download the datasheet
IPS-PG-03 - ALL STAINLESS STEEL PRECISION PRESSURE GAUGE (DIN CASE)
|
Dial Size |
DN63 / DN100 / DN150 (2.5" / 4" / 6") |
|
Range |
-1 to 0 , 0-1 to 0-2500 Bar |
|
Accuracy |
±1% / CL 1 P.S. |
|
Mounting |
Bottom / Lower Back / Center Back |
|
Process Connection |
1/4" / 1/2"-BSP / NPT Standard |
|
Ingress Protection |
IP68 |
|
Execution |
Fillable / Dry / Filled |
|
Bourdon Tube & Socket |
SS316L / MONEL -TIG WELDED |
|
Case & Bezel |
SS304 / SS316 |
|
Optional |
External Zero Adjustment / 0.5 % Acc / Case / Bezel Electro Plating |
Download
click here to download the datasheet

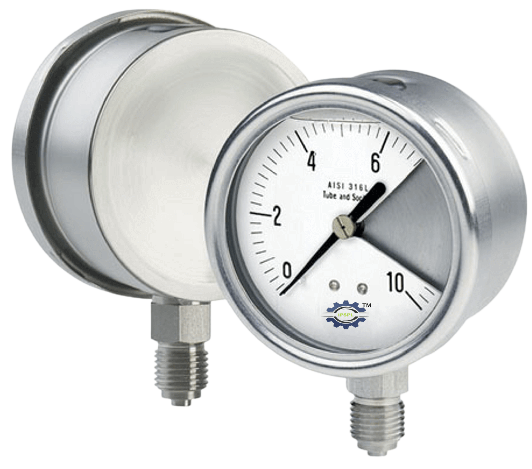

IPS-PG-04 - ALL STAINLESS STEEL SOLID FRONT SAFETY PRESSURE GAUGE
|
Dial Size |
DN63 / DN100 / DN150 (2.5" / 4" / 6") |
|
Range |
-1 to 0 , 0-1 to 0-2500 Bar |
|
Accuracy |
±1% / CL 1 P.S. |
|
Mounting |
Bottom / Lower Back / Center Back |
|
Process Connection |
1/4" / 1/2"-BSP / NPT Standard |
|
Ingress Protection |
IP68 |
|
Execution |
Fillable / Dry / Filled |
|
Bourdon Tube & Socket |
SS316L / MONEL -TIG WELDED |
|
Case & Bezel |
SS304 / SS316 |
|
Optional |
External Zero Adjustment / 0.5 % Acc / Case / Bezel Electro Plating |
Download
click here to download the datasheet

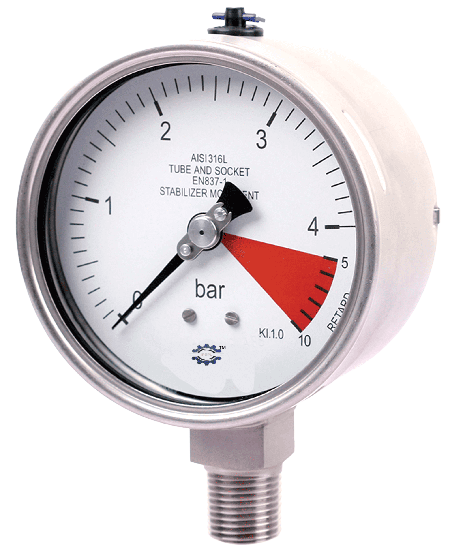

IPS-PG-05 - ALL STAINLESS STEEL HIGH OVERPRESSURE SAFETY GAUGE
|
Dial Size |
DN63 / DN100 / DN150 (2.5" / 4" / 6") |
|
Range |
-1 to 0 , 0-1 to 0-2500 Bar |
|
Accuracy |
±1% / CL 1 P.S. (±3.0% FOR END SCALE (END SCALE IS COVERED WITH TRIANGLE) |
|
Mounting |
Bottom / Lower Back / Center Back |
|
Process Connection |
1/4" / 1/2"-BSP / NPT Standard |
|
Ingress Protection |
IP68 |
|
Execution |
Fillable / Dry / Filled |
|
Bourdon Tube & Socket |
SS316L / MONEL -TIG WELDED |
|
Case & Bezel |
SS304 / SS316 |
|
Optional |
External Zero Adjustment / 0.5 % Acc / Case / Bezel Electro Plating |
Download
click here to download the datasheet

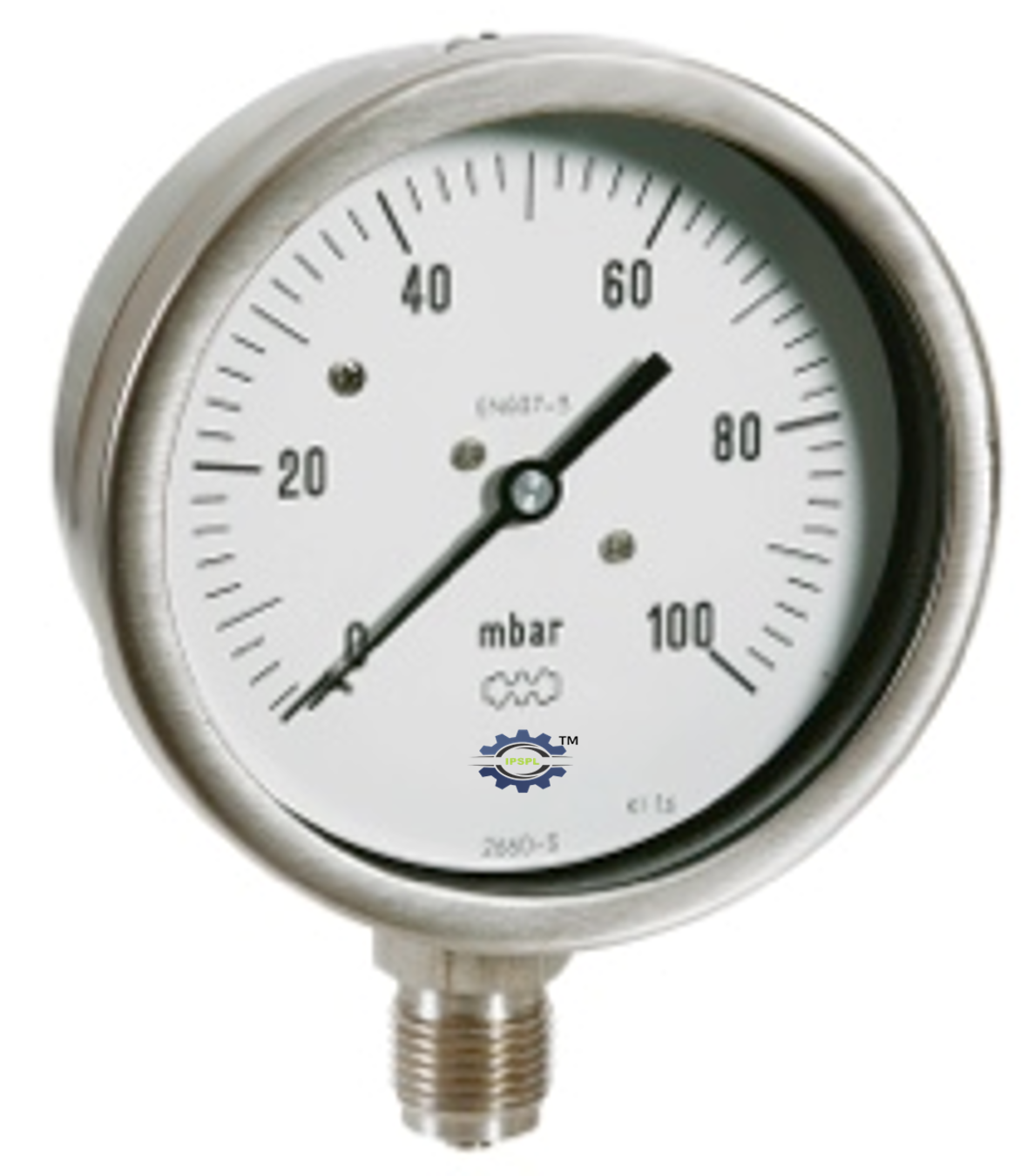

IPS-PG-06 - ALL STAINLESS STEEL CAPSULE PRESSURE GAUGE
|
Dial Size |
DN63 / DN100 / DN150 (2.5" / 4" / 6") |
|
Range |
25 mbar ….. 600mbar Compound and pressure ranges |
|
Accuracy |
±1.6% / CL1.6 F.S. |
|
Mounting |
Bottom / Lower Back / Center Back |
|
Process Connection |
1/4" / 3/8" / 1/2"-BSP / NPT Standard |
|
Ingress Protection |
IP65 |
|
Execution |
Dry / Fillable for Ranges above 300 mbar |
|
Capsule & Socket |
SS316L / Aluminium |
|
Case & Bezel |
SS304 / SS316 |
Download
click here to download the datasheet

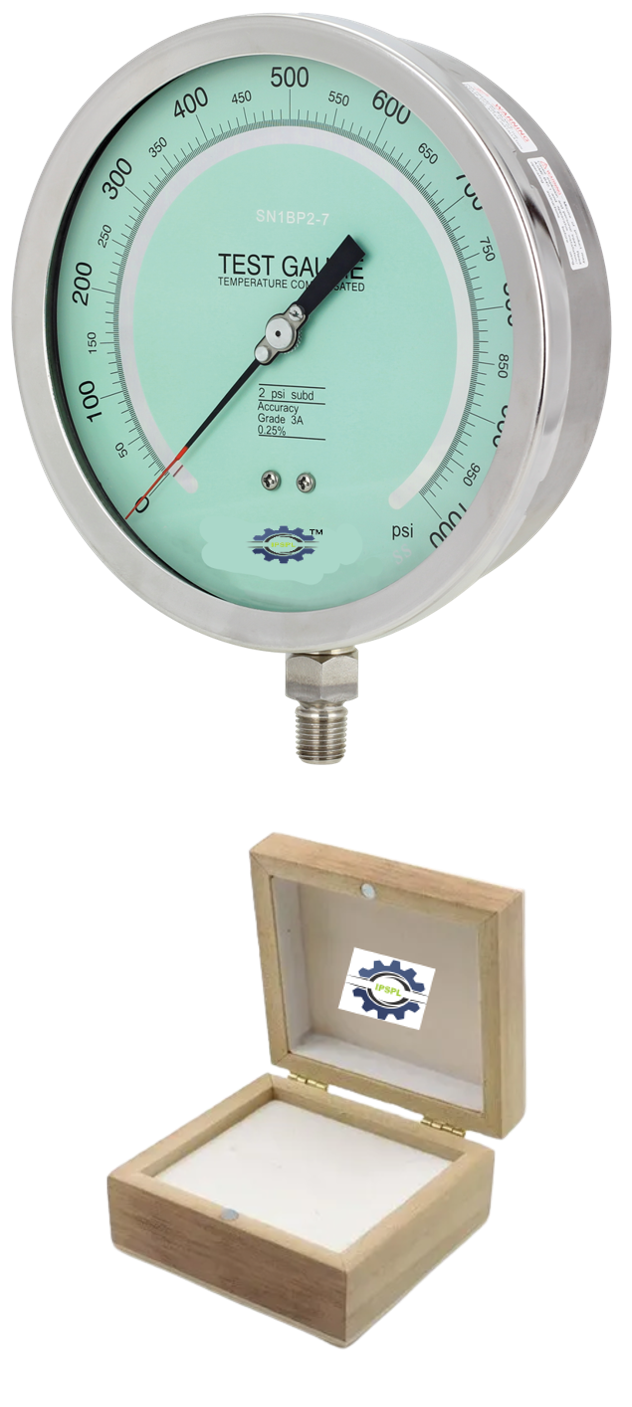

IPS-PG-07 - STAINLESS STEEL CASE TEST GAUGE (ACC. ±0.25%)
|
Dial Size |
DN150 / DN250 / DN300 |
|
Range |
-1 to 0 , 0-1 to 0-1600 Bar, Reference Standard : EN837-1 |
|
Accuracy |
±0.25% / CL 0.25 |
|
Movement |
Jewel Bearing |
|
Mounting |
Bottom / Lower Back |
|
Process Connection |
1/2"-BSP / NPT |
|
Ingress Protection |
IP68 |
|
Execution |
Dry |
|
Bourdon Tube & Socket |
Beryllium Copper & SS316L / Copper alloy |
|
Case & Bezel |
SS304 / Steel Case Powder coated |
|
Note |
Dial with anti parallax mirror band, Knife Edge Micro Adjustable Pointer |
Download
click here to download the datasheet

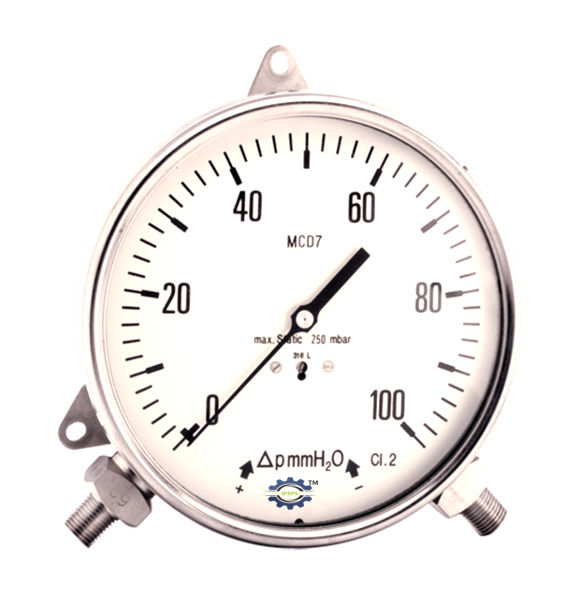

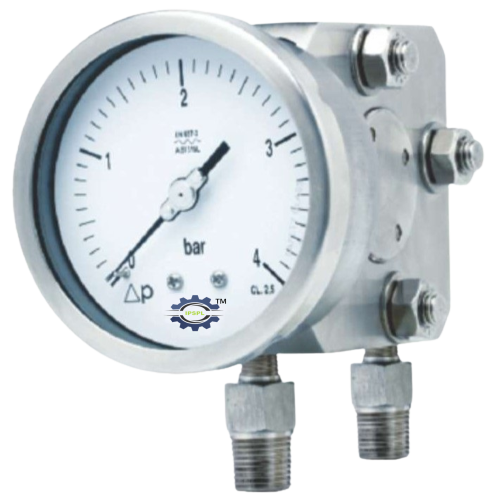

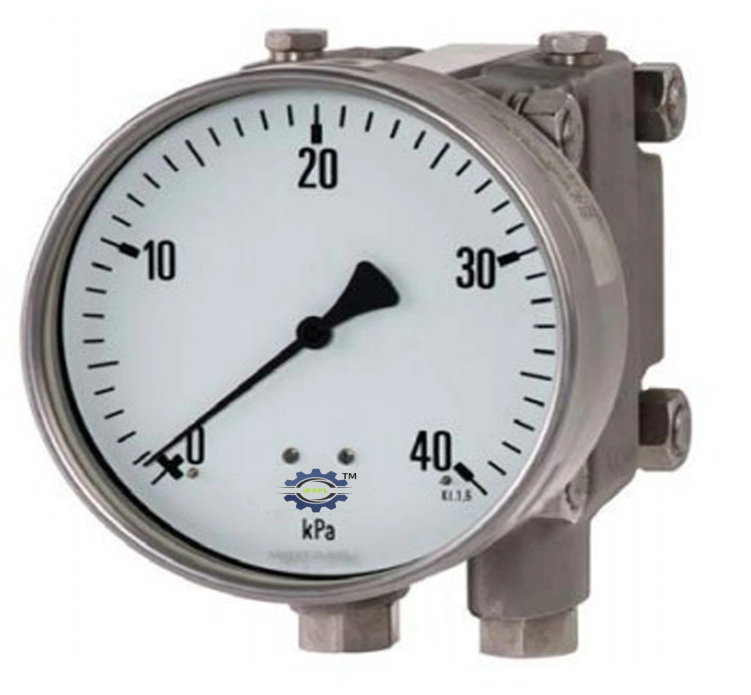

IPS-PG-08 - ALL STAINLESS STEEL DIFFERENTIAL PRESSURE GAUGE (DOUBLE DIAPHRAGM)
|
Dial Size |
DN100 / DN150 (4" / 6") |
|
Range |
0-25mbar to 0-10 Bar |
|
Accuracy |
±1.6 % / CL 1 - Ascending F.S. |
|
Mounting |
Bottom / Back |
|
Process Connection |
1/2"-BSP / NPT - Standard |
|
Ingress Protection |
IP68 |
|
Execution |
Filled / Fillable / Dry |
|
Case & Bezel |
SS316L / Monel / special alloys |
|
Body & Diaphragm |
SS304 / 316 / Aluminum |
|
Gasket |
Viton |
|
Optional |
External Zero Adjustment |
Download
click here to download the datasheet
IPS-PG-09 - ALL STAINLESS STEEL DIFFERENTIAL PRESSURE GAUGE (BELLOW)
|
Dial Size |
DN150 |
|
Range |
0-100mbar to 0-16 Bar, |
|
Accuracy |
±1% / CL 1 Acending |
|
Mounting |
Bottom / Lower Back |
|
Process Connection |
1/2"-BSP / NPT |
|
Ingress Protection |
IP65 |
|
Execution |
Fillable / Dry / Dry but fillable |
|
Body & Bellow |
SS316L, Body & Bellow TIG Welded |
|
Case & Bezel |
SS304 / 316 |
|
Optional |
External Zero Adjustment |
Download
click here to download the datasheet

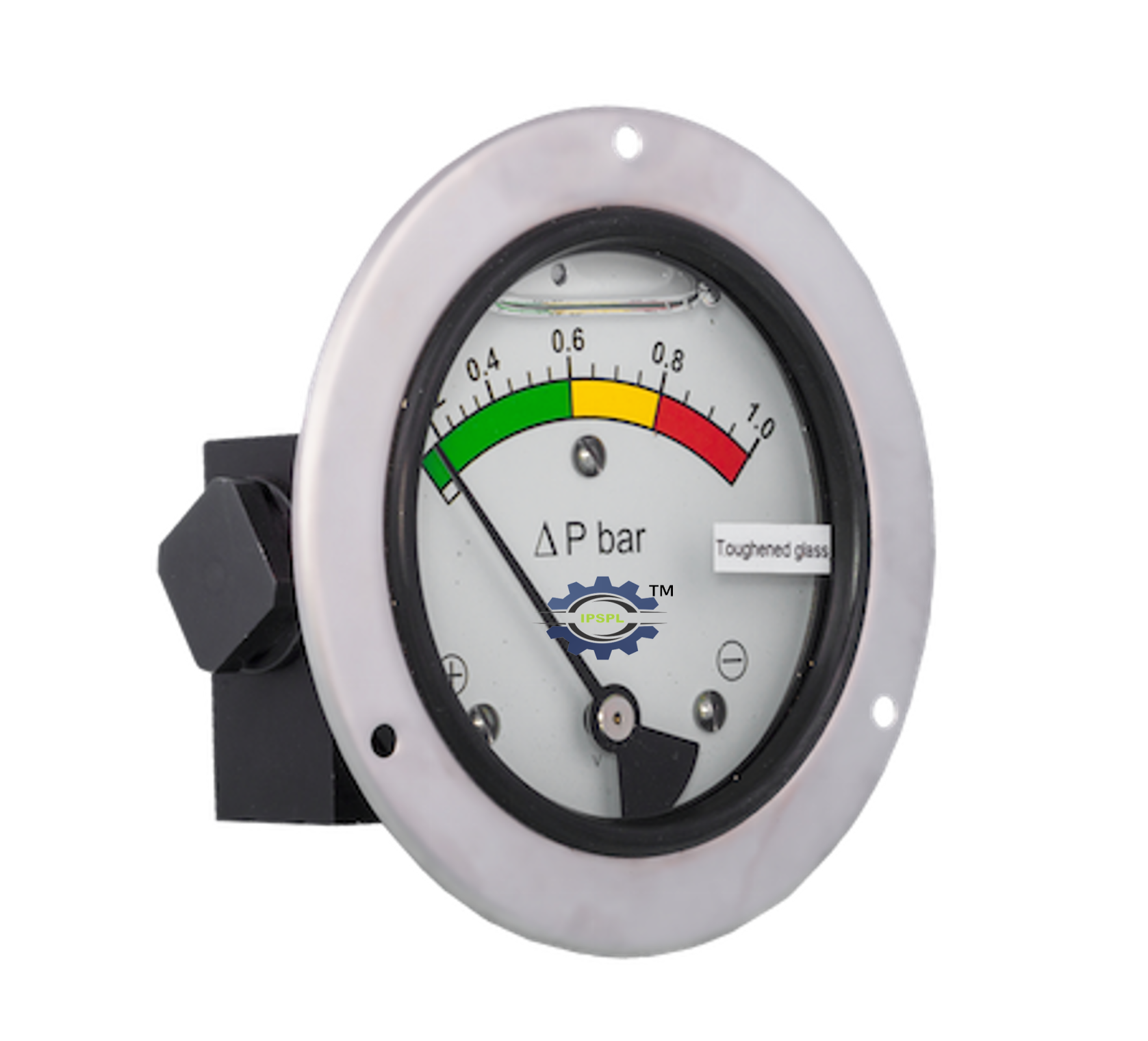

IPS-PG-10 - ALL STAINLESS STEEL DIFFERENTIAL PRESSURE GAUGE (PISTON)
|
Dial Size |
DN63 / DN100 / DN150 (2.5" / 4" / 6") |
|
Range |
0-1bar to 0-10 Bar |
|
Accuracy |
±2% / CL 2 - Ascending F.S. |
|
Mounting |
Inline / Bottom / Back Ports , Direct / Case 3 Hole Panel |
|
Process Connection |
1/4" NPT ( F) Standard |
|
Ingress Protection |
IP65 |
|
Execution |
Fillable / Dry |
|
Wetted Parts |
Body-SS316, Spring- SS302,Magnet-Ceramic, Seal - Teflon, Case -SS304, Diaphragm - Viton, Piton-SS316L |
Download
click here to download the datasheet

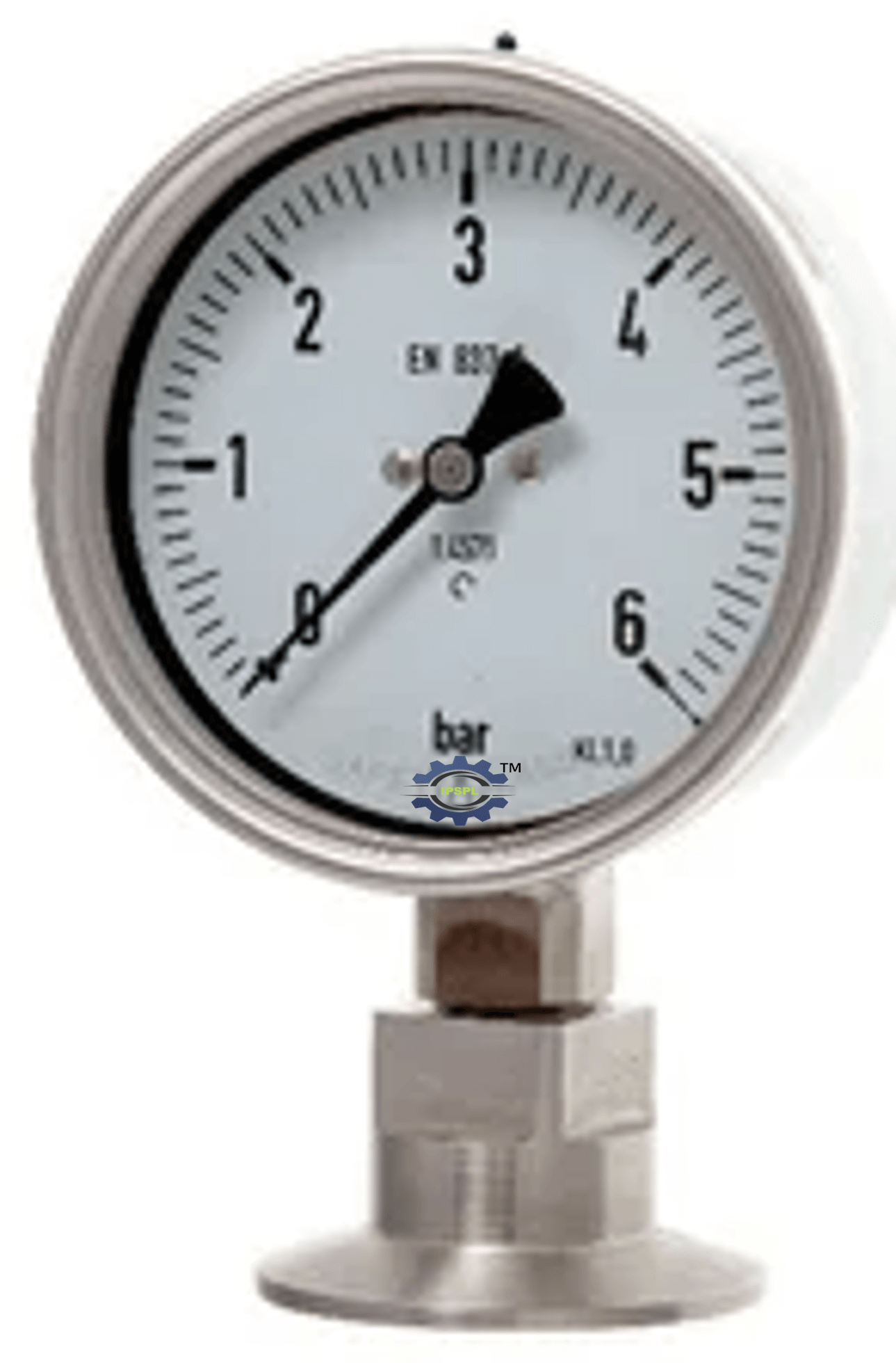

IPS-PG-11 - ALL STAINLESS STEEL SANITARY PRESSURE GAUGE
|
Dial Size |
DN50 / DN63 / DN100 / DN150, Ref. Standard : EN837-1 |
|
Range |
-1 to 0 , 0-1 to 0-40 Bar |
|
Accuracy |
±1.6% / CL 1.6 |
|
Mounting |
Bottom / Centre Back |
|
Process Connection |
1/2''….. 2.5" Triclamp Type |
|
Ingress Protection |
IP65 |
|
Execution |
Fillable / Dry / Filled |
|
Bourdon Tube & Socket |
SS316 with SS Case and Bezel |
|
Seal Filling Liquid |
Food Grade Oil / Glycerin |
Download
click here to download the datasheet

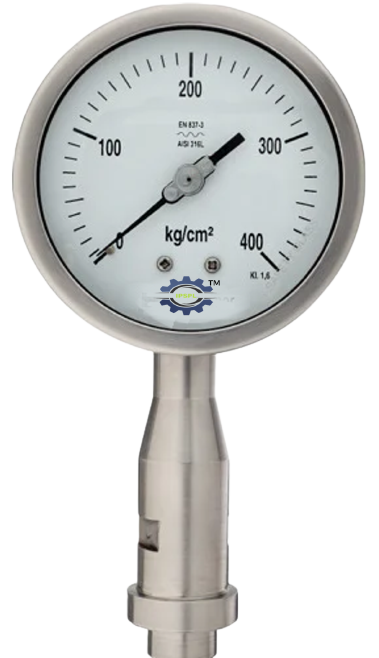

IPS-PG-12 - ALL STAINLESS STEEL HOMOGENIZER PRESSURE GAUGE
|
Dial Size |
DN100 / DN150 |
|
Range |
0-100 to 0-1000 Bar |
|
Accu. & Repeatability |
±1.6% / CL 1.6 , Ref. Standard : EN837-1 |
|
Mounting |
Bottom with standard seal / customized seal |
|
Process Connection |
Mounting Flange, Threaded Conn, Direct Connection |
|
Ingress Protection |
IP65 |
|
Execution |
Fillable / Dry Diaphragm |
|
Bourdon Tube & Socket |
SS316L - Tig Welded |
|
Case & Bezel |
SS304/316 - Socket welded with Case |
Download
click here to download the datasheet

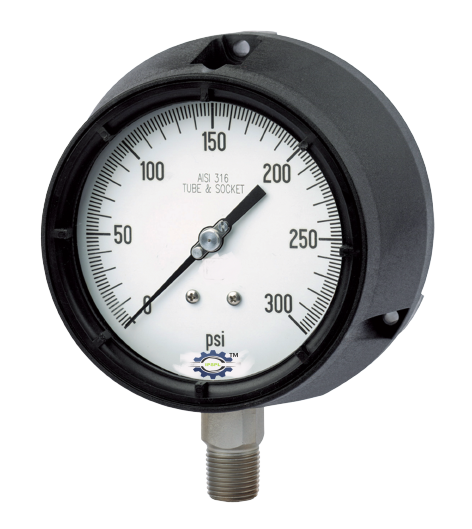

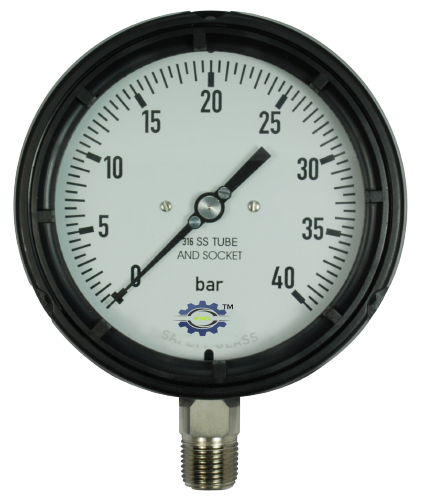

IPS-PG-13 - PHENOL CASE SOLID FRONT PRESSURE GAUGE
|
Dial Size |
DN115 |
|
Range |
-1 to 0 , 0-1 to 0-1600 Bar |
|
Accur. & Repeatability |
±0.5% / CL 0.5 |
|
Mounting |
Bottom / Lower Back |
|
Process Connection |
1/2"-BSP / NPT |
|
Ingress Protection |
IP68 |
|
Execution |
Dry |
|
Bourdon Tube & Socket |
SS316L / MONEL -TIG |
|
Case & Bezel |
PHENOLIC |
Download
click here to download the datasheet
IPS-PG-14 - THERMOPLASTIC CASE SOLID FRONT PRESSURE GAUGE
|
Dial Size |
DN115 |
|
Range |
-1 to 0 , 0-1 to 0-1600 Bar |
|
Accur. & Repeatability |
±0.5% / CL 0.5 |
|
Mounting |
Bottom / Lower Back |
|
Process Connection |
1/2"-BSP / NPT |
|
Ingress Protection |
IP68 |
|
Execution |
Dry |
|
Bourdon Tube & Socket |
SS316L / MONEL -TIG |
|
Case & Bezel |
THERMOPLASTIC |
Download
click here to download the datasheet

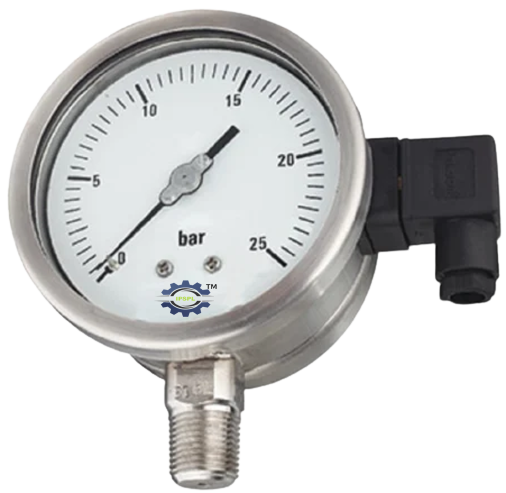

IPS-PG-15 - ALL STAINLESS STEEL SOLID FRONT SAFETY PRESSURE GAUGE WITH ELECTRIC CONTACT
|
Dial Size |
DN100 / DN150 (4" / 6") |
|
Range |
-1 to 0 , 0-1 to 0-2500 Bar |
|
Accuracy |
±1% / CL 1 F.S. |
|
Mounting |
Bottom / Lower Back |
|
Process Connection |
1/2"-BSP / NPT Standard |
|
Ingress Protection |
IP68 |
|
Execution |
Fillable / Dry / Filled |
|
Bourdon Tube & Socket |
SS316L / MONEL -TIG WELDING |
|
Welded Case & Bezel |
SS304 / SS316 / Aluminium Die Cast |
|
Optional |
External Zero Adjustment, 0.5 % Acc., Over Pressure, Transmitter |
|
Electric Wiring System |
2 Wire DIN Connector |
|
Supply |
24 VDC |
|
Output |
4 - 20 mA |
Download
click here to download the datasheet

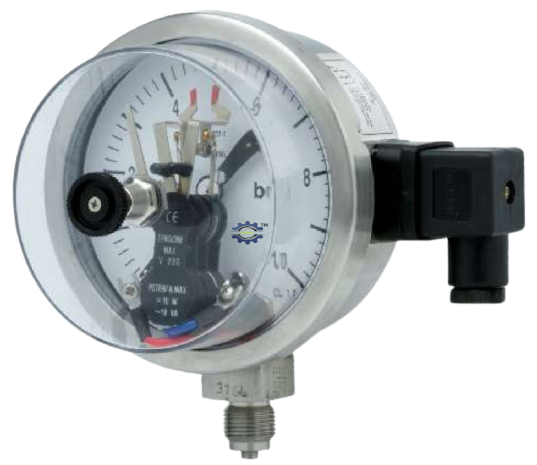

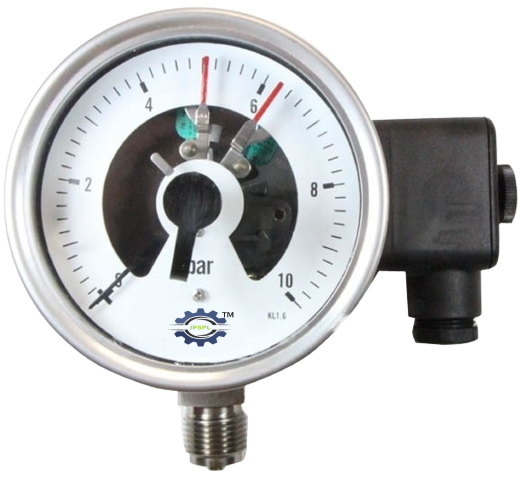

IPS-PG-16 - ALL STAINLESS STEEL ELECTRIC CONTACT PRESSURE GAUGE (DOOM TYPE WINDOW)
|
Dial Size |
DN100 / DN150 (4" / 6") |
|
Range |
-1 to 0 , 0-1 to 0-1600 Bar |
|
Accuracy |
±1% / CL 1.0 F.S. |
|
Mounting |
Bottom / Lower Back |
|
Process Connection |
1/2"-BSP / NPT Standard |
|
Ingress Protection |
IP65 |
|
Execution |
Dry / Fillable |
|
Electric Contact |
Magnetic Contacts, NO / NC, NO NO, NC NC |
|
Bourdon Tube & Socket |
SS316L / Monel - TIG welded |
|
Welded Case & Bezel |
SS304 / 316 |
Download
click here to download the datasheet
IPS-PG-17 - ALL STAINLESS STEEL PRESSURE GAUGE WITH MICRO SWITCH
|
Dial Size |
DN63 / DN100 / DN150 |
|
Range |
0 TO 600 Bar |
|
Accuracy |
±1% / CL 1.0 F.S. for 100 & 150 mm and ±1.6% / CL 1.0 F.S for 63 mm |
|
Mounting |
Bottom, Lower Back & Center Back |
|
Process Connection |
1/4" / 1/2 BSP / NPT (M) |
|
Ingress Protection |
IP 65 |
|
Execution |
Dry |
|
Electric Contact |
1 SPDT Micro Switch (250 V AC / 15 Amp, 220 V DC / 0.2 Amp.) |
|
Bourdon Tube & Socket |
SS316L / Monel - TIG welded |
|
Welded Case & Bezel |
SS304 / 316 |
|
Window |
Sheet Glass |
|
Optional |
2 SPDT, Silver & Gold Contact Micro Switch |
Download
click here to download the datasheet

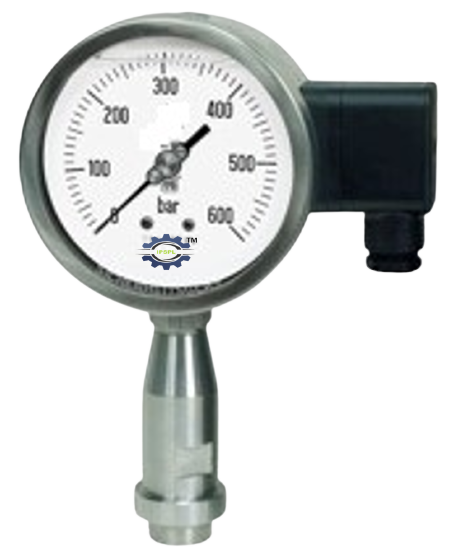

IPS-PG-18 - ALL STAINLESS STEEL HOMOGENIZER PRESSURE GAUGE WITH TRANSMITTER
|
Dial Size |
DN100 / DN150 |
|
Range |
0-100 to 0-1000 Bar |
|
Accuracy & Repeatability |
±1.6% / CL 1.6 , Ref. Standard : EN837-1 |
|
Mounting |
Bottom with standard seal / customized seal |
|
Process Connection |
Mounting Flange, Threaded Conn, Direct Connection |
|
Ingress Protection |
IP65 |
|
Execution |
Fillable / Dry Diaphragm |
|
Bourdon Tube & Socket |
SS316L - Tig Welded |
|
Case & Bezel |
SS304/316 - Socket welded with Case |
|
Electric Wiring System |
2 Wire DIN Connector |
|
Supply |
24 VDC |
|
Output |
4 - 20 mA |
Download
click here to download the datasheet

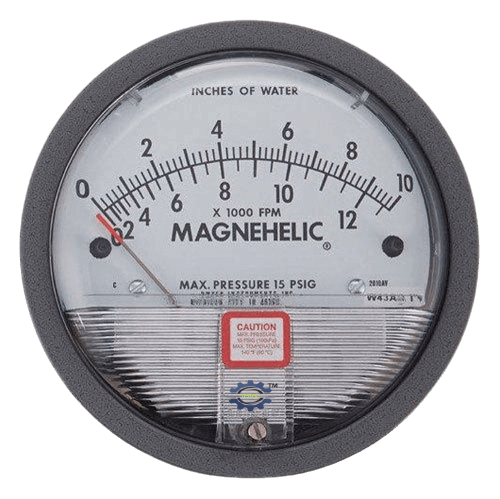

IPS-PG-19 - MAGNELIC DIFFERENTIAL PRESSURE GAUGE FOR LOW PRESSURE
|
Dial Size |
DN100 |
|
Range |
0-5mmwc to 600 mmwc |
|
Accuracy |
±2 % / CL 2 - Acending |
|
Mounting |
Side / Back |
|
Process Connection |
1/8'' (F) NPT - 2 NOS |
|
Ingress Protection |
IP54 |
|
Execution |
Dry |
|
Case & Bezel |
Die Cast Aluminum |
|
Sensing Element |
Silicon Rubber Diaphragm |
Download
click here to download the datasheet

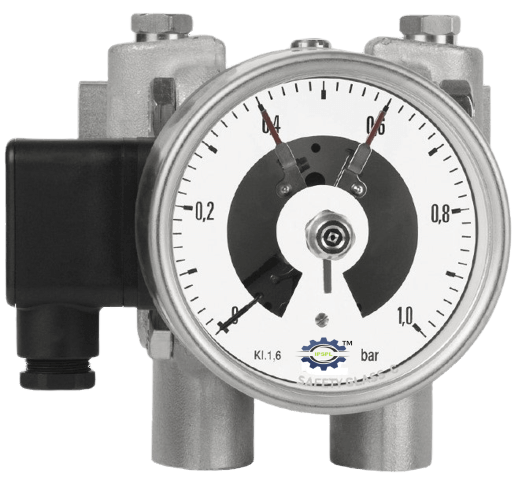

IPS-PG-20 - ALL STAINLESS STEEL DIFFERENTIAL PRESSURE GAUGE WITH OUTPUT SIGNAL (DOUBLE & SINGLEE DIAPHRAGM)
|
Dial Size |
DN100 / DN150 (4" / 6") |
|
Range |
0-25mbar to 0-10 Bar |
|
Accuracy |
±1.6 % / CL 1 - Ascending F.S. |
|
Mounting |
Bottom / Back |
|
Process Connection |
1/2"-BSP / NPT - Standard |
|
Ingress Protection |
IP68 |
|
Execution |
Filled / Fillable / Dry |
|
Case & Bezel |
SS316L / Monel / special alloys |
|
Body & Diaphragm |
SS304 / 316 / Aluminium |
|
Gasket |
Viton |
|
Electric Wiring System |
2 Wire DIN Connector |
|
Supply |
24 VDC |
|
Output |
4 - 20 mA |
|
Optional |
External Zero Adjustment |
Download
click here to download the datasheet
IPS-PG-21 - ALL STAINLESS STEEL DIFFERENTIAL PRESSURE GAUGE (SINGLE DIAPHRAGM)
|
Dial Size |
DN100 / DN150 (4" / 6") |
|
Range |
0-25mbar to 0-10 Bar |
|
Accuracy |
±1.6 % / CL 1 - Ascending F.S. |
|
Mounting |
Bottom / Back |
|
Process Connection |
1/2"-BSP / NPT - Standard |
|
Ingress Protection |
IP68 |
|
Execution |
Filled / Fillable / Dry |
|
Case & Bezel |
SS316L / Monel / special alloys |
|
Body & Diaphragm |
SS304 / 316 / Aluminum |
|
Gasket |
Viton |
|
Optional |
External Zero Adjustment, Electric Contact |
Download
click here to download the datasheet

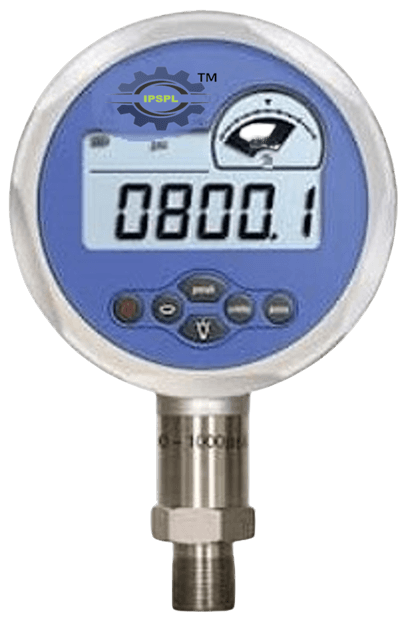

IPS-PG-22 - DIGITAL PRESSURE GAUGE
|
Display |
LCD with backlight, pressure values displayed up to 5 digits with 15 mm character height and analogue dial graph 25 mm wide |
|
Ranges |
Vacuum to 2500 Bar |
|
Accuracy |
0.5 % of FS |
|
Over Pressure |
150% of FS |
|
Electric Protection |
Anti electromagnetic interference design |
|
Supply |
Battery 2 (AAA) |
Download
click here to download the datasheet

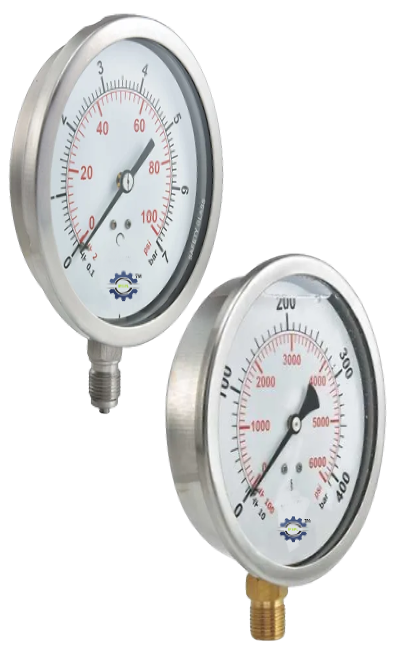

IPS-PG-23 - ECO MODEL COMPACT SIZE (BEZEL TYPE)
|
Dial Size |
DN 63 / DN80 / DN100 (2.5" / 3.1" / 4") |
|
Range |
-1 to 0 , 0-1 to 0-1000 Bar |
|
Accuracy |
±1.6% OF F.S. |
|
Mounting |
Bottom / Centre Back |
|
Process Connection |
1/4" / 3/8" 1/2"-BSP / NPT Standard |
|
Ingress Protection |
IP65 |
|
Execution |
Dry / Fillable |
|
Bourdon Tube & Socket |
SS316L / Brass |
|
Welded Case & Bezel |
SS304 / Brass |
Download
click here to download the datasheet
IPS-PG-24 - ALL STAINLESS STEEL ELECTRIC CONTACT PRESSURE GAUGE (HIGH VERSION CASE)
|
Dial Size |
DN100 / DN150 (4" / 6") |
|
Range |
-1 to 0 , 0-1 to 0-1600 Bar |
|
Accuracy |
±1% / CL 1.0 F.S. |
|
Mounting |
Bottom / Lower Back |
|
Process Connection |
1/2"-BSP / NPT Standard |
|
Ingress Protection |
IP65 |
|
Execution |
Dry / Fillable |
|
Electric Contact |
Magnetic Contacts, NO / NC, NO NO, NC NC |
|
Bourdon Tube & Socket |
SS316L / Monel - TIG welded |
|
Welded Case & Bezel |
SS304 / 316 |
|
Window |
Standard Safety Glass |
Download
click here to download the datasheet

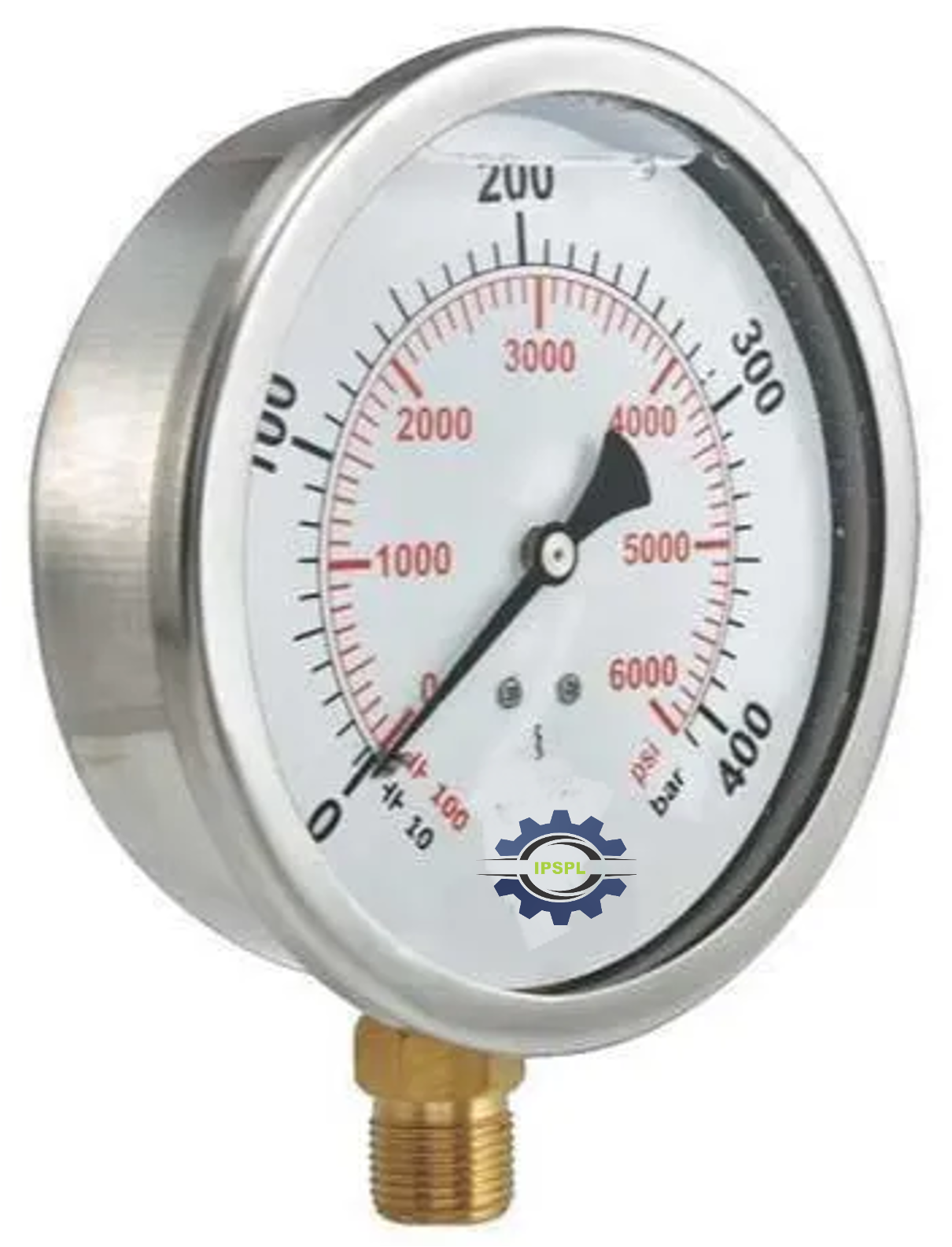

IPS-PG-25 - ECO MODEL COMPACT SIZE (ROLLING OR CRIMPED TYPE)
|
Dial Size |
DN 63 / DN80 / DN100 (2.5" / 3.1" / 4") |
|
Range |
-1 to 0 , 0-1 to 0-1000 Bar |
|
Accuracy |
±1.6% OF F.S. |
|
Mounting |
Bottom / Centre Back |
|
Process Connection |
1/4" / 3/8" 1/2"-BSP / NPT Standard |
|
Ingress Protection |
IP65 |
|
Execution |
Dry / Fillable |
|
Bourdon Tube & Socket |
SS316L / Brass |
|
Welded Case & Bezel |
SS304 / Brass |
Download
click here to download the datasheet
